User manual C4 – C6
61

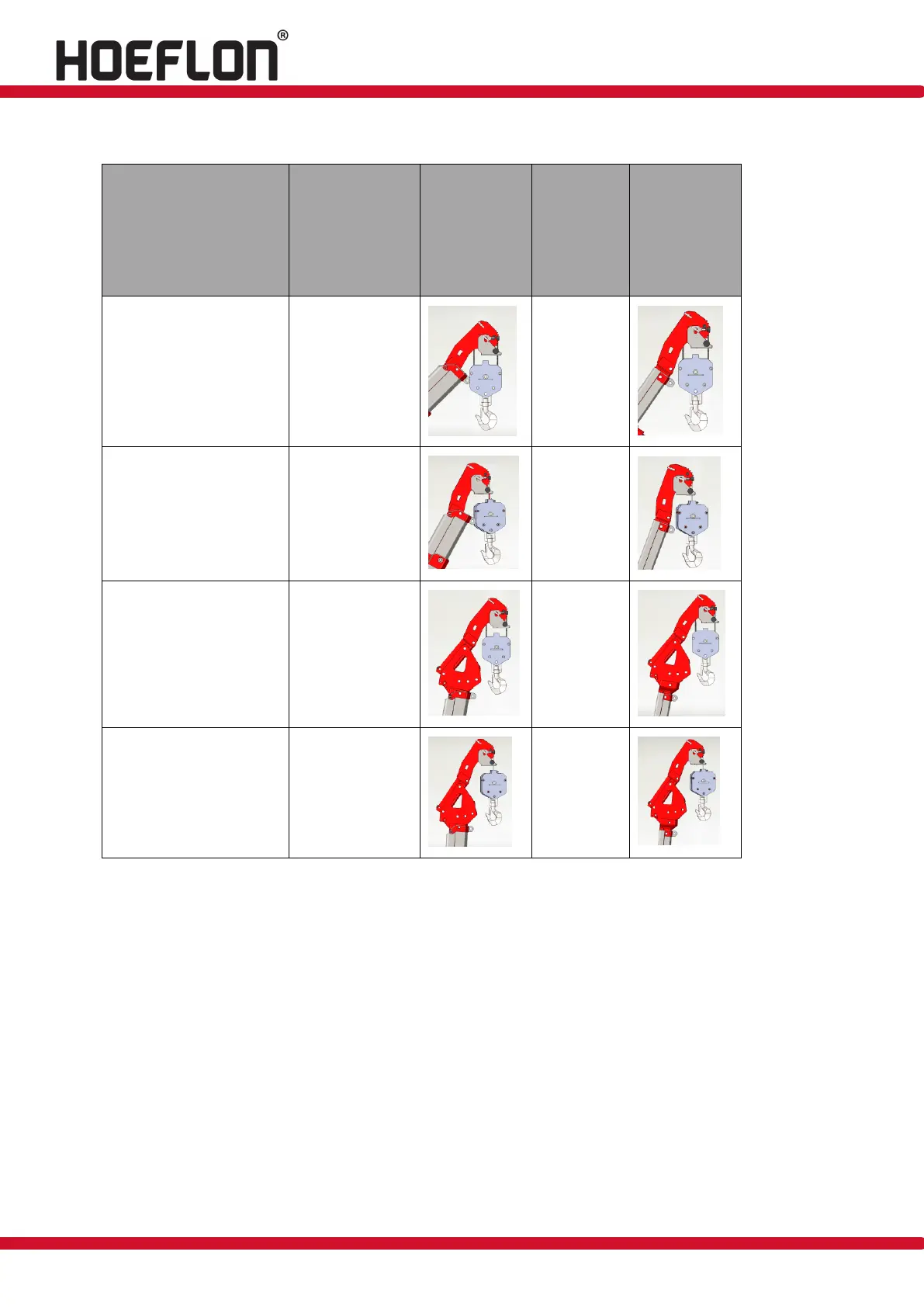

Maximum angles.
Winch head positions
Maximum
possible angle
of main boom
from horizontal
Illustrations
main boom
max. position
Maximum
possible
angle of jib
from
horizontal
Illustrations
jib max.
position
Winch head with lifting
weight reeved
≤ 45°
≤ 55°
Winch head with lifting
weight and single cable
≤ 60°
≤ 70°
Winch head with 30°
section in upper hole
with lifting weight
reeved
≤ 80°
≤ 80°
Winch head with 30°
section in upper hole
with lifting weight and
single cable
≤ 85°
≤ 85°
