Select [5. ALARM] on the menu.
Set each item of [1.ARR/ANCHOR ALARM]
[2.OFF COURSE ALARM].(page 54)
[Alarm marker]
Alarm marker is displayed when waypoint navigation or route navigation is set within a
circle with specified distance from a waypoint or route point and arrival or anchor alarm
is set at the same time.
[Course Line]
Course line is a straight line (fixed) which is connected from own boat to it’s waypoint
when waypoint navigation is set.
When the power key is pressed OFF, it is canceled.
1
2
Please refer to [HOW TO OPERATE MENU] ( page12 ) for operation of menu.
Please refer to [OPERATION OF FISH FINDER](page 69,70) for Water temp. alarm,
Fish alarm and Depth alarm.

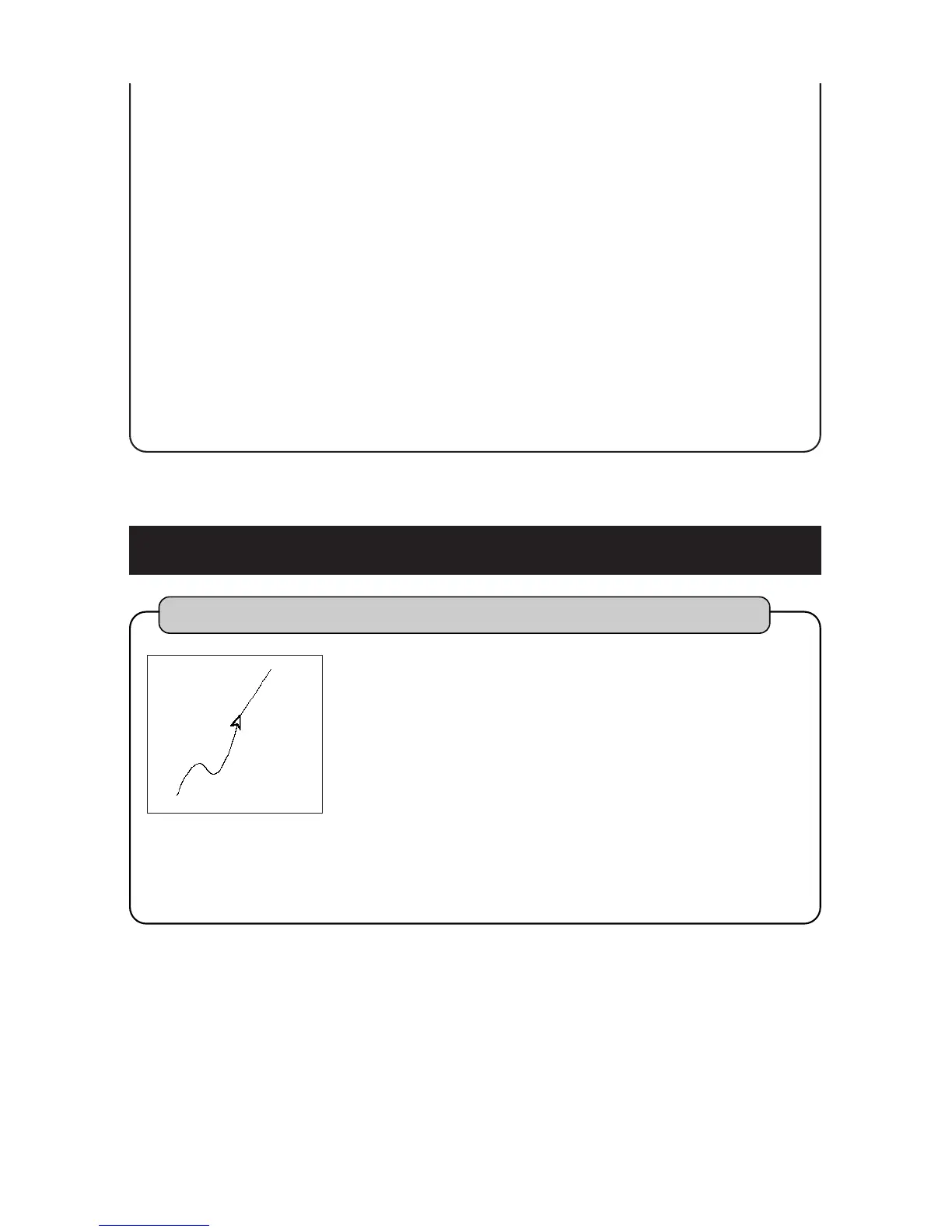

OWN BOAT’S VECTOR AND COLOR OF OWN BOAT’S MARK
Own boat’s vector and color of own boat’s mark
[Own boat’s vector]
It indicates own boat’s course. But it does not
indicate bow’s direction.
Color of own boat’s vector is same as own boat’s
mark’s.
Select [6.READOUT SETTING][3.OWN BOAT
READOUT][2.OWN BOAT VECTOR] on the
menu.
Set item of [2. OWN BOAT VECTOR].
1
2
own boat’s
mark
Own boat’s
vector
