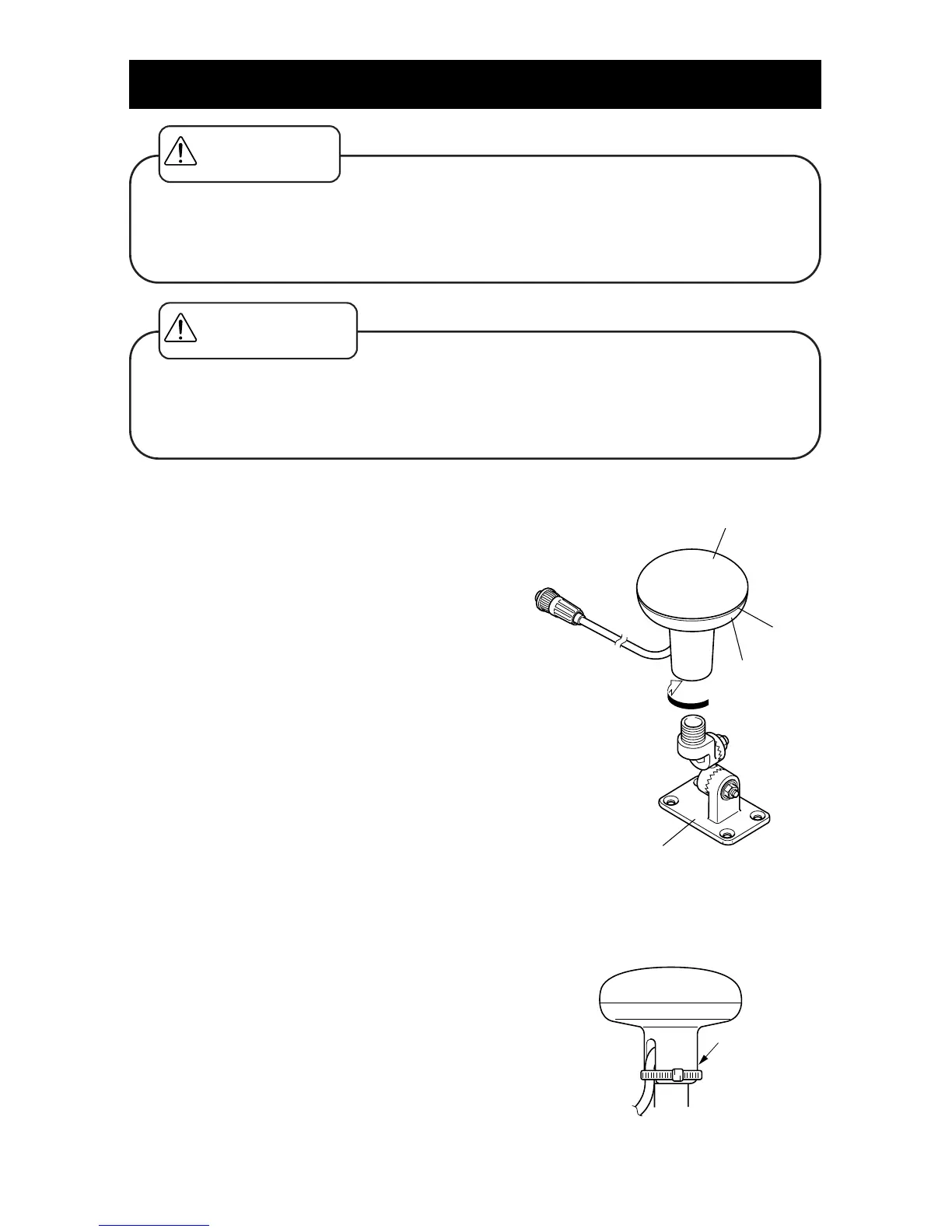

MOUNTING THE GPS ANTENNA
86
●Work on the boat is too unstable and risky.
Mounting and maintenance of GPS antenna should be done after you land and fix
the boat. Unless you keep it, human damage resulting in death or serious wound
will occur.
●Do not install in a simple method.
It causes to the accident like injury.
※Please make sure to mount correctly according to [MOUNTING THE GPS
ANTENNA].
In case of using turnable DGPS
antenna stand
Procedure of mounting
1．＜
Connection of antenna and turnable antenna stand
＞
（1）Pull out cable from aluminum base to mount
turnable antenna stand into GSP receiver or
DGPS receiver.
（2）Rotate clockwise and mount turnable antenna
stand into aluminum base of GSP receiver or
DGPS receiver. Do not grasp joint between
redome and aluminum base.
（3）Fix cable fastening with tie-wrap on the right
figure to prevent from breaking cable caused
from vibration.
