In case of using Screw Adapter
GPS receiver or DGPS receiver has screw on it’s bottom (aluminum base).
It can be mounted on mast or other place with connecting screw adapter into
aluminum base. Cable can be guided outside from ditch on aluminum base.
（1）Pull out cable from aluminum base to connect screw adapter with GPS receiver or DGPS
receiver.
（2）Connect screw adapter with aluminum base of GPS receiver or DGPS receiver. Grasp
aluminum base and turn it clockwise on below figure. Do not grasp joint between redome
and aluminum base.
Do not put the power on joint. Grasp base and turn.

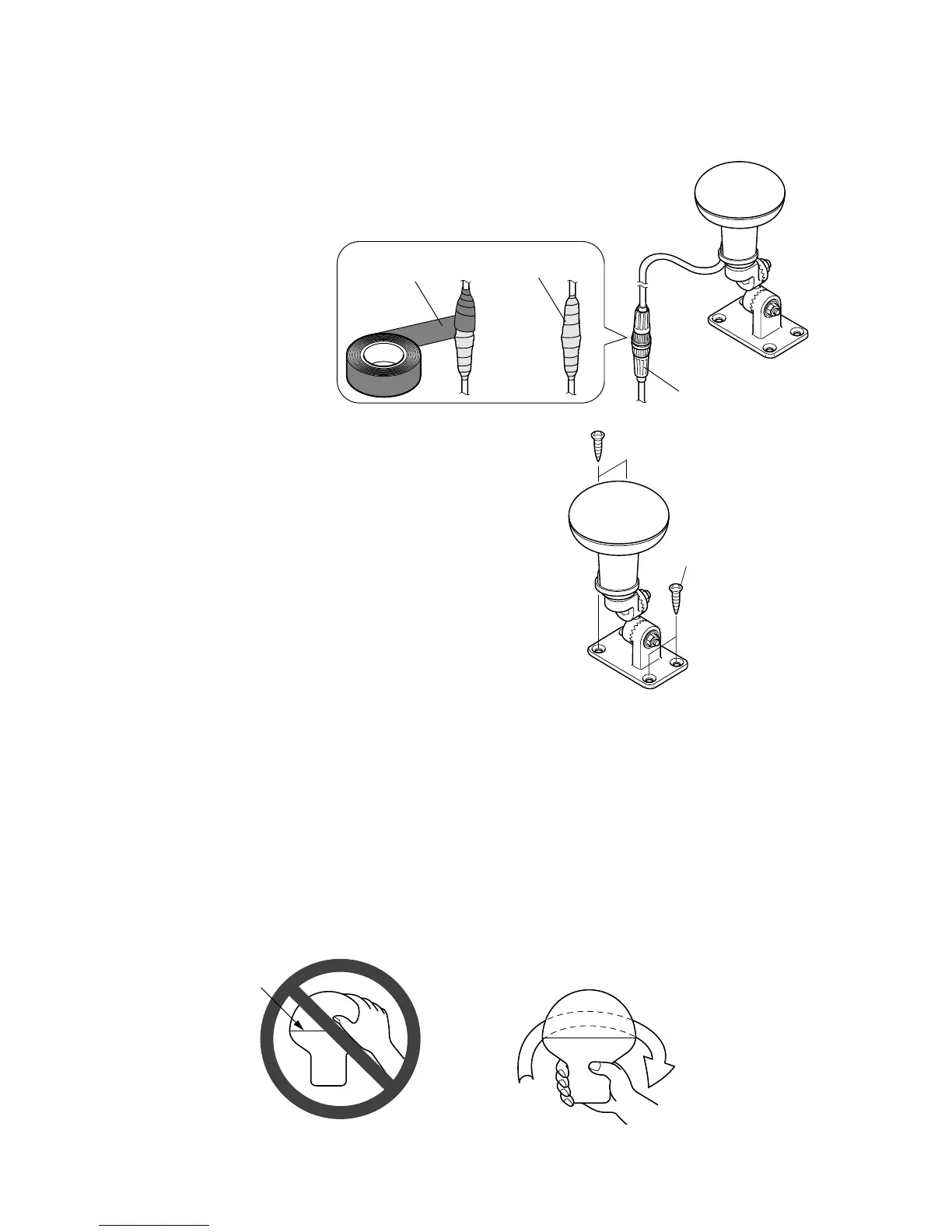

（4）Connect extension cable with cable of GPS
receiver or DGPS receiver. Wind joint with
self-melt tape and then vinyl tape to prevent
from coming water in.
2．＜Turnable DGPS antenna stand＞
（1）Fix turnable antenna stand with four round
pan-head tapping screws (M6X20, supplied).
