Honda Electronics HE-6801 - How to See the Display of Fish Finder Mode

HOW TO SEE THE DISPLAY OF FISH FINDER MODE
62
Own Boat’s
Position
Latitude
Longitude
High Frequency
Depth
(Displayed Unit)
Low Frequency
2nd Reflection Depth
Frequency
Depth Unit
Gain Bar
Water Temp.
Bottom


0
10
20
30
40
50
10
20
30
40
50
Fish School
Differential Mark

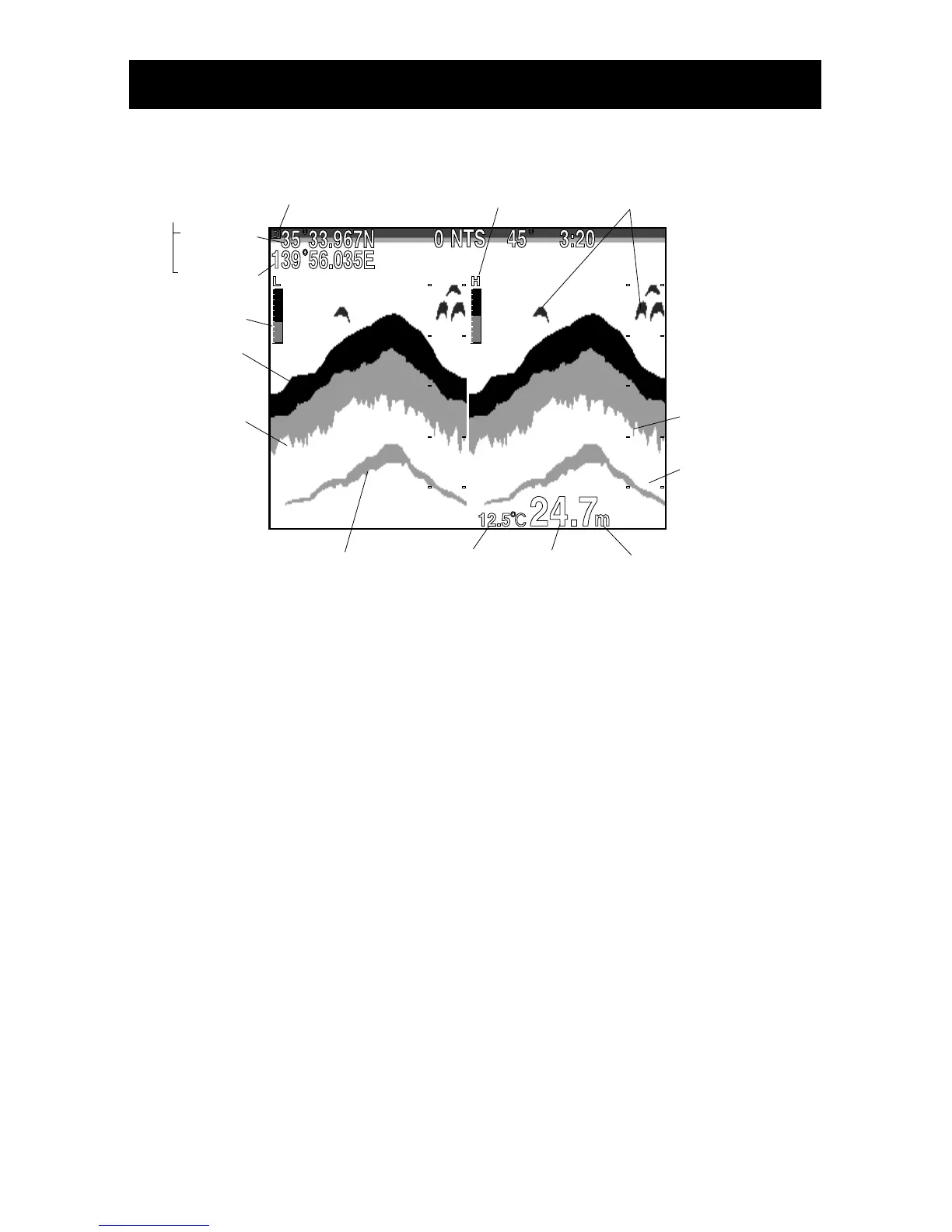

Example of fish finder display (In case of showing fish finder display only)
Frequency Indication
When unit is single frequency version: No indication
When unit is dual frequency version: L: Low freq. H: High freq.
However, in case of parallel display of dual frequency, position where “Frequency” is
indicated changes. (Refer to “TO SHOW DUAL FREQUENCY MODE” (page 71).)
Water Temp. Indication
It is indicated when optional water temp. sensor is connected.
Differential mark is indicated when it is connected with differential GPS. (only DGPS).
