Chapter 2 – Set Up the Printer
18 6824 Mobile Full Page Printer User Manual

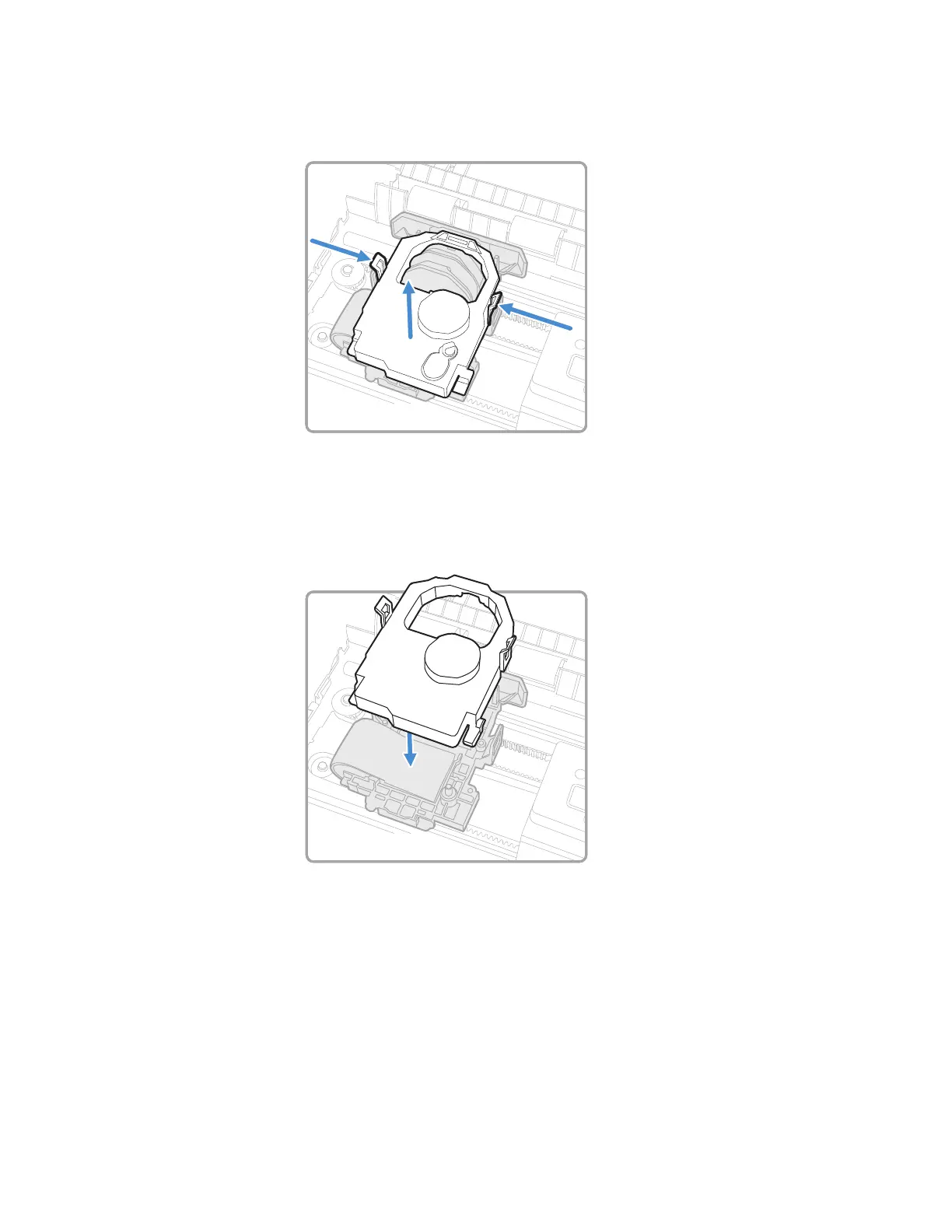

3 Squeeze the tabs on the sides of the ribbon cartridge and lift the cartridge out
of the printhead.
4 Check the new ribbon cartridge to make sure the ribbon is straight and even.
Turn the green knob clockwise to remove any slack.
5 Position the new ribbon cartridge over the printhead. Line up the side tabs
with the holders on the printhead.
6 Squeeze the side tabs and press the cartridge down into the printhead.
7 Release the tabs and gently rock the cartridge from side to side to make sure
the tabs are seated in the clamps.
