Honeywell E3 Series - 1.4 E3 Remote Annunciator, E3 BB-NGA-FLUSH Cabinet Ordering

10 E3 Series and S3 Series Building Blocks Reference Guide — P/N 9021-60724:A4 02/20/2019
Basic E3 Series Remote Configurations E3 Remote Annunciator, E3BB-NGA-FLUSH Cabinet Ordering Information
1.4 E3 Remote Annunciator, E3BB-NGA-FLUSH Cabinet
Ordering Information
The E3BB-NGA-FLUSH model is a single module, flush remote annunciator cabinet that houses
the NGA. Table 1.4.1 lists the components that can be ordered for the E3 Series Remote Annuncia-
tor E3BB-NGA-FLUSH.

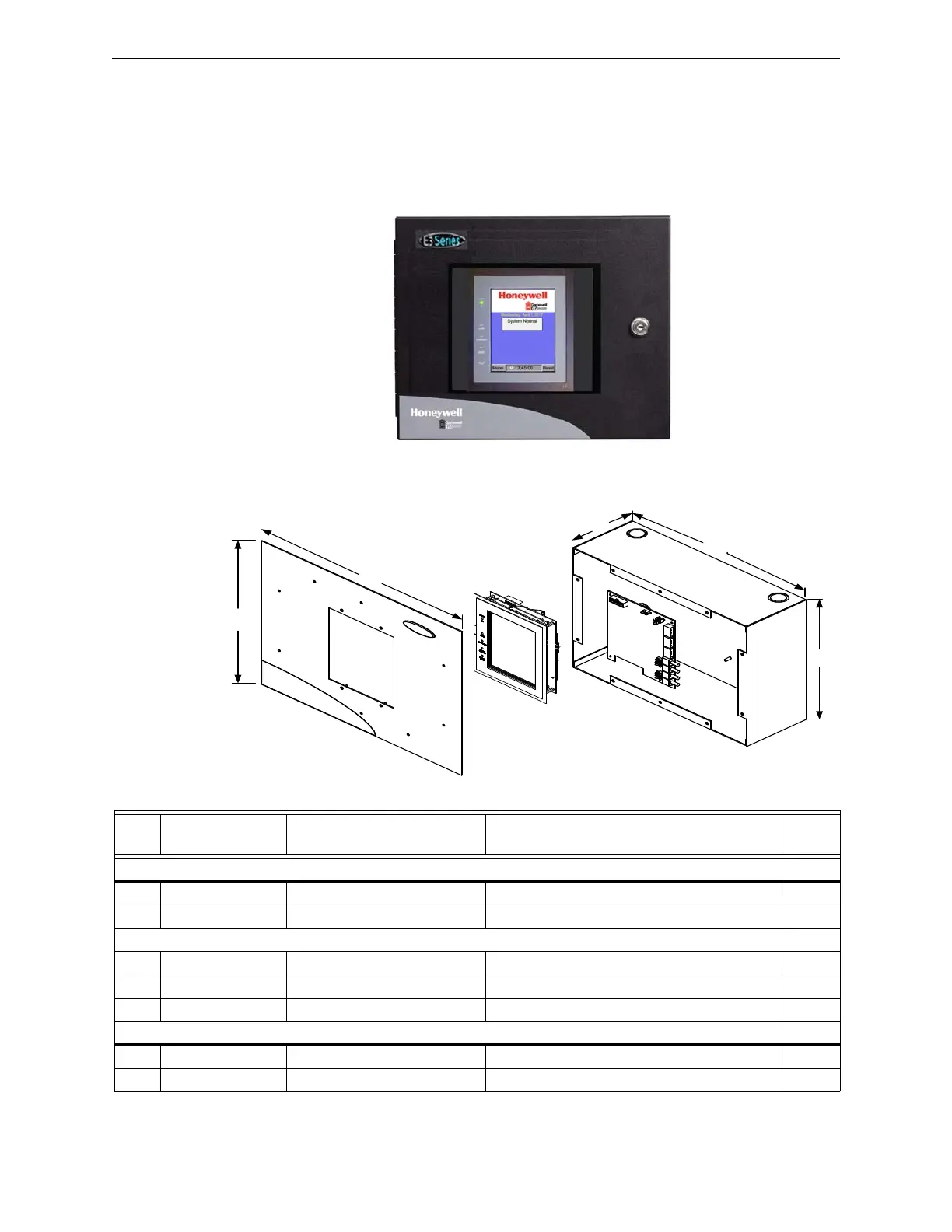

Figure 1.4.1 E3 Series Remote Annunciator with LCD-E3 Display
Figure 1.4.2 shows the E3BB-NGA-FLUSH cabinet configuration.
Figure 1.4.2 E3 Remote Annunciator E3BB-NGA-FLUSH Cabinet Configuration
R
P
T
-
E
3
-
U
T
P
15 ¼”
12”
10”
13 1/4”
4
1
/
2
”
N
G
A
Qty Part Number Model Number Description
List
Price
Note: X represents the required components.
Cabinet Dimensions:
1 E3BB-NGA-FLUSH 13 1/4”W x 10”H x 4 1/2”D Flush Enclosure, black,
Modules
NGA NGA Annunciator Network Graphic Annunciator (2nd Generation)
X 1100-0505 NGA Annunciator Network graphic Annunciator (1st Generation)
RPT-E3-UTP Network repeater Network repeater, unshielded twisted-pair
Optional Components
FSL-E3 Single mode Fiber loop module, Single mode
FML-E3 Multi mode Fiber loop module, Multi mode
Table 1.4.1 E3 Remote Annunciator E3BB-NGA-FLUSH Cabinet Ordering Information
