2.2 E3 Series “B” Size Cabinet Ordering Information
The E3 Series “B” Size Cabinet is used to house the components that support the E3 Series Fire
Evacuation System. Figure 2.2.1 illustrates the E3 Series, “B” Size cabinet configuration.
Table 2.2.1 lists the E3 Series, “B” Size cabinet ordering information.

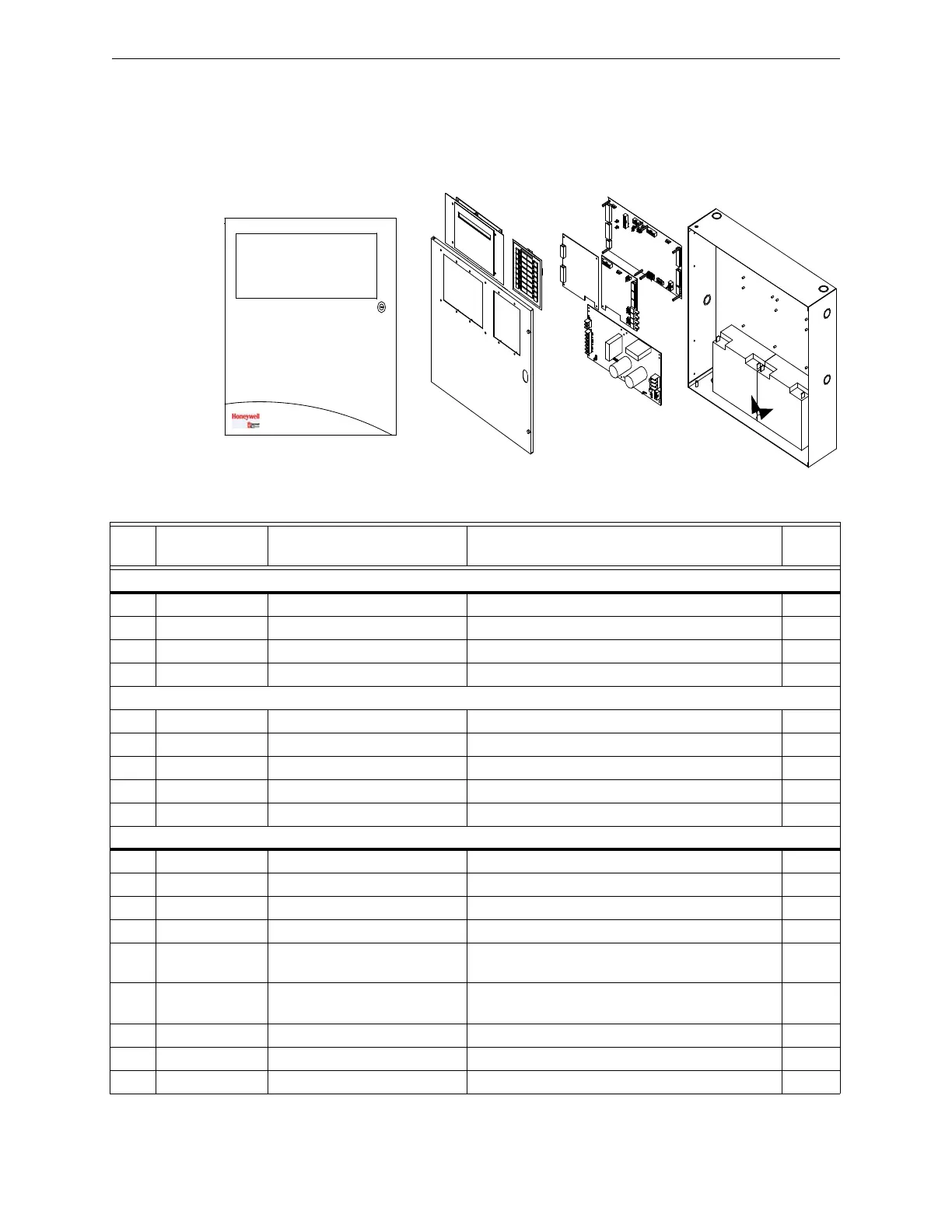

Figure 2.2.1 E3 Series “B” Size Cabinet Configuration
CABINET B
B
A
T
T
E
R
I
E
S
C
A
B
I
N
E
T
B
,
I
N
N
E
R
D
O
O
R
A
S
M
-
1
6
L
C
D
-
E
3
K
E
Y
P
A
D
D
A
C
T
-
E
3
R
P
T
-
E
3
P
M
-
9
/
P
M
-
9
G
I
L
I
-
M
B
-
E
3
/
I
L
I
9
5
-
M
B
-
E
3
Qty Part Number Model Number Description
List
Price
Note: X represents required components.
Cabinet Dimensions:
X E3BB-BB 19 3/8”W X 19 3/8”H X 4 1/2”D E3 Enclosure, Black, “B” Size
E3BB-RB 19 3/8”W X 19 3/8”H X 4 1/2”D E3 Enclosure, Red, “B” Size
X E3ID2-B Inner Door Inner Door, 2 Slot, “B” Size
Modules
X LCD-E3 Display LCD Keypad Display
X PM-9 Power Supply 9 Ampere Power Supply
ILI-MB-E3 System Sensor Intelligent Loop Interface, Mother Board
ILI95-MB-E3 Apollo Sensor Intelligent Loop Interface, Mother Board
X 2-Batteries Maximum 18 AH Capacity
Optional Components
1100-0450 Cover Plate Single Size Inner Door Blank Plate
1100-0455 Switch Module ASM-16 Programmable Switch Module (max-1)
DACT-E3 DACT Digital Alarm Communication Transmitter
RPT-E3-UTP Networking Card Network Repeater, Unshielded Twisted-Pair
FSL-E3 Fiber Networking Fiber Network Module, Single-Mode Fiber, 1
Channel
FML-E3 Fiber Networking Fiber Network Module, Multi-Mode Fiber, 1
Channel
90518 7 A/H Seismic 7 A/H Seismic Battery Bracket Kit
90520 18 A/H Seismic 18 A/H Seismic Battery Bracket Kit
E3-TRIMKIT-B E3 Cabinet B, Trim Rings
Table 2.2.1 E3 Series “B” Cabinet Ordering Information
