E3 Series and S3 Series Building Blocks Reference Guide — P/N 9021-60724:A4 02/20/2019 9
E3 Series Remote Annunciator, E3BB-FLUSH-LCD Cabinet Ordering Information Basic E3 Series Remote Configurations
1.3 E3 Series Remote Annunciator, E3BB-FLUSH-LCD
Cabinet Ordering Information
The E3BB-FLUSH-LCD model is a single module flush remote annunciator cabinet that houses
either the LCD-E3 or the LCD-SLP. Table 1.3.1 lists the components that can be ordered for the E3
Series Remote Annunciator E3BB-FLUSH-LCD cabinet.

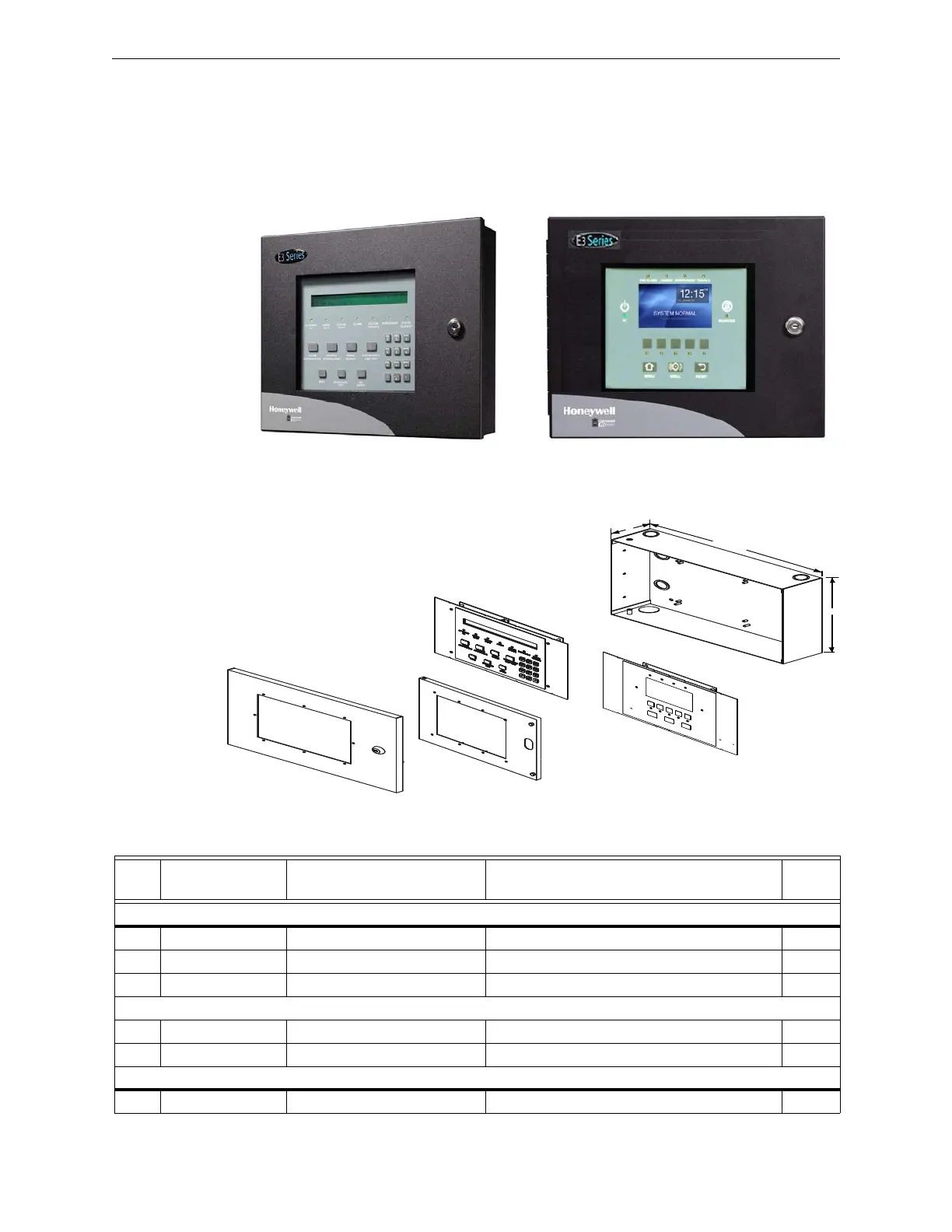

Figure 1.3.1 E3 Series Remote
Annunciator with LCD-E3 Display
Figure 1.3.2 E3 Remote Annunciator
with LCD-SLP
Figure 1.3.3 shows the E3BB-FLUSH-LCD cabinet installation configuration.
Figure 1.3.3 E3 Remote Annunciator E3BB-FLUSH-LCD Cabinet Configuration
10
L
C
D
-
E
3
L
C
D
-
S
L
P
4
½
”
1
3
1
/
4
”
Qty Part Number Model Number Description
List
Price
Note: X represents the required components.
Cabinet Dimensions:
X E3BB-FLUSH-LCD 13 1/4”W x 10”H x 4 1/2”D Flush Enclosure, black, with key lock
Modules
X LCD-SLP Display LCD Touch screen display unit
LCD-E3 Display LCD keypad display
Optional Components
Table 1.3.1 E3 Remote Annunciator E3BB-FLUSH-LCD Cabinet Ordering Information
