26 E3 Series and S3 Series Building Blocks Reference Guide — P/N 9021-60724:A4 02/20/2019
Basic E3 Series In-Building Mass Notification LOC Configurations E3 Series LOC-TEL Local Operating Console Ordering
4.2 E3 Series LOC-TEL Local Operating Console Ordering
Information
The E3 Series LOC-TEL Local Operating Console is used to house the components that support the
remote audio modules of the E3 Series Combined Fire/Mass Notification System. Figure 4.2.1
illustrates the E3 Series LOC Local Operating Console configuration. Table 4.2.1 lists the E3
Series LOC Local Operating Console ordering information

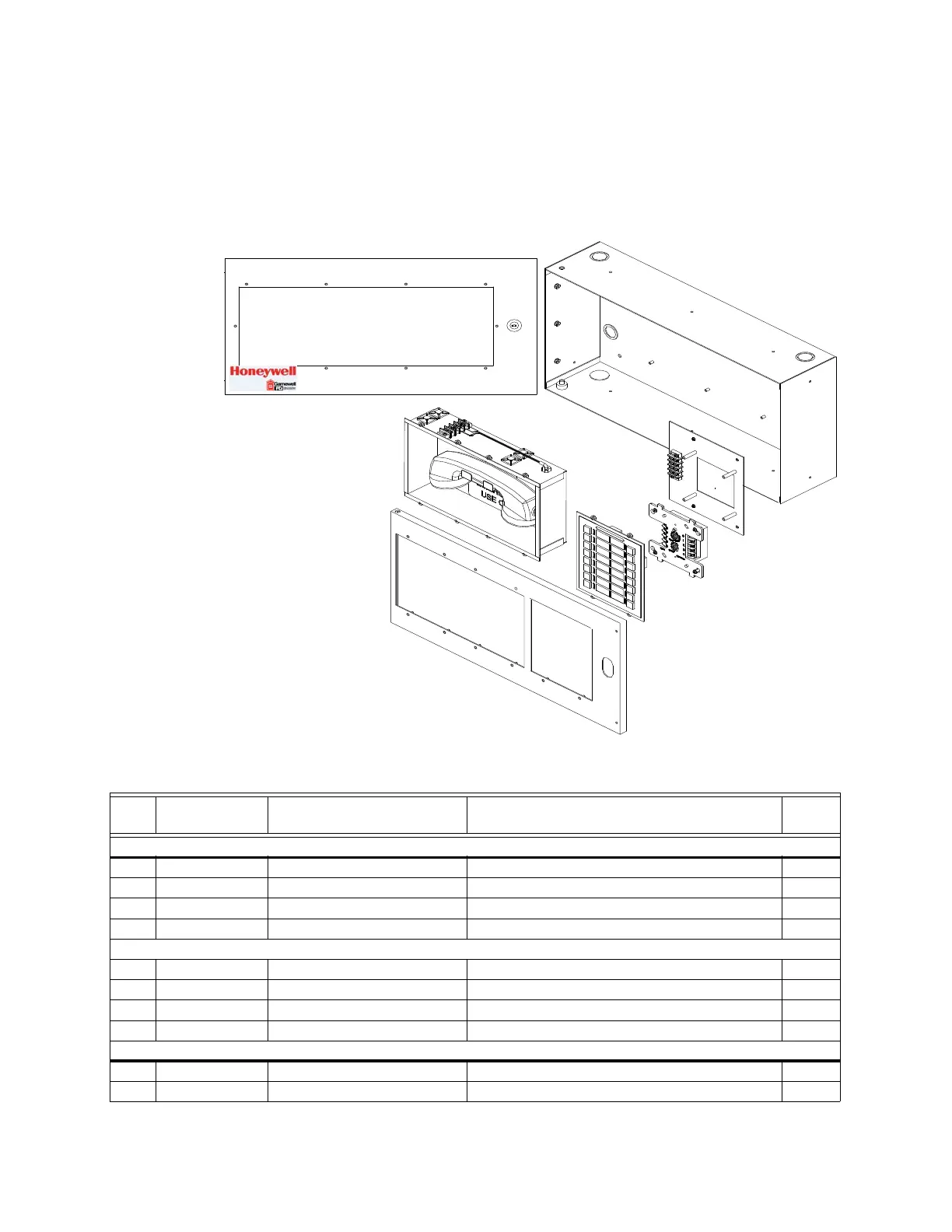

Figure 4.2.1 E3 Series LOC-TEL Local Operating Console
Qty Part Number Model Number Description
List
Price
Note: X represents the required components.
Cabinet Dimensions:
X E3BB-BAA 19 1/4“ x 10”H x 4 1 /2”D Enclosure, Black, “AA” Size Cabinet
X E3ID2-TA 2 Slots Door Inner Door, 2 Slots for INCC-Tel
X 90510 AOM-TEL PLATE KIT, AOM-TEL Plate, E3
Modules
X 1100-0451 INCC-TEL Firefighter Telephone Module
X 1100-0455 ASM-16 Programmable Switch Module
X AOM-TELF Monitor Module Telephone Monitor Module
X 1N4006 Blocking Diode
Optional Components
90492 Thumb Lock Thumb Quarter Turn Latch
E3-TRIMKIT-A Trim Ring Kit
Table 4.2.1 E3 Series LOC-TEL Local Operating Console Ordering Information
