E3 Series and S3 Series Building Blocks Reference Guide — P/N 9021-60724:A4 02/20/2019 7
E3 Series Remote Annunciator, E3BB-BAA1 Cabinet Ordering Information Basic E3 Series Remote Configurations
1.1 E3 Series Remote Annunciator, E3BB-BAA1 Cabinet
Ordering Information
The E3BB-BAA1 model is a single module remote annunciator cabinet that houses any one of the
following:
Table 1.1.1 lists the components that can be ordered for the E3 Series Remote Annunciator
E3BB-BAA1 cabinet.
• NGA • ASM-16 • Microphone

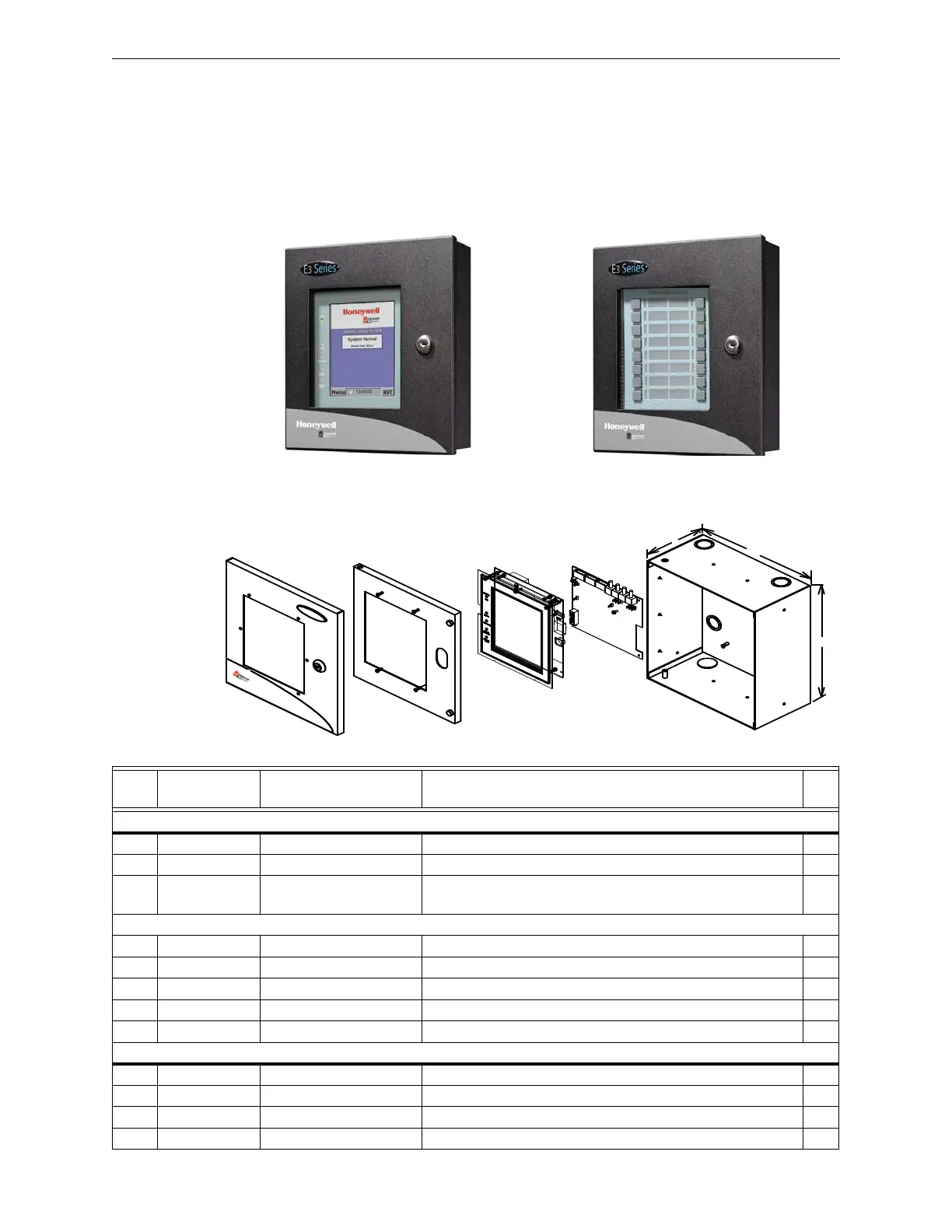

Figure 1.1.1 E3 Series Remote
Annunciator with NGA Display
Figure 1.1.2 E3 Display Remote
Annunciator with ASM-16
Figure 1.1.3 shows the E3BB-BAA1 cabinet installation configuration.
Figure 1.1.3 E3 Remote Annunciator E3BB-BAA1 Cabinet Configuration
Qty Part Number Model Number Description
List
Price
Note: X represents the required components.
Cabinets Dimensions:
X E3BB-BAA1 8 3/4”W x 10”H x 4 1/2”D Enclosure, black, “AA1” with key lock
E3BB-RAA1 8 3/4”W x 10”H x 4 1/2”D Enclosure, red, “AA1” with key lock-Shipped with 1 slot
Inner Door
Modules
NGA NGA NGA, Network Graphic Annunciator (Second Generation)
X 1100-0505 NGA NGA, Network Graphic Annunciator (First Generation)
RPT-E3-UTP Repeater Network Repeater, unshielded twisted pair
1100-0455 ASM-16 Programmable Switch Module
1100-0452 MIC INCC-MIC, Paging Microphone
Optional Components
FSL-E3 Fiber module Single mode fiber module
FML-E3 Fiber module Multi mode fiber module
90492 90492 Thumb lock Thumb quarter turn latch
E3-TRIMKIT-A1 Trim Ring Kit
Table 1.1.1 E3 Remote Annunciator E3BB-BAA1 Cabinet Ordering Information
