20 E3 Series and S3 Series Building Blocks Reference Guide — P/N 9021-60724:A4 02/20/2019
E3/S3 Series FACP Panel Configurations S3-Slim Cabinet Ordering Information
2.6 S3-Slim Cabinet Ordering Information
The S3-Slim Cabinet is used to house the modules that support the S3 Series Small Addressable
Fire Alarm Control Panel System. Figure 2.6.1 illustrates the S3-Slim cabinet configuration.
Table 2.6.1 lists the components that can be ordered for the S3 Slim cabinet.

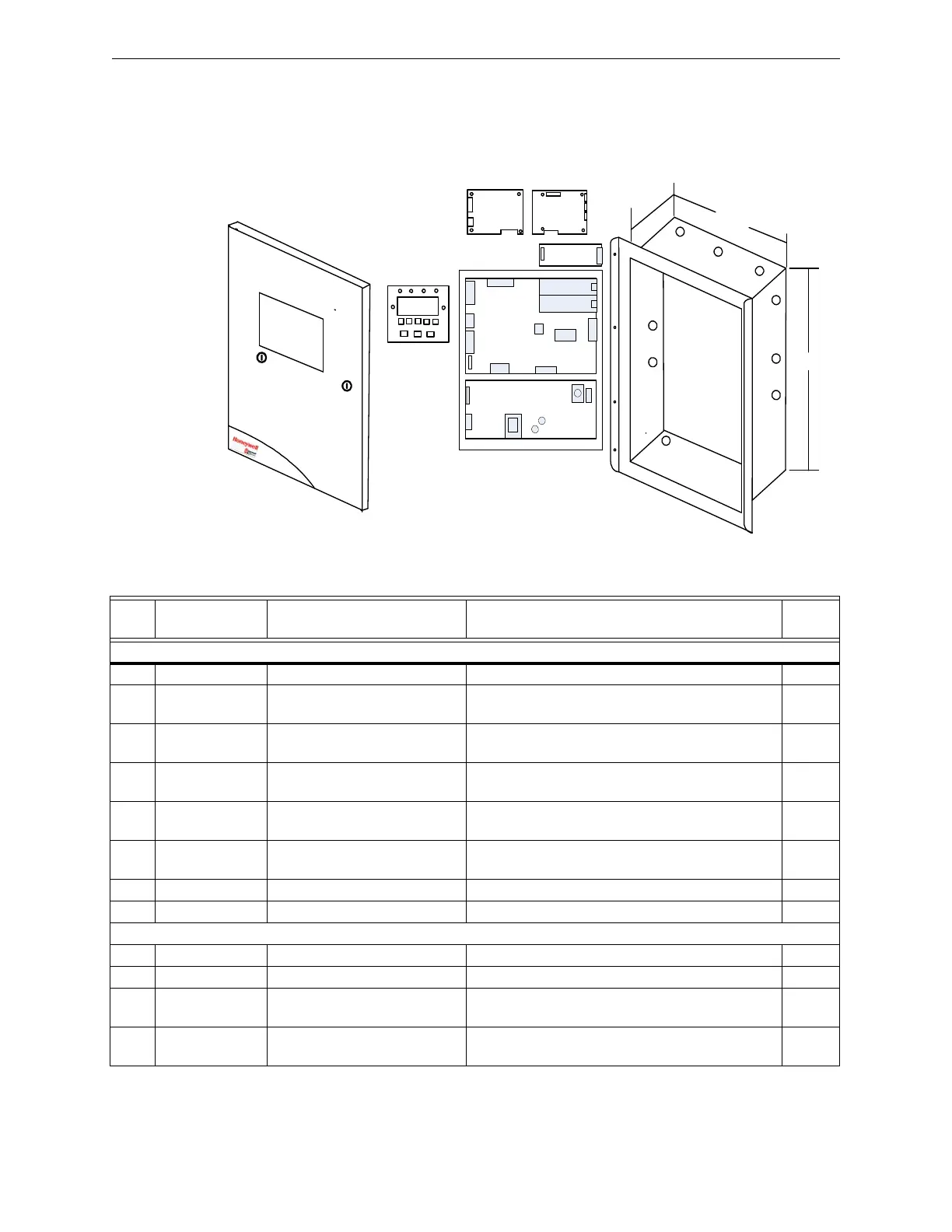

Figure 2.6.1 S3 Slim Cabinet
DACT-E3
RPT-E3-UTP
4
½
”
14 1/8"
20 1/8"
LCD-SLP
SLP-E3
SLC-PM/SLC95-PM #1
SLC-PM/SLC95-PM #2
FLPS-7
SLC-PM
Qty Part Number Model Number Description
List
Price
Note: X represents the required components.
Cabinets Dimensions:
X SLP-BLK 14 1/8”W x 20 1/8”H x 4 1/2”D Smart Loop Panel Addressable FACP in black
enclosure.
SLP-RED 14 1/8”W x 20 1/8”H x 4 1/2”D Smart Loop Panel Addressable FACP in red
enclosure.
X SLC-PM System Sensor SLC module Velociti SLC loop 318 devices. Requires 1 or 2
devices used for SLC loops.
SLC95-PM Apollo SLC module Apollo SLC loop 126 devices. Requires 1 or 2
devices used for SLC loops.
LCD-SLP S3 Main Display LCD Touch screen display unit (shipped with SLP-
BLK).
FLPS-7-RB 7 amp Power Supply Power Supply unit (shipped with SLP-BLK)
X 2 Batteries 12 A/H Batteries
Optional Components
DACT-E3 Dialer Digital Alarm Communication Transmitter
RPT-E3-UTP Networking Card Network repeater, unshielded twisted-pair
FSL-E3 Fiber Networking Fiber Network Module, Single-Mode Fiber, 1
channel
FML-E3 Fiber Networking Fiber Network Module, Multi-Mode Fiber, 1
channel
Table 2.6.1 S3-Slim Cabinet Ordering Information
