E3 Series and S3 Series Building Blocks Reference Guide — P/N 9021-60724:A4 02/20/2019 25
E3 Series LOC Local Operating Console OrderInformation Basic E3 Series In-Building Mass Notification LOC Configurations
4.1 E3 Series LOC Local Operating Console OrderInformation
The E3 Series LOC Local Operating Console is used to house the components that support the remote
audio modules of the E3 Series Combined Fire/Mass Notification System. Figure 4.1.1 illustrates the
E3 Series LOC Local Operating Console cabinet configuration. Table 4.1.1 lists the E3 Series LOC
Local Operating Console ordering information.

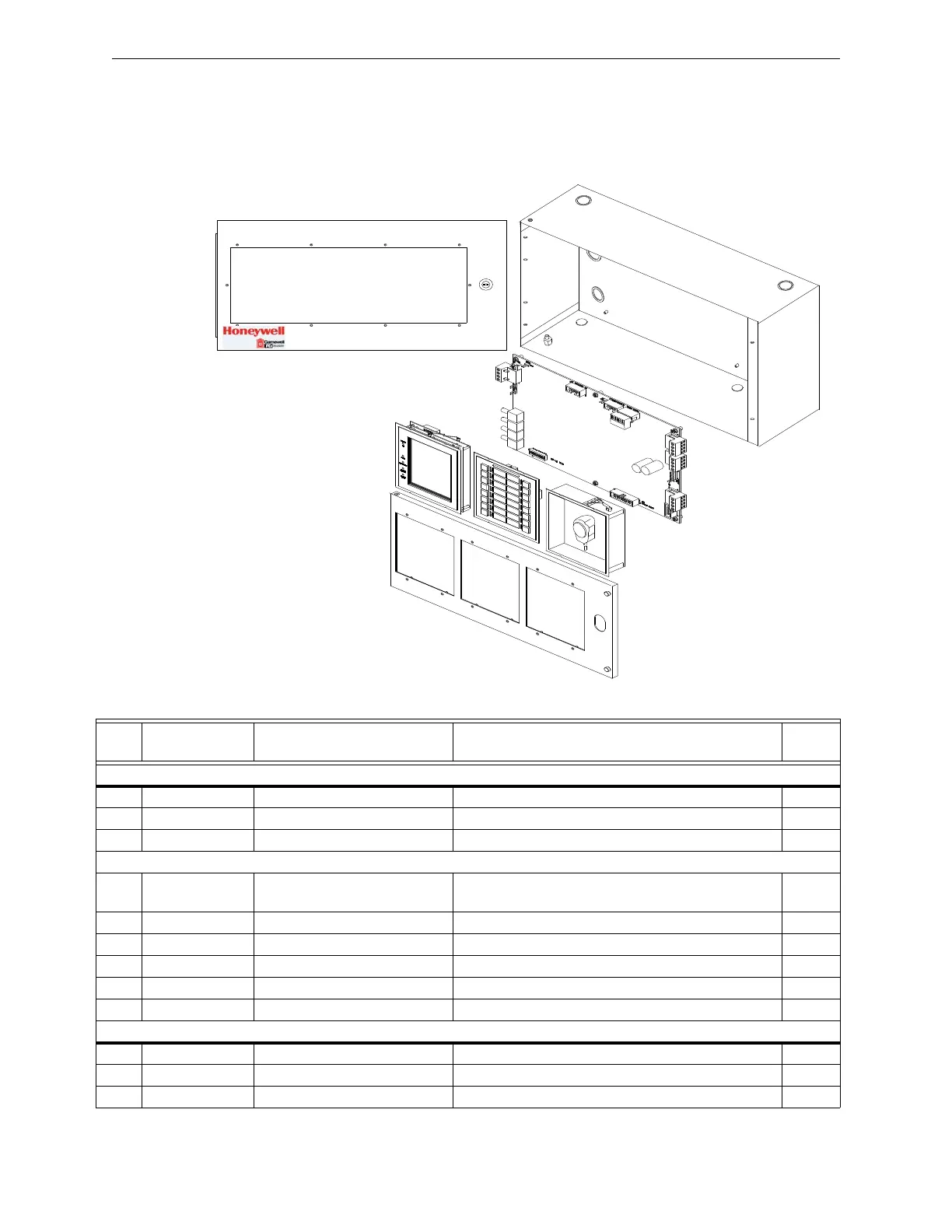

Figure 4.1.1 E3 Series LOC Local Operating Console
I
N
I
-
V
G
S
E
R
I
E
S
NGA
Qty Part Number Model Number Description
List
Price
Note: X represents the required components.
Cabinet Dimensions:
X E3BB-BAA 19 1/4”W x 10”H x 4 1/4” D Enclosure, Black, “AA” Size Cabinet
X E3ID3-A 3 Slots Door Inner Door, 3 Slots
Modules
INI-VGC, INI-
VGE, INI-VGX
INI-VGC, INI-VGE, INI-VGX INI-VGC, Voice Gateway (3rd Generation)
X 1100-1321 Voice Gateway INI-VGC, Voice Gateway (1st/2nd Generation)
X 1100-0452 MIC INCC-MIC, Paging Microphone
X 1100-0455 ASM-16 Programmable Switch Module
NGA NGA NGA, Network Graphic Annunciator
(2nd Generation)
X 1100-0505 NGA NGA, Network Graphic Annunciator
(1st Generation)
Optional Components
AOM-2SF LOC Lock-out Addressable Output Supervised Relay
90492 Thumb Quarter Turn Latch
E3-TRIMKIT-A Trim Ring Kit
Table 4.1.1 E3 Series LOC Local Operating Console Ordering Information
