E3 Series Classic Bulk Audio Cabinet Configurations E3 Series Classic, SBB-C4 Cabinet Ordering Information
6.1 E3 Series Classic, SBB-C4 Cabinet Ordering Information
The E3 Series Classic, SBB-C4 Cabinet houses the components that support the bulk audio ampli-
fiers required for the E3 Series Fire and Voice Evacuation Systems. Figure 6.1.1 illustrates the E3
Series Classic SBB-C4 cabinet configuration. Table 6.1.1 lists the E3 Series Classic SBB-C4 cabi-
net ordering information.

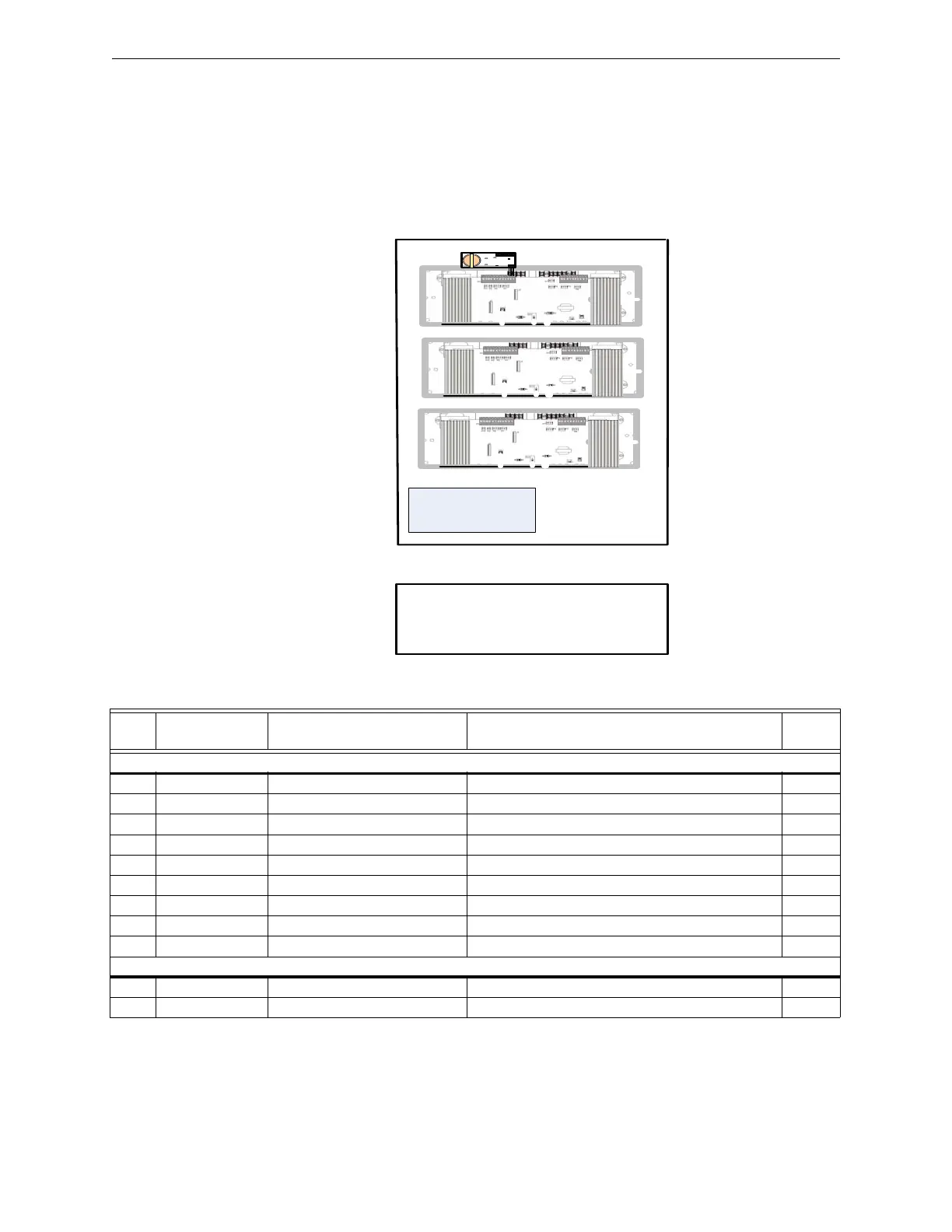

Figure 6.1.1 E3 Series Classic, SBB-C4 Cabinet Configuration
R-18
R-125
R-18
R-125
R-18
R-125
AA-100/AA120
AA-100/A A120
AA-100/AA120
A
C
T-
1
Battery
Charger
SBB-C4
FCI-LLB
BATTERY BOX
Qty Part Number Model Number Description
List
Price
Note: X represents the required components.
Cabinet Dimensions:
X SBB-C4 24 W X 37 1/8 H X 5 1/8 D Backbox, Accepts 3 Chassis, Black
X FCI-DR-C4B Blank Door Blank Door, Lock & Keys, for 3 Chassis Backbox
Modules
AA-120 Bulk Audio Amplifier 120 W Amplifier 25 V RMS
AA-100 Bulk Audio Amplifier 100 W Amplifier 70.7 VRMS
X ACT-1 Audio Coupling Transformer (one required)
X FCI-CHG-120 Battery Charger, 25-120 A/H Gel Cell
X FCI-LBB Large Battery Box
Optional Components
MCH-6 MCH-6 6-Unit Mounting Chassis
MMO-6SF Multi-Module Output, Relay
Table 6.1.1 E3 Series Classic SBB-C4 Cabinet Ordering Information
