Honeywell E3 Series - 5.3 E3 Series INX CAB-D Cabinet Ordering Information

30 E3 Series and S3 Series Building Blocks Reference Guide — P/N 9021-60724:A4 02/20/2019
Basic E3 Series Audio Transponder Cabinet Configurations E3 Series INX CAB-D Cabinet Ordering Information
5.3 E3 Series INX CAB-D Cabinet Ordering Information
The E3 Series INX CAB-D cabinet is used to house the components that support the E3 Series
Voice Evacuation and the Combined Fire/Mass Notification Systems. Figure 5.3.1 illustrates the E3
Series INX CAB-D cabinet configuration. Table 5.3.1 lists the E3 Series INX CAB-D cabinet
ordering information.

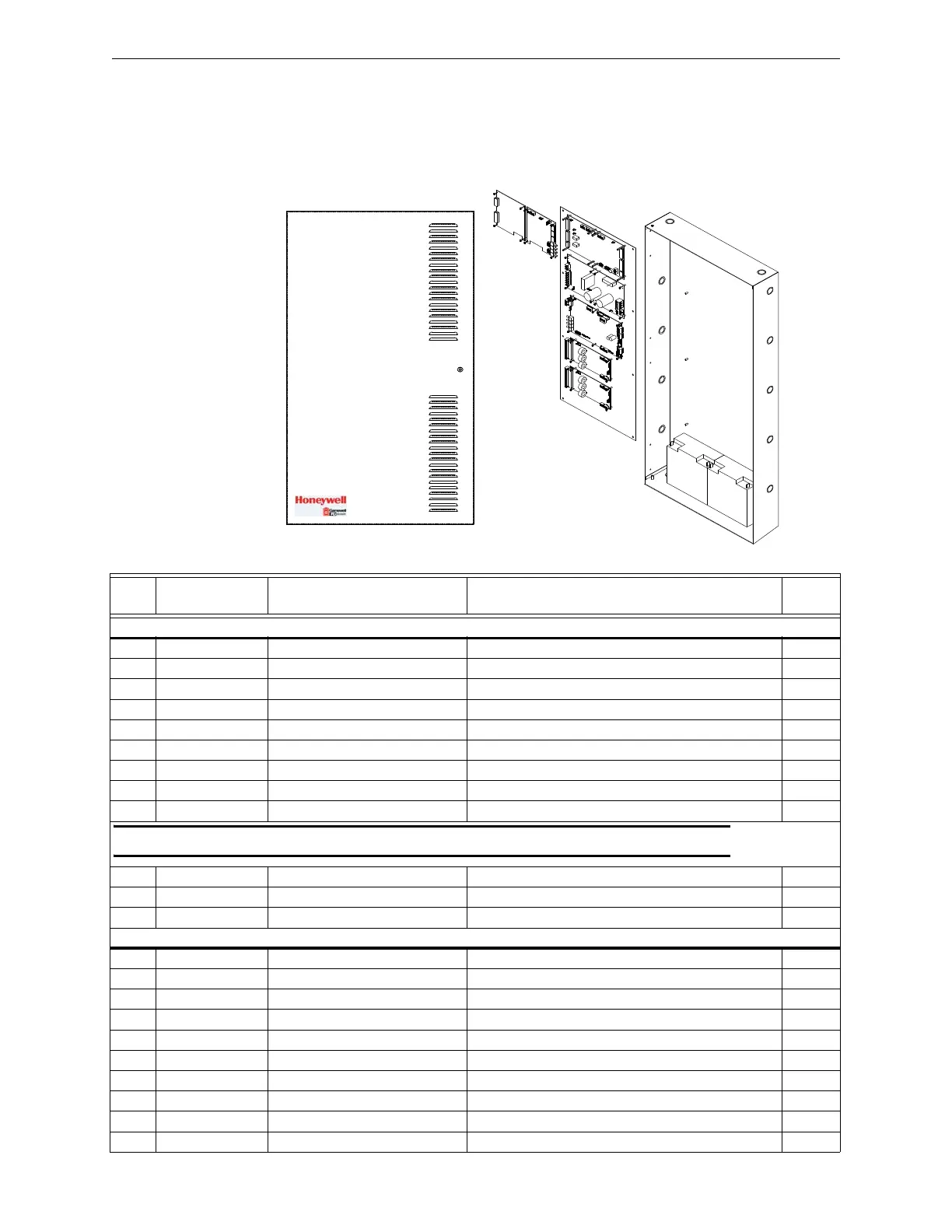

Figure 5.3.1 E3 Series INX CAB-D Cabinet Configuration
P
M
-
9
/
P
M
-
9
G
B
A
T
T
E
R
I
E
S
D
A
C
T
-
E
3
R
P
T
-
E
3
I
L
I
-
M
B
-
E
3
/
I
L
I
9
5
-
M
B
-
E
3
I
N
I
-
V
G
S
E
R
I
E
S
A
M
-
5
0
S
E
R
I
E
S
A
M
-
5
0
S
E
R
I
E
S
INX D CABINET,
E3-INX-D PLATE
Qty Part Number Model Number Description
List
Price
Note: X represents the required components.
Cabinet Dimensions:
INX CAB-D 19 3/8”W x 41”H x 4 1/2”D
X E3BB-BD/INX INX, Cabinet Enclosure, Transponder, Black, “D” Size
X E3-INX-D Plate INX-D Plate INX-D Mounting Plate
Modules
X PM-9 Power Supply 9 Ampere Power Supply
INI-VGX INI-VGX Transponder Voice Gateway (3rd Generation)
X 1100-1323 INI-VGX Transponder Voice Gateway (1st/2nd Generation)
1100-0456 AM-50-25 25 Volts 50 Watt Amplifier
NOTE: Only one type of 50 Watt amplifier may be connected to the INI-VGX (25V or 70V).
AM-50-70 AM-50-70 70 Volt 50 Watt Amplifier
90521 AC Line Filter AC Line Filter, Required with 70V Amplifier
2 Batteries 2-18 AH
Optional Components
ILI-MB-E3 SLC Card Intelligent Loop Interface, Mother Board
ILI95-MB-E3 XP95 SLC XP95 Intelligent Loop Interface, Mother Board
DACT-E3 DACT Digital Alarm Communication Transmitter
RPT-E3-UTP Networking Card Network Repeater, Unshielded Twisted-Pair
FSL-E3 Fiber Networking Fiber Network Module, Sing-Mode Fiber, 1 Channel
FML-E3 Fiber Networking Fiber Network Module, Multi-Mode Fiber, 1 Channel
E3-TRIMKIT-D Trim Ring Kit
90518 7 A/H Seismic Kit E3 CAB-D 7 A/H Seismic Battery Kit
90519 12 A/H Seismic Kit E3 CAB-D 12 A/H Seismic Battery Kit
90520 18 A/H Seismic Kit E3 CAB-D 18 A/H Seismic Battery Kit
Table 5.3.1 E3 Series INX CAB -D Cabinet Ordering Information
