E3 Series and S3 Series Building Blocks Reference Guide — P/N 9021-60724:A4 02/20/2019 29
E3 Series INX CAB-C Cabinet Ordering Information Basic E3 Series Audio Transponder Cabinet Configurations
5.2 E3 Series INX CAB-C Cabinet Ordering Information
The E3 Series INX CAB-C cabinet is used to house the components that support the E3 Series
Voice Evacuation and the Combined Fire/Mass Notification Systems. Figure 5.2.1 illustrates the E3
Series INX CAB-C cabinet configuration. Table 5.1.1 lists the E3 Series INX CAB-C cabinet
ordering information.

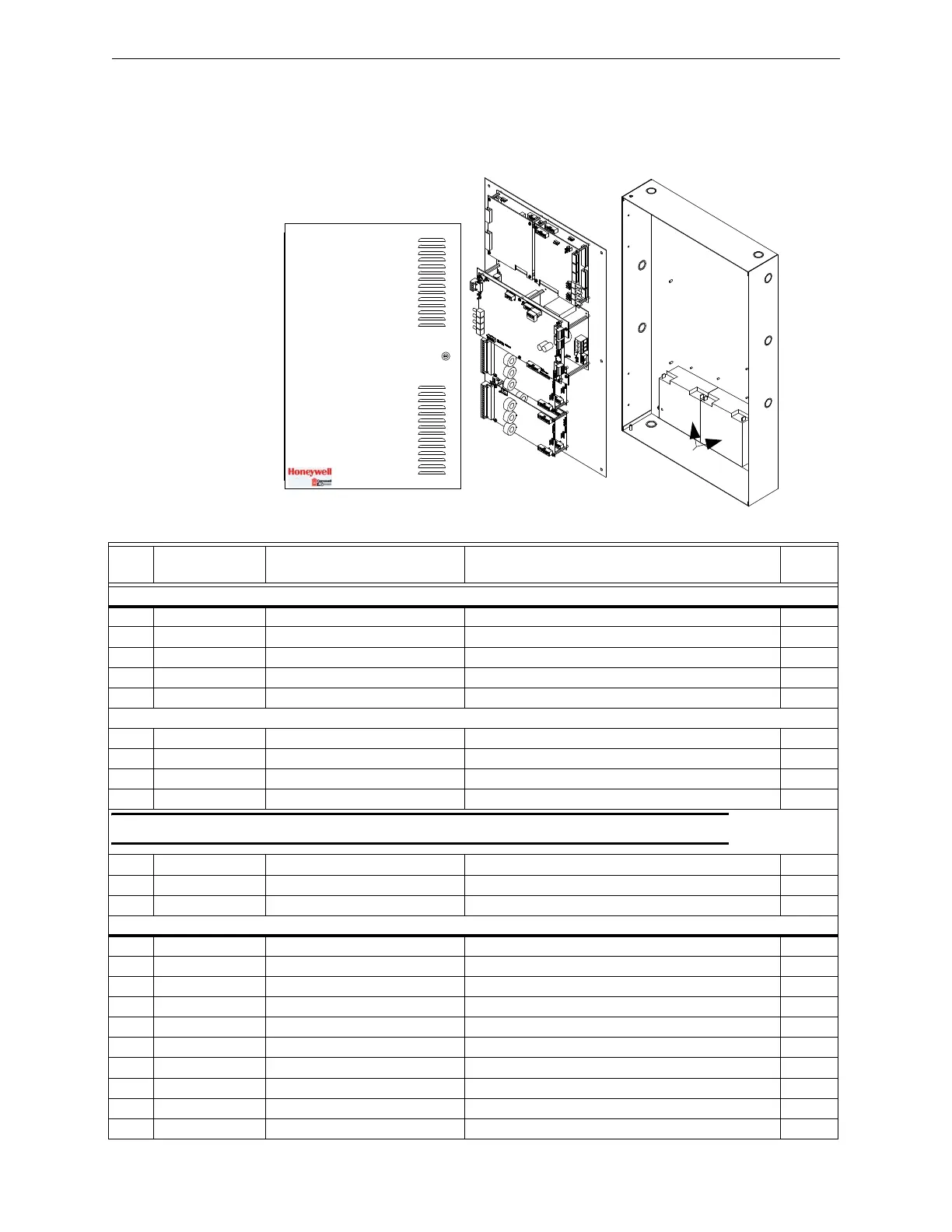

Figure 5.2.1 E3 Series INX CAB-C Configuration
B
A
T
T
E
R
I
E
S
D
A
C
T
-
E
3
R
P
T
-
E
3
I
N
I
-
V
G
S
E
R
I
E
S
A
M
-
5
0
S
E
R
I
E
S
A
M
-
5
0
S
E
R
I
E
S
Qty Part Number Model Number Description
List
Price
Note: X represents the required components.
Cabinet Dimensions:
INX CAB-C 19 3/8”W x 30”H x 4 1/2”D
X E3BB-BC/INX INX, Cabinet Enclosure, Transponder, Black, “C” Size
X E3-INX-C Plate INX-C Plate INX-C Mounting Plate
X 90375 PM-9 Adapter Plate PM-9 Adapter Plate Kit, Harware, E3-INX
Modules
X PM-9 Power Supply 9 Ampere Power Supply
INI-VGX INI-VGX Voice Gateway (3rd Generation)
X 1100-1323 INI-VGX Voice Gateway (1st /2nd Generation)
1100-0456 AM-50-25 25 Volts 50 Watt Amplifier
NOTE: Only one type of 50 Watt amplifier may be connected to the INI-VGX (25V or 70V).
AM-50-70 AM-50-70 70 Volt 50 Watt Amplifier
90521 AC Line Filter AC Line Filter, Required with 70V Amplifier
2 Batteries 2-18 AH
Optional Components
ILI-MB-E3 SLC Intelligent Loop Interface, Mother Board
ILI95-MB-E3 SLC XP95 Intelligent Loop Interface, Mother Board
DACT-E3 DACT Digital Alarm Communication Transmitter
RPT-E3-UTP Networking Card Network Repeater, Unshielded Twisted-Pair
FLS-E3 Fiber Networking Fiber Network Module, Single-Mode Fiber, 1 Channel
FML-E3 Fiber Networking Fiber Network Module, Multi-Mode Fiber, 1 Channel
E3-TRIMKIT-C Trim Ring Kit
90518 7 A/H Seismic Kit E3 CAB-C 7 A/H Seismic Battery Kit
90519 12 A/H Seismic Kit E3 CAB-C 12 A/H Seismic Battery Kit
90520 18 A/H Seismic Kit E3 CAB-C 18 A/H Seismic Battery Kit
Table 5.2.1 E3 Series INX CAB-C Cabinet Ordering Information
