8 E3 Series and S3 Series Building Blocks Reference Guide — P/N 9021-60724:A4 02/20/2019
Basic E3 Series Remote Configurations E3 Series Remote Annunciator, E3BB-BA2 Cabinet Ordering Information
1.2 E3 Series Remote Annunciator, E3BB-BA2 Cabinet
Ordering Information
The E3BB-BA2 model is a single module remote annunciator cabinet that houses either the LCD-
E3 or the LCD-SLP. Table 1.2.1 lists the components that can be ordered for the E3 Series Remote
Annunciator E3BB-BA2 cabinet.

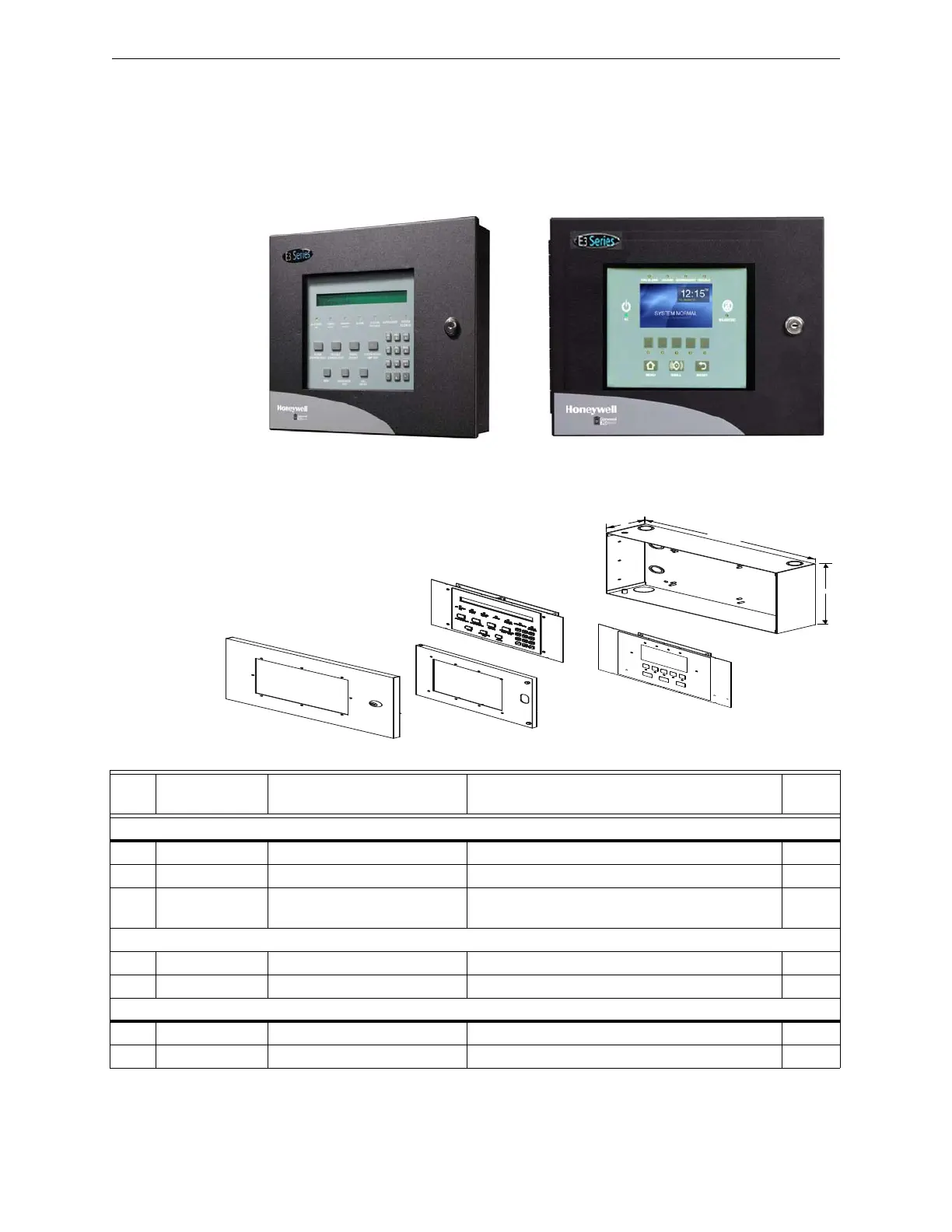

Figure 1.2.1 E3 Series Remote
Annunciator with LCD-E3 Display
Figure 1.2.2 E3 Series Remote
Annunciator with LCD-SLP Display
Figure 1.2.3 shows the E3BB-BA2 cabinet installation configuration.
Figure 1.2.3 E3 Remote Annunciator E3BB-BA2 Cabinet Configuration
10"
L
C
D
-
E
3
L
C
D
-
S
L
P
4
½
”
1
3
1
/
4
”
Qty Part Number Model Number Description
List
Price
Note: X represents the required components.
Cabinets Dimensions:
1 E3BB-BA2 13 1/4”W x 10”H x 4 1/2”D Enclosure, black, “AA1” with key lock
E3BB-RA2 13 1/4”W x 10”H x 4 1/2”D Enclosure, red, “AA1” with key lock
Shipped with 1 slot Inner Door
Modules
X LCD-SLP Display LCD Touch screen display unit
LCD-E3 Display LCD keypad display
Optional Components
90492 90492 Thumb lock Thumb quarter turn latch
E3-TRIMKIT-A2 E3 TRIMKIT Trim Ring Kit
Table 1.2.1 E3 Remote Annunciator E3BB-BA2 Cabinet Ordering Information
