E3 Series and S3 Series Building Blocks Reference Guide — P/N 9021-60724:A4 02/20/2019 33
E3 Series Classic SBB-D4 Ordering Information E3 Series Classic Bulk Audio Cabinet Configurations
6.2 E3 Series Classic SBB-D4 Ordering Information
The E3 Series Classic, SBB-D4 Cabinet houses the components that support the bulk audio ampli-
fiers required for the E3 Series Fire and Voice Evacuation Systems. Figure 6.2.1 illustrates the E3
Series Classic cabinet configuration. Table 6.2.1 lists the E3 Series Classic Bulk Audio cabinet
ordering information.

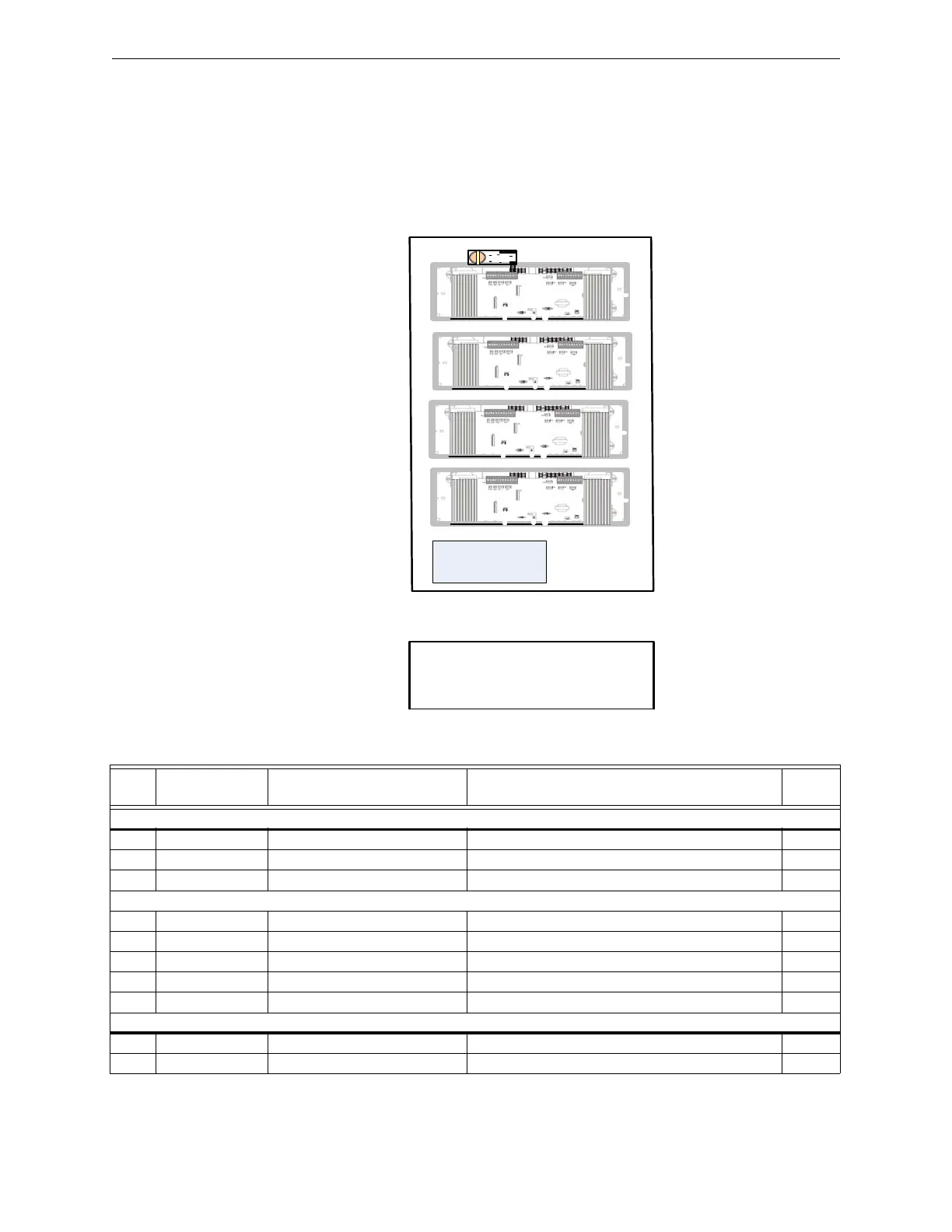

Figure 6.2.1 E3 Series Classic, SBB-D4 Cabinet Configuration
R-18
R-125
R-18
R-125
R-18
R- 125
R-18
R-125
AA- 100/AA120
AA-1 00/AA 120
AA-1 00/AA120
AA-100/AA 120
A
C
T-
1
Battery
Charger
SBB-D4
FCI-LLB
BATTERY BOX
Qty Part Number Model Number Description
List
Price
Note: X represents the required components.
Cabinet Dimensions:
X SBB-D4 24” W x 45 7/8” H x 5 1/8” D Cabinet Backbox, Accepts 4 Chassis, Black
X FCI-DR-D4B Blank Door Blank Door, Lock & Keys, for 4 Chassis Backbox
Modules
AA-120 Bulk Audio Amplifier 120 W Amplifier 25 V RMS
AA-100 Bulk Audio Amplifier 100 W Amplifier 70.7 VRMS
X ACT-1 Audio Coupling Transformer (one required)
X FCI-CHG-120 Battery Charger, 25-120 A/H Gel Cell
X FCI-LBB Large Battery Box
Optional Components
MCH-6 MCH-6 6-Unit Mounting Chassis
MMO-6SF Multi-Module Output, Relay
Table 6.2.1 E3 Series Classic SBB-D4 Cabinet Ordering Information
