28 E3 Series and S3 Series Building Blocks Reference Guide — P/N 9021-60724:A4 02/20/2019
Basic E3 Series Audio Transponder Cabinet Configurations E3 Series INX CAB-B Cabinet Ordering Information
5.1 E3 Series INX CAB-B Cabinet Ordering Information
The E3 Series INX CAB-B cabinet is used to house the components that support the E3 Series
Voice Evacuation and the Combined Fire/Mass Notification Systems. Figure 5.1.1 illustrates the E3
Series INX CAB-B cabinet configuration. Table 5.1.1 lists the E3 Series INX CAB-B cabinet
ordering information.

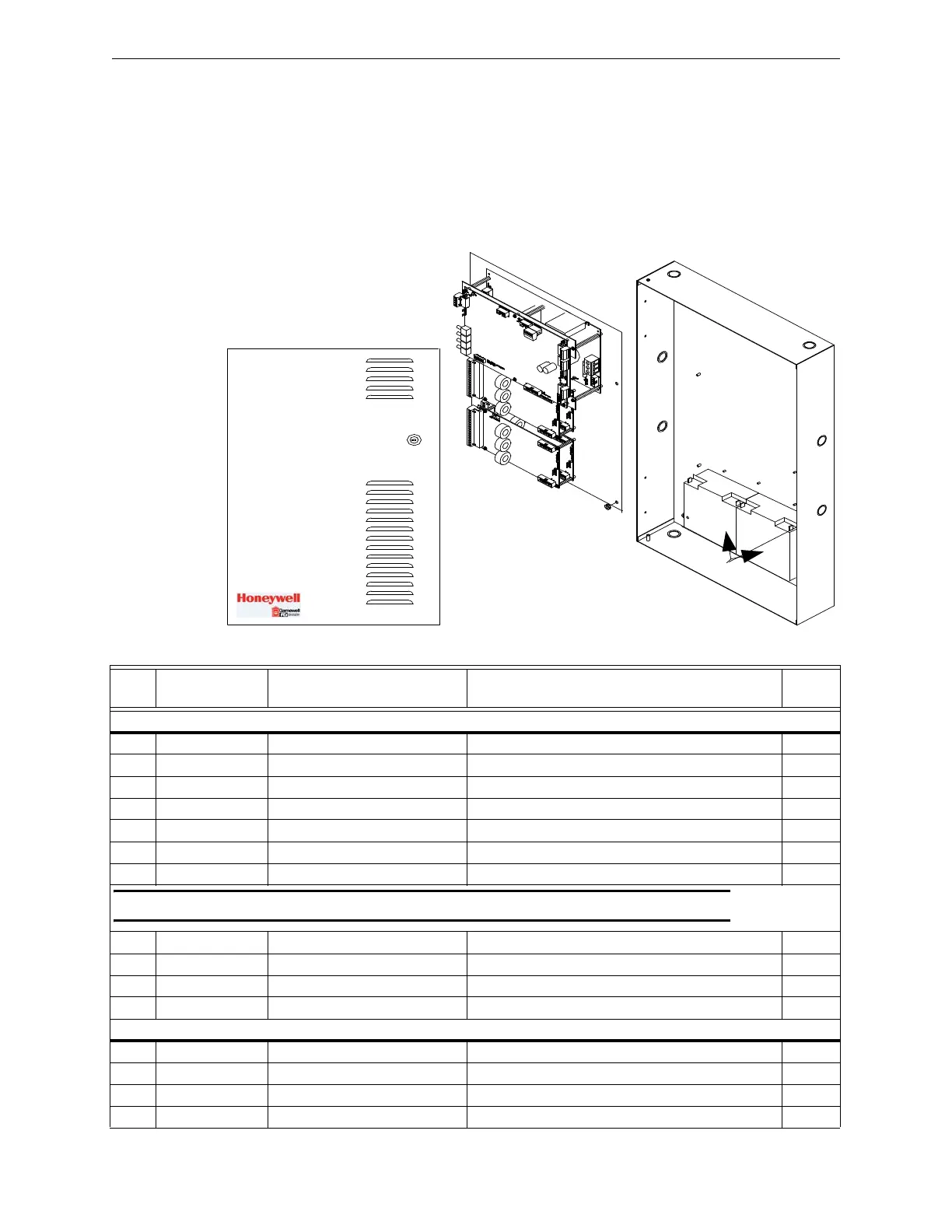

Figure 5.1.1 E3 Series INX CAB-B Cabinet Configuration
INX CAB-B
C
A
B
I
N
E
T
B
B
A
T
T
E
R
I
E
S
I
N
I
-
V
G
X
A
M
-
5
0
S
E
R
I
E
S
A
M
-
5
0
S
E
R
I
E
S
Qty Part Number Model Number Description
List
Price
Note: X represents the required components.
Cabinet Dimensions:
INX CAB-B 19 3/8”W x 19 3/8”H x 4 1/2”D
X 1100-0460 Cabinet Enclosure, INX CAB-B, “B” Size
Modules
X PM-9 Power Supply 9 Ampere Power Supply
INI-VGX INI-VGX Voice Gateway (3rd Generation)
X 1100-1323 INI-VGX Voice Gateway (1st/2nd Generation)
NOTE: Only one type of 50 Watt amplifier may be connected to the INI-VGX (25V or 70V).
1100-0456 AM-50-25 25 Volt 50 Watt Amplifier
AM-50-70 AM-50-70 70 Volt 50 Watt Amplifier
2 Batteries 18 A/H
90521 AC Line Filter AC Line Filter, Required with 70V Amplifier
Optional Components
E3-TRIMKIT-B Trim Ring Kit
90518 7 A/H Seismic Kit E3 CAB-B 7 A/H Seismic Battery Bracket Kit
90519 12 A/H Seismic Kit E3 CAB-B 12 A/H Seismic Battery Bracket Kit
90520 18 A/H Seismic Kit E3 CAB-B 18 A/H Seismic Battery Bracket Kit
Table 5.1.1 E3 Series INX CAB-B Cabinet Ordering Information
