E3 Series B-Slim Cabinet Ordering Information E3/S3 Series FACP Panel Configurations
2.1 E3 Series B-Slim Cabinet Ordering Information
The E3 Series B-Slim Cabinet is used to house the components that support the E3 Series Fire
Evacuation System. Figure 2.1.1 illustrates the E3 Series, B-Slim Cabinet configuration.
Table 2.1.1 lists the E3 Series, B-Slim cabinet ordering information.

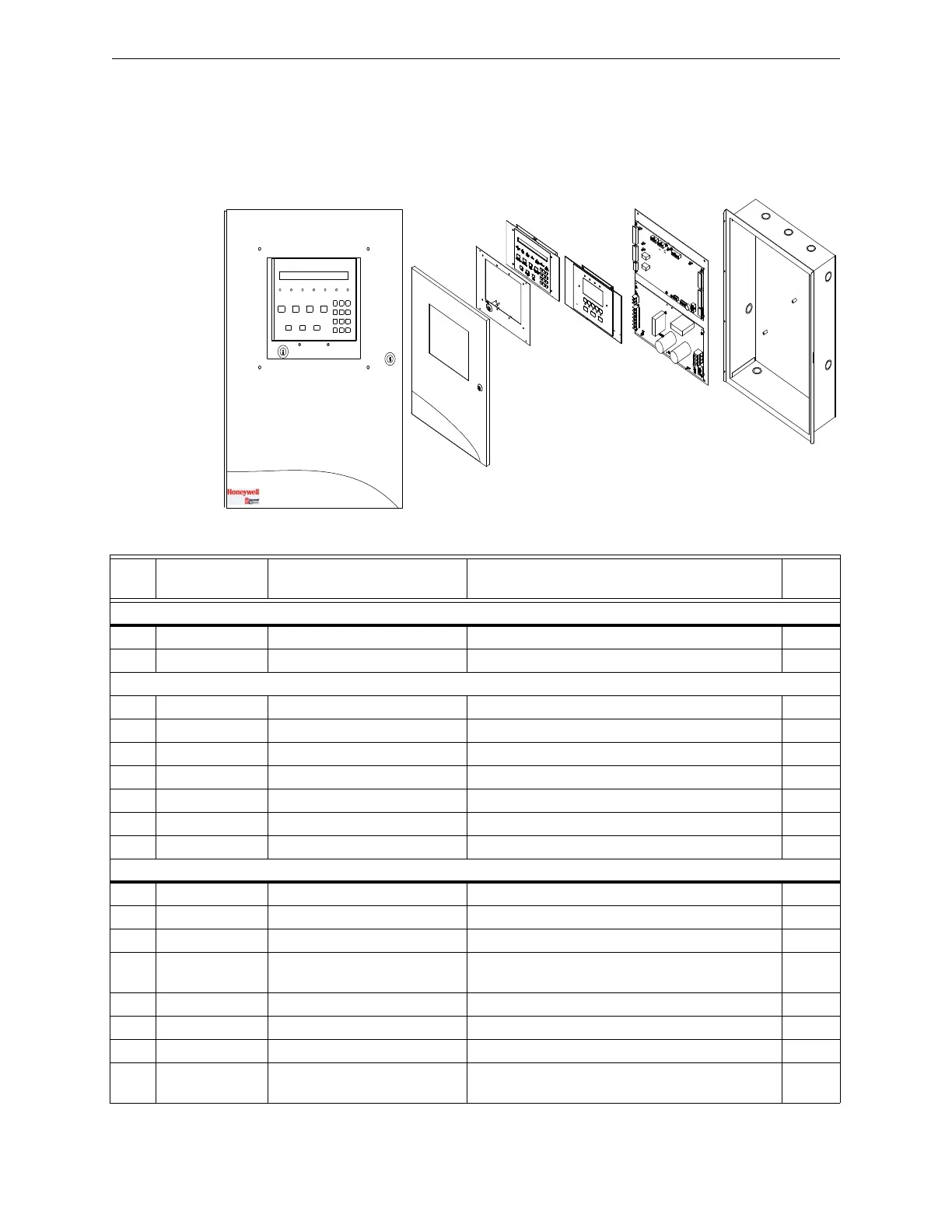

Figure 2.1.1 E3 Series, B-Slim Cabinet Configuration
-
AC
POWE
R
ON
POWE
R
FAULT
GROU
ND
FAULT
ALAR
M
SYSTE
M
TROU
BLE
SUPERVIS
ORY
SYSTE
M
SIL ENC
ED
ALARM
ACKNOWLED
GE
TROUBLE
ACKNOWLED
GE
SIGNAL
SILENCE
SYSTEM
RESET/
LAMP TEST
ME
NU
BACKSPA
CE/
EDIT
OK/
ENTER
L
C
D
-
E
3
L
C
D
-
S
L
P
I
L
I
-
M
B
-
E
3
/
I
L
I
9
5
-
M
B
-
E
3
P
M
-
9
/
P
M
-
9
G
Qty Part Number Model Number Description
List
Price
Note: X represents required components.
Cabinet Dimensions:
X E3BB-RBSLIM 20” H x 14” W x 4 1/2”D E3BB-RBSLIM Enclosure, Red, Narrow
Modules
X ILI-MB-E3 System Sensor Intelligent Loop Interface, Mother Board (max-1)
ILI-S-E3 System Sensor Intelligent Loop Interface, Supplemental (max-1)
ILI95-MB-E3 Apollo Sensor Intelligent Loop Interface, Mother Board (max-1)
ILI95-S-E3 Apollo Sensor Intelligent Loop Interface, Supplemental (max-1)
X PM-9 Power Supply 9 Ampere Power Supply
X LCD-E3 Display LCD Keypad Display
X 2 Batteries
Optional Components
LCD-SLP Display LCD-SLP Keypad Display
DACT-E3 DACT Digital Alarm Communiocation Transmitter
RPT-E3-UTP Networking Card Network Repeater, Unshielded Twisted-Pair
FSL-E3 Fiber Networking Fiber Network Module, Single-Mode Fiber, 1
Channel
FML-E3 Fiber Networking Fiber Network Module, Multi-Mode Fiber, 1 Channel
90516 7 A/H Seismic 7 A/H Seismic Battery Bracket Kit
90517 12 A/H Seismic 12 A/H Seismic Battery Bracket Kit
75687 Cable 20” Repeater Cable needed for RPT-E3-FO
75687-A Special Order Cable
Table 2.1.1 E3 Series, B-Slim Cabinet Ordering Information
