E3 Series and S3 Series Building Blocks Reference Guide — P/N 9021-60724:A4 02/20/2019 11
E3 Series Remote Annunciator, E3BB-BAA with E3ID2-A Inner Door Cabinet Ordering Information Basic E3 Series Remote
1.5 E3 Series Remote Annunciator, E3BB-BAA with E3ID2-A
Inner Door Cabinet Ordering Information
The E3BB-BAA with E3ID2-A Inner Door model is a double module, remote annunciator cabinet
that is used for display and control. It houses the LCD-E3 or LCD-SLP and an ASM-16.
Table 1.5.1 lists the components that can be ordered for the E3 Series Remote Annunciator E3BB-
BAA cabinet.

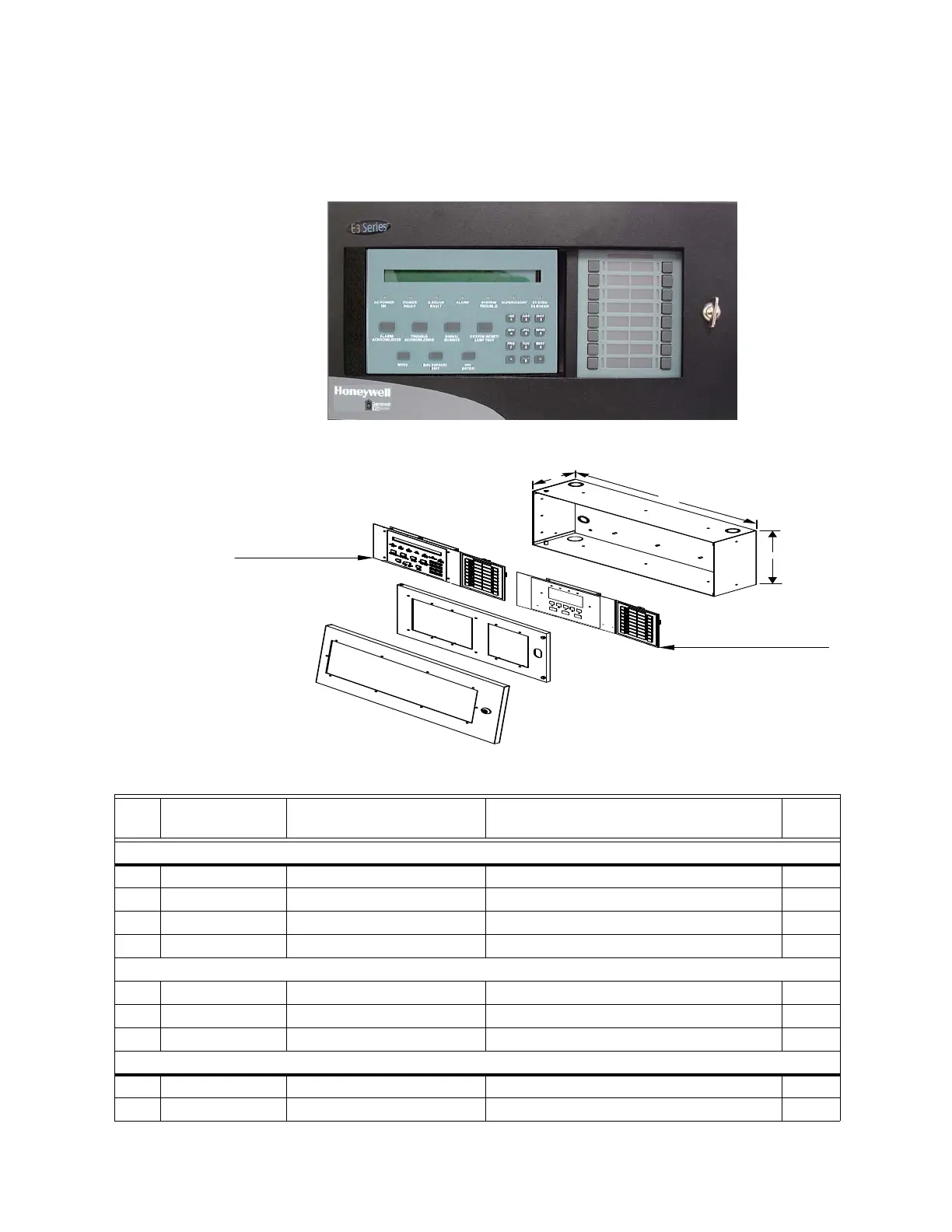

Figure 1.5.1 E3 Series Remote Annunciator with LCD-E3 Display and ASM-16
Figure 1.5.2 shows the E3BB-BAA with the E3ID2-A inner door cabinet configuration.
Figure 1.5.2 E3 Remote Annunciator E3BB-BAA with E3ID2-A Cabinet
Configuration
10
1 9 1 /4
4
1
/
2
LCD-SLP
LCD-E3
Qty Part Number Model Number Description
List
Price
Note: X represents the required components.
Cabinets Dimensions:
1 E3BB-BAA 19”W x 10”H x 4 1/2”D LOC Enclosure, black
E3BB-RAA 19”W x 10”H x 4 1/2”D LOC Enclosure, red
E3ID2-A
Modules
X LCD-E3 LCD Keypad Display
LCD-SLP LCD Touch screen display
1100-0455 ASM-16 programmable switch module
Optional Components
90492 Thumb latch Quarter turn thumb latch
E3-TRIMIT-A
Table 1.5.1 E3 Remote Annunciator E3BB-BAA with E3ID-2 Cabinet Ordering Information
