7.9 USING THE ON-SCREEN CONTROLLER AND COMPASS, CONTINUED

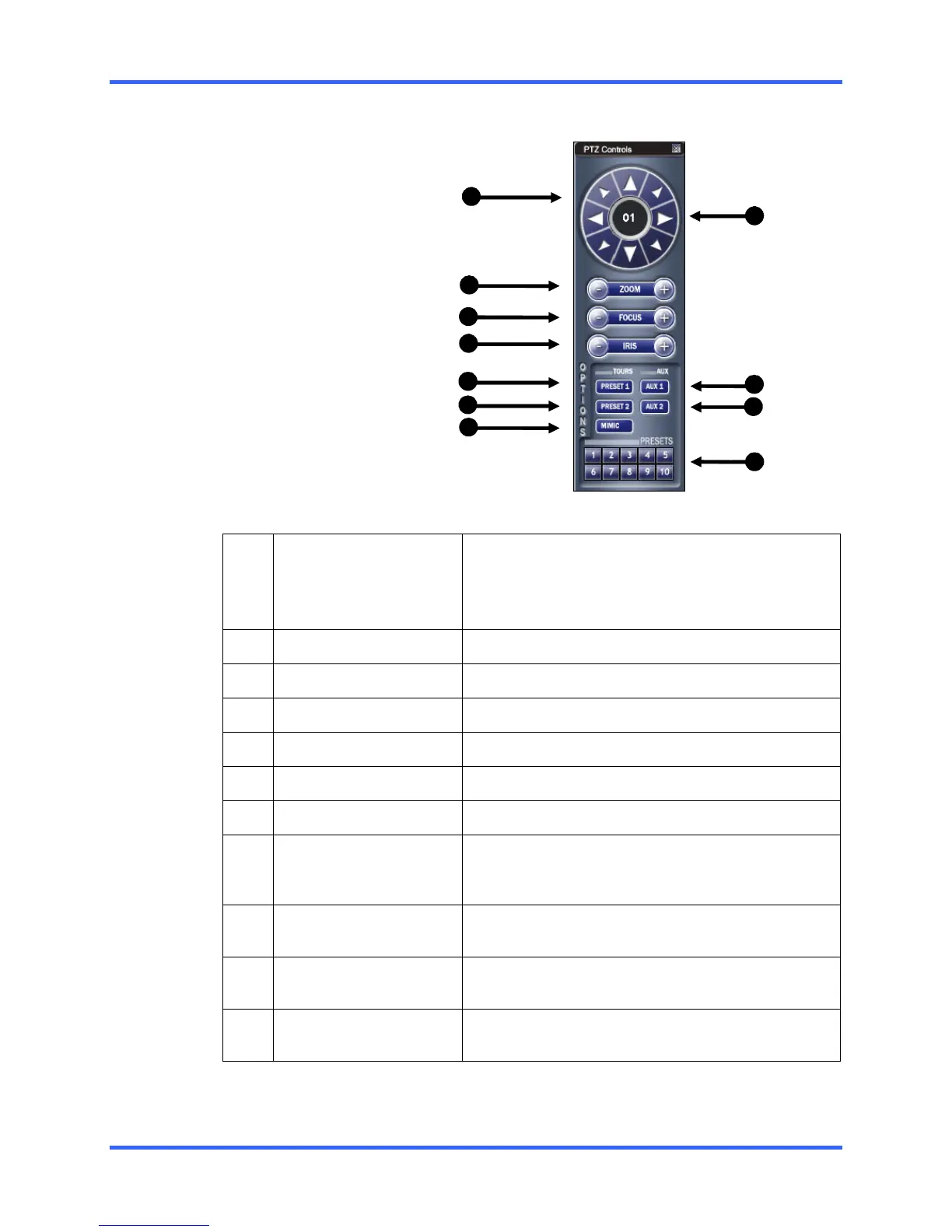

7.9.1 THE PTZ CONTROLLER
3
2
1
6
5
4
7
10
9
8
11
1 Direction Controls
There are 8 directions buttons that move the PTZ.
NOTE: Only 4 of the buttons work for all protocols
(UP, DOWN, LEFT, RIGHT). 8 Directions are
available only for select protocols.
2 Zoom
This option Zooms the camera in and out.
3 Focus
This option Focuses the PTZ camera.
4 Iris
This option adjusts the Iris on the PTZ.
5 Preset 1 Tour
This option activates the Preset 1 Tour.
6 Preset 2 Tour
This option activates the Preset 2 Tour.
7 Mimic Tour
This option activates the Mimic Tour.
8 Camera Number
This displays the camera number you are currently
controlling. To change the camera, simply click on
the video of the camera you wish to control.
9 Aux 1
This option activates a different option for each
protocol.
10 Aux 2
This option activates a different option for each
protocol.
11 Preset Controls
These buttons activate the corresponding PTZ
Preset.
