FUSION DVR Digital Recording and Transmission System

3–6

3.7 LOOPING OUTPUTS

The 8 and 16 Channel DVR units may have up to 16 Looping outputs.

Depending on the destination of the outputs, each output may have to be terminated.

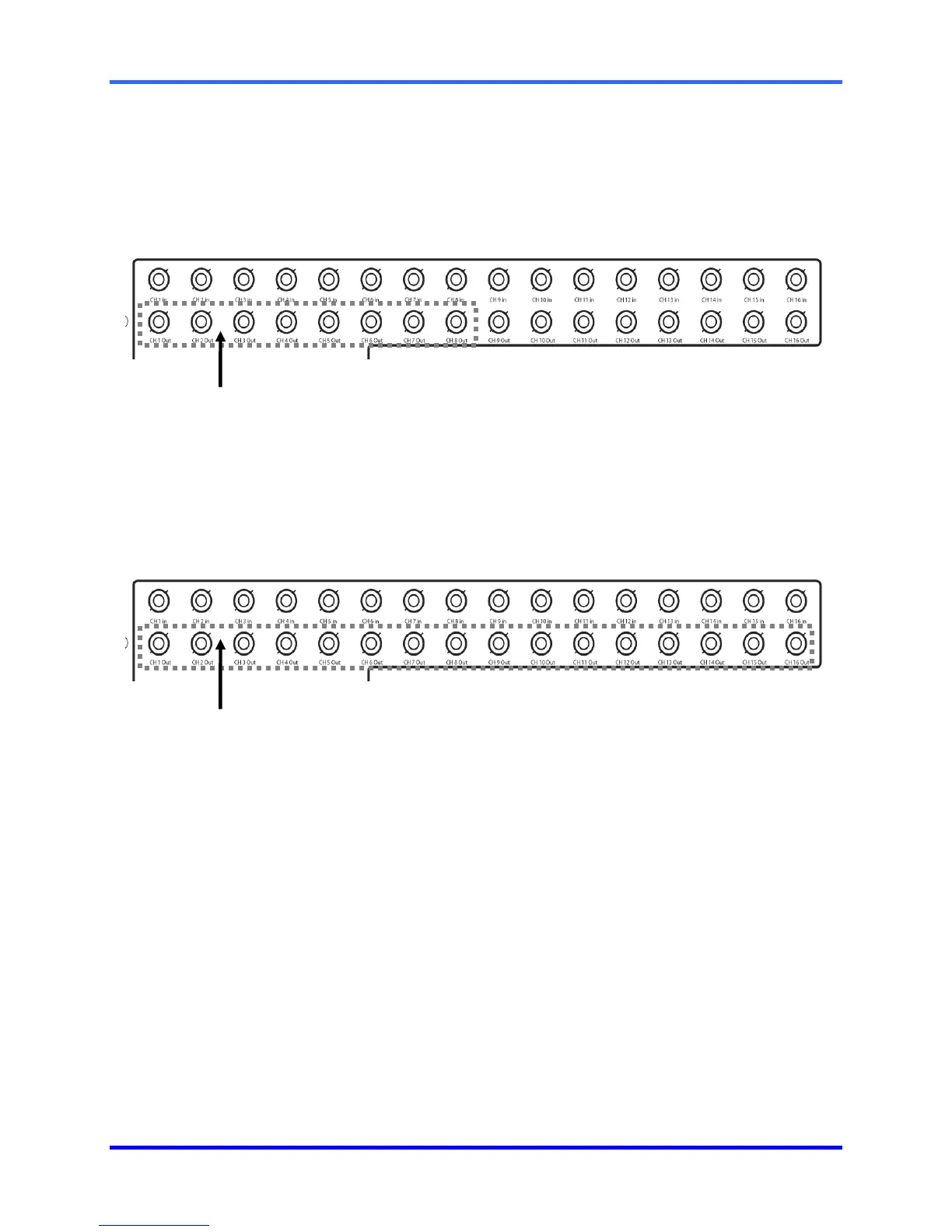

8 Channel DVR

16 Channel DVR

The Video inputs are BNC connectors. Make sure there is a video source connected to the input and

then connect a cable to the Channel Out. The looping outputs can be connected to video monitors or

VCR’s. Consumer VCR’s that use RCA connectors may require a BNC-RCA adapter.

Outputs

# 1-8

Outputs

# 1-16
