3.10 CONNECTING CONTROL OUTPUTS TO THE DVR
Each DVR unit may have up to 16 Control Outputs. These outputs can be used to
trigger devices such as Sirens, Phone Dialers, Lights, and any other relay activated
device.

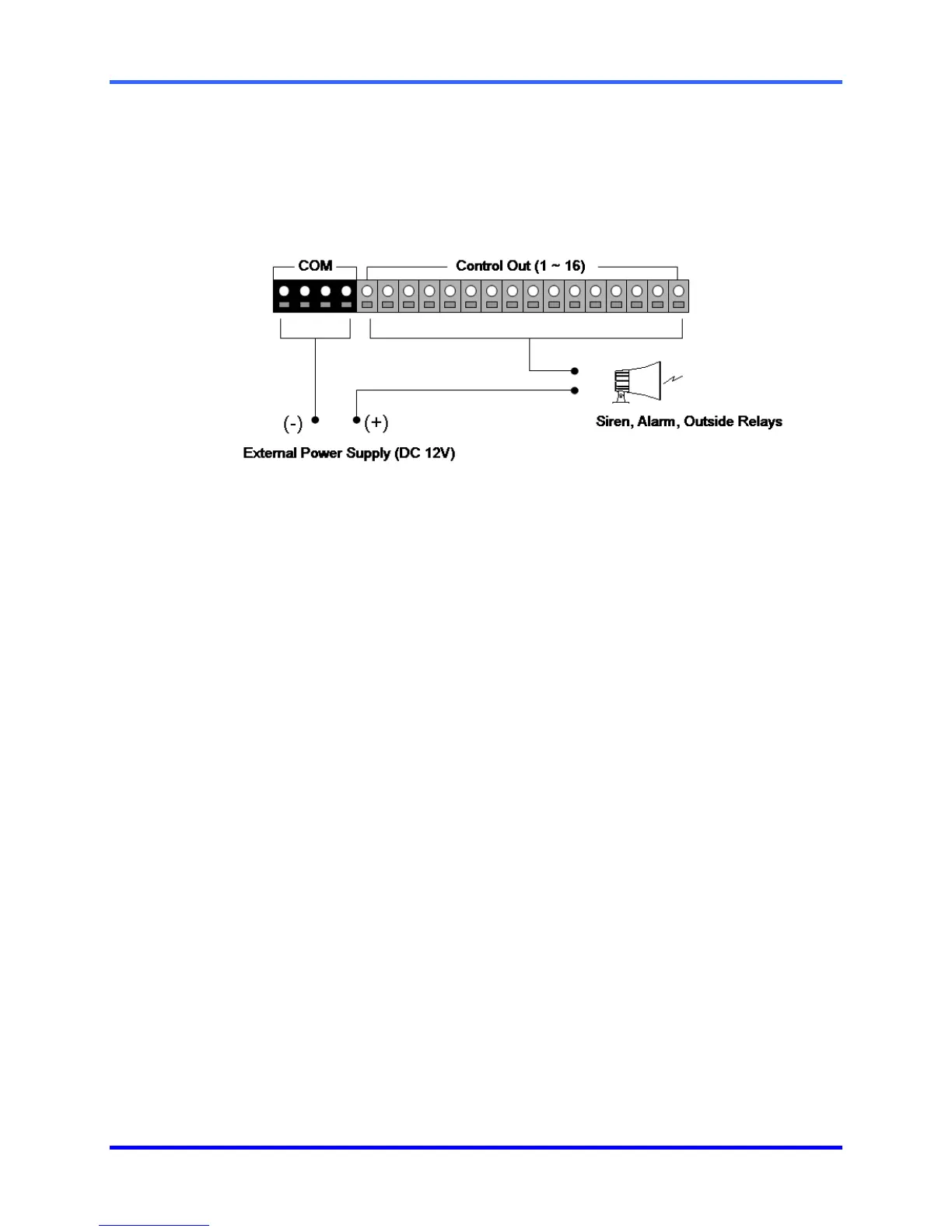

Control
Output
• Use 12V, below 300mA. For controlling lights or other high current devices, use an
external relay.
• Maximum voltage is 24V AC @ 1 amp
• Output uses a Form C Relay (NC-C-NC)

Honeywell FUSION Specifications

General

Recording Resolution	Up to 1080p
Operating System	Embedded Linux
Compression	H.264
Video Inputs	4, 8, 16
Video Output	HDMI, VGA
Network Interface	10/100 Mbps
Channels	4, 8, 16
Remote Viewing	Yes
Alarm Inputs	4
Operating Temperature	0°C to 40°C (32°F to 104°F)
Audio Inputs/Outputs	1/1 (RCA)
