Accessing the Camera

2 Accessing the Camera

This chapter contains the following sections:

• Installing the Unified Tool, page 3

• Discovering Your Camera on the Network, page 5

• Assigning a New IP Address to Your Camera, page 6

• Upgrading the Camera’s Firmware, page 6

• Accessing the Camera from a Web Browser, page 7

Installing the Unified Tool

To get the installation package of Unified Tool:

• Browse to https://mywebtech.honeywell.com

, login, navigate to Download Center 

Video  IP Cameras  Camera Discovery Tools & Utilities  Honeywell Unified Tool.

Download and unzip the installation package of Unified Tool to your computer.

• Copy the installation package of Unified Tool from the CD along with the package of the

camera to your computer.

To install the Unified Tool:

1. Double-click the installation program in the installation package.

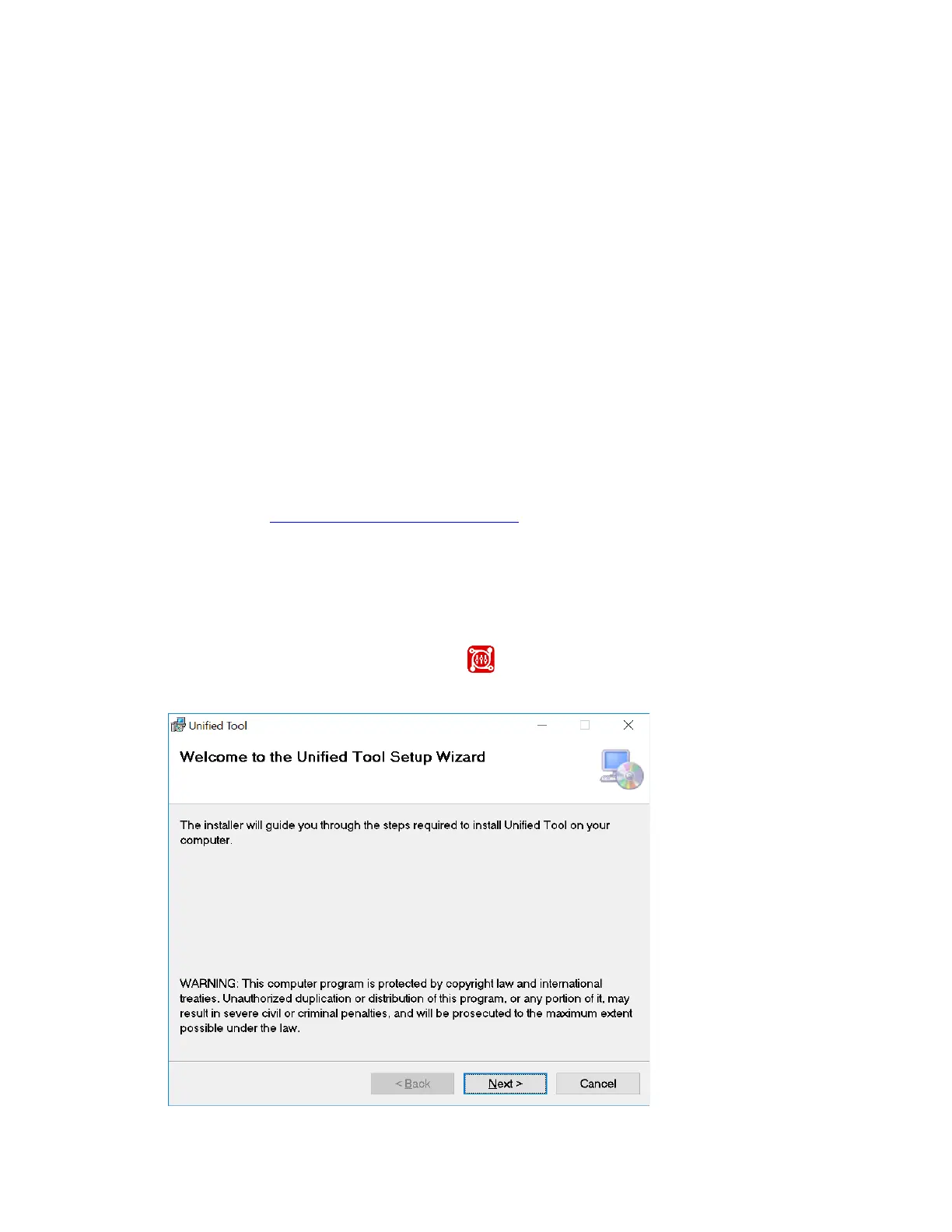

Figure 2-1 Install Unified Tool
