Configuration | 43
800-22740 - A - 02-2017

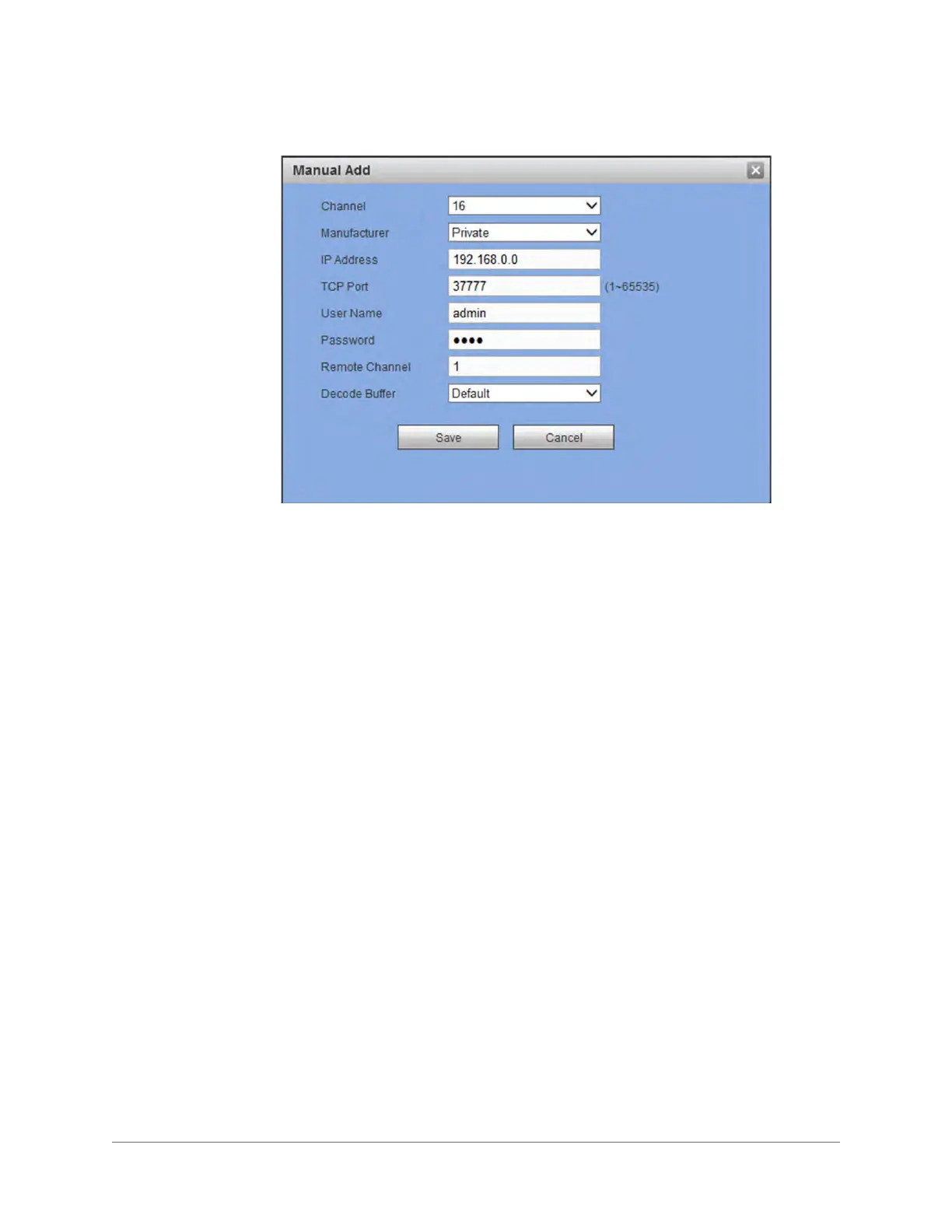

Figure 3-9 Manual Add Interface
a. Manually configure the following settings:
b. Click Save. The newly added camera appears in the Added Device list.
c. If you want to save your settings and exit the Settings menu, click OK.
Importing a Camera List
By clicking Import, you can import a camera list that is saved on your computer.
Exporting a Camera List
By clicking Export, you can export the current camera list to be saved on your computer.
•Channel Select from a drop-down menu of options.
• Manufacturer Select Private, Panasonic, Sony, Dynacolor, Samsung, AXIS,
Arecont, ONVIF, PSIA, or General.
• IP Address Enter the IP address for the camera.
• TCP Port Enter the TCP port for the camera. (Optional)
•User Name Enter a username.
• Password Enter a password.
• Remote Channel
Number
Select a video stream, or multiple video streams, from a device.
• Decode Buffer Select a decode buffer, from Default, Real Time, or Fluent.
