Document 800-26311_ A - February 2020

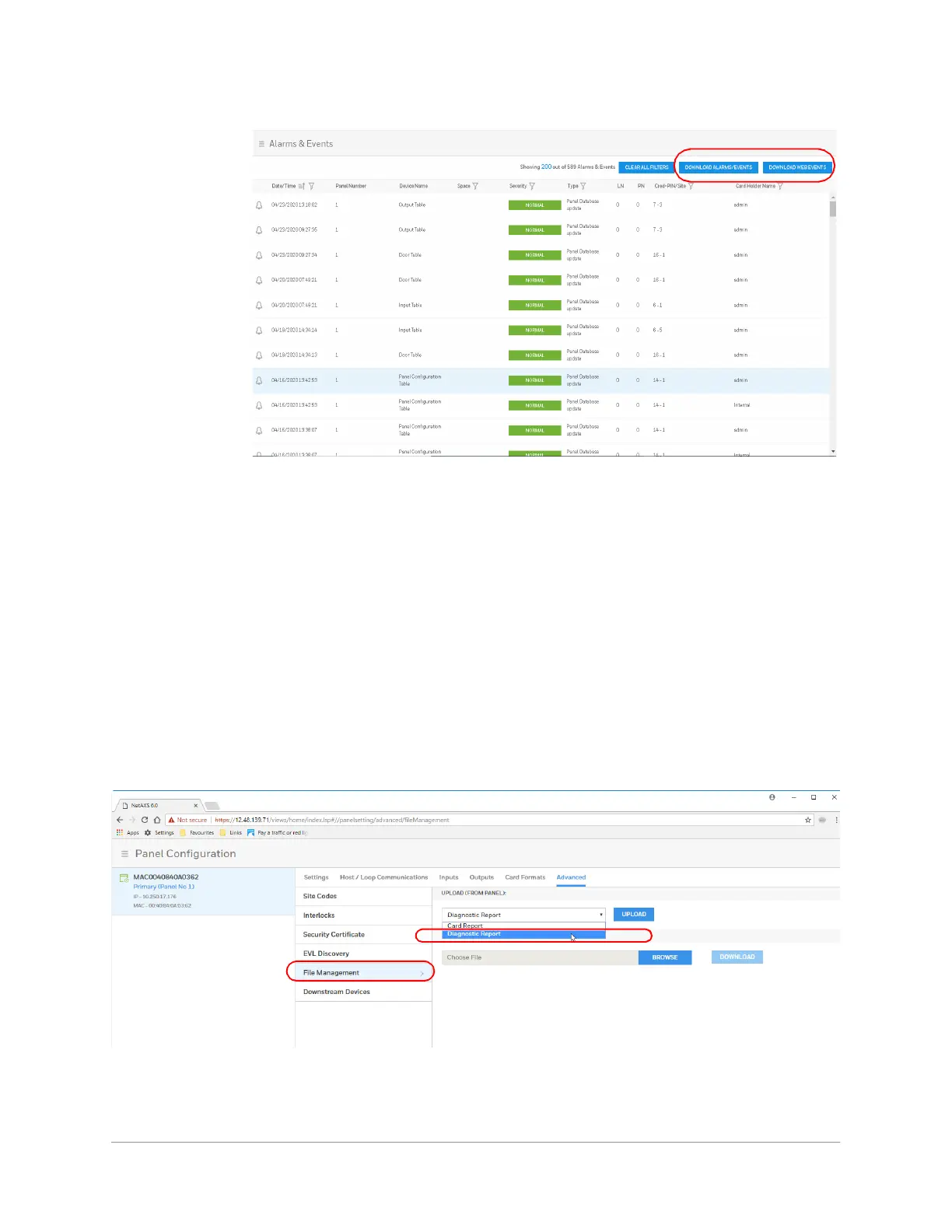

Figure 3-7 Alarms & Events Window
When you click on one of the download events buttons, a dialog box pops up to advise
that the file you are downloading is not secure, and that you save that file in a secure
location. It then asks for you to confirm that you want to download filtered
Alarms/Events or Web Events.
2. Click OK to confirm.
An excel spreadsheet report is generated and appears in the lower tool-bar of your
browser.
3. Click to open the report in Excel.
Generating Diagnostic Reports
In the File Management window, you can download Card and Diagnostic reports.
1. Navigate to the File Management window: Click Panel Configuration > Advanced >
File Management.
Figure 3-8 File Management Window
2. Select Diagnostic Report from the drop-down menu, then click UPLOAD.
