MPA1 User Guide
Configuring Host/Loop Communications
To maintain your MPA1 system configuration or to monitor its status, you must connect to
the panel using one of three modes:
• Host mode (monitor only) – a host software system, such as WIN-PAK™ or MAXPRO Cloud,
connects to the panel (through the primary panel, which has an on-board PCI communications
adapter). It enables you to monitor the system status.
• Web mode (configure and monitor) – the web server connects to the panel and enables you to
configure the panel and monitor system status.
Setting Communication Parameters for Host Mode
1. Navigate to Host/Loop Communications:
• Dashboard > Panels > Host/Loop Communications, or
• Menu > Panel Configuration > Host/Loop Communications.
2. Click to select WIN-PAK.

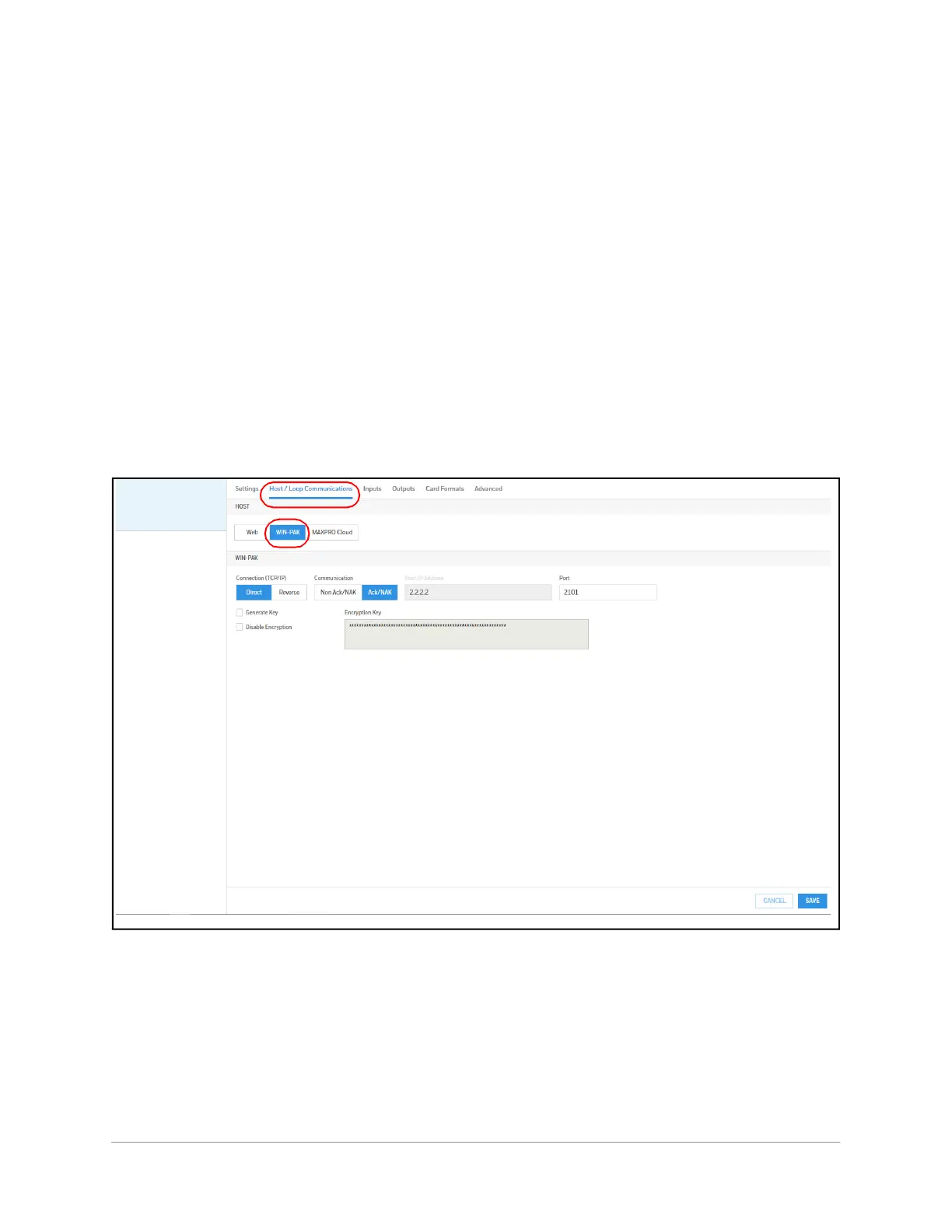

Figure 2-6 Selecting WIN-PAK on the Host/Loop Communications Tab
