84 MPA2C3 Installation Guide

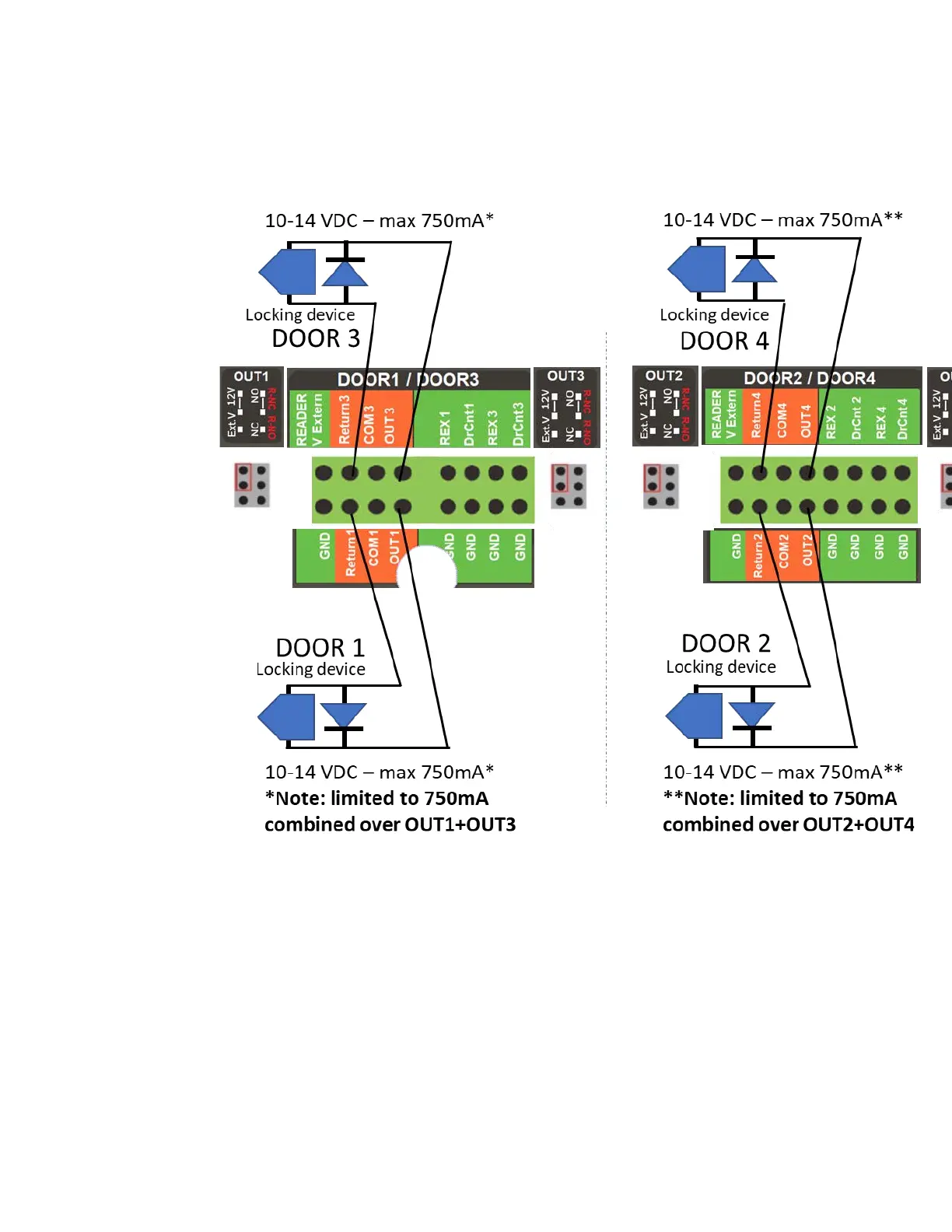

The below figure shows the connection and relevant jumper setting when internal
power is used to the outputs in a 4-door panel.
Figure 3-21 The connection and relevant jumper setting
Note: Always apply a surge device, e.g a diode in antiparallel configuration at the locking
device.
