MPA2C3 Installation Guide 83

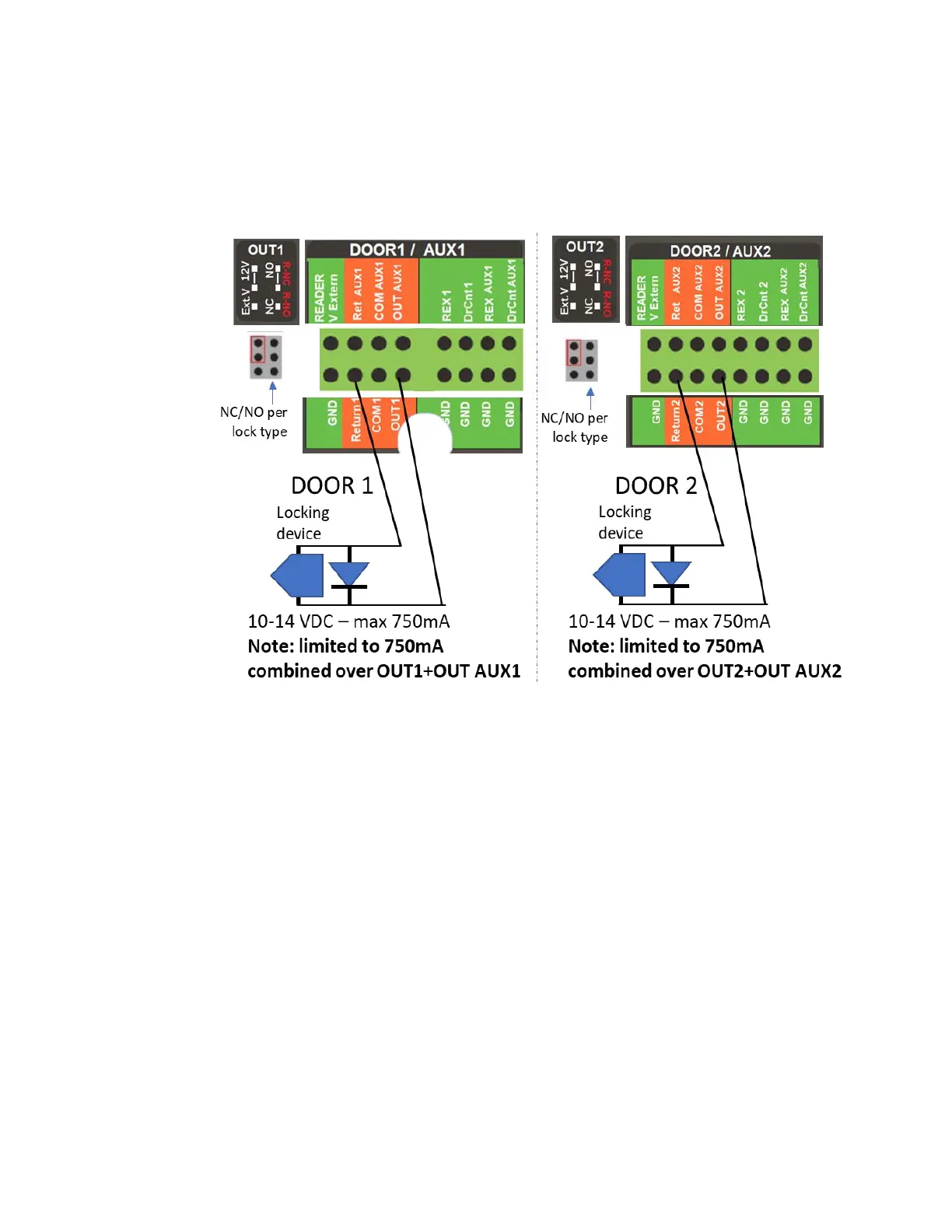

Figure 3-20 The connection and relevant jumper setting when internal power is used to

the outputs in a 2-door panel

Note: Always apply a surge device, e.g a diode in antiparallel configuration at the locking

device.
