22 EVS Series Manual — P/N LS10062-001SK-E:D 3/15/2022
EVS Device Installation Installing the EVS-50W
Connect the VBUS from the EVS-VCM to the EVS-50W amplifiers as shown in Figure 4.15.
4.3.7 SBUS Wiring
This section contains information on how to connect up to four EVS-50W amplifiers onto the main control SBUS. Refer to the FACP manual
for SBUS specifications. Wire the SBUS as shown in Figure 4.16.
See Section 4.10 for information on setting SBUS addresses.
4.3.8 Connecting AC Power
The AC inputs are rated as 120 VAC, 60 Hz (transformer P/N 115061).
To install the AC transformer into the EVS-50W cabinet follow these steps:
1. Open the cabinet door.
2. To access cabinet interior, open the dead-front panel by removing the upper screw and the mid-door retaining screw.
OUT
–+
IN
–+–+AB
SBUSOUT
–+
IN
–+–+AB
SBUS
AUX
CMD2 CMD1
AUDIO
COMMON
IN
GND
VBUS IN 1
VBUS OUT 1
+
+

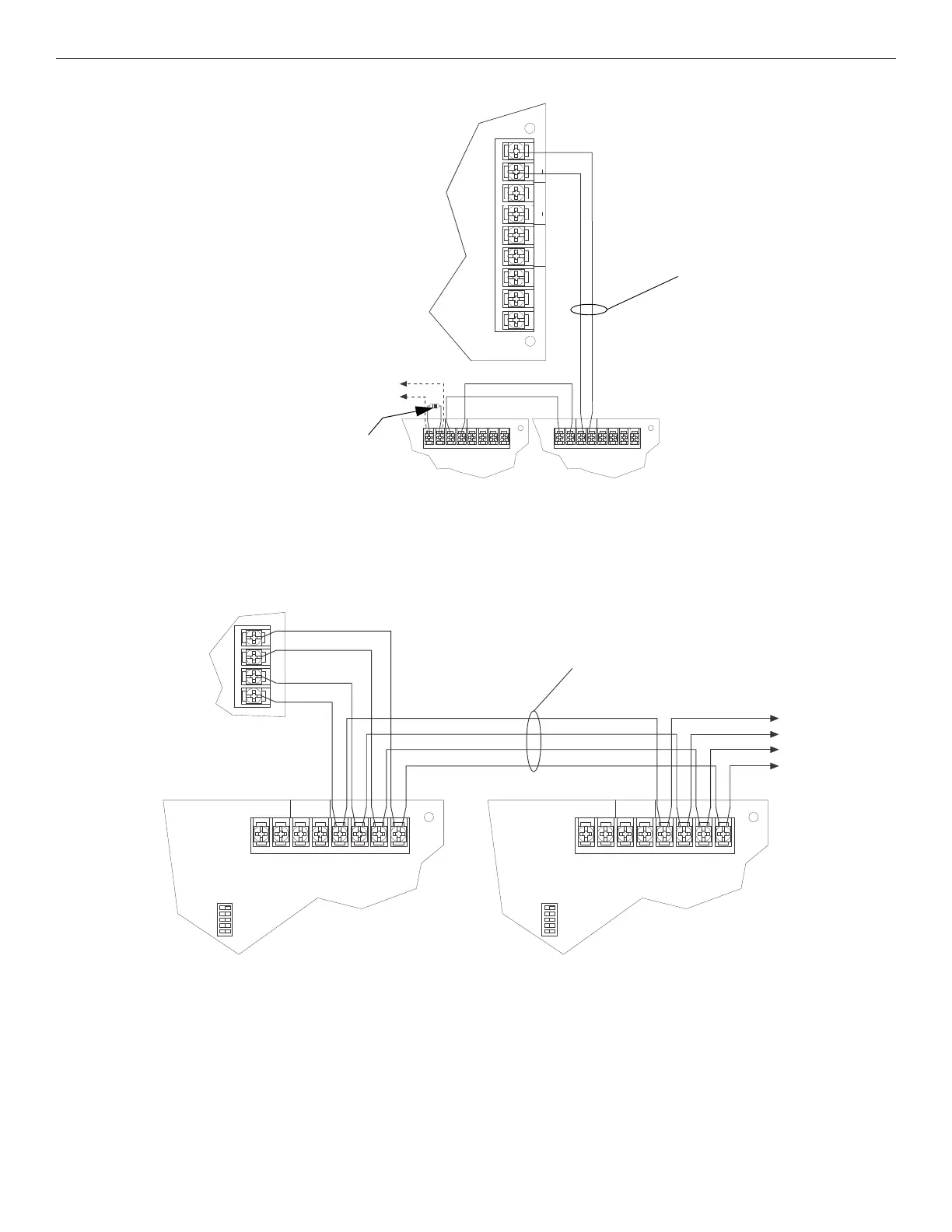

Figure 4.15 VBUS Wiring for the EVS-VCM to the EVS-50W
EVS-VCM
supervised,
power-limited
Class B
to next EVS-50W
15kΩ EOL at last
amplifier on the VBUS
EVS-50W
EVS-50W
VBUS connections
3 Vrms, 5mA max.
ON
12345
OUT
–+
IN
–+ –+AB
SBUS
O
N
1
2
3
4
5
OUT
–+
IN
–+ –+AB
SBUS
SBUS
–+AB
FACP
To next
EVS-50W
supervised,
power-limited
Class B
Figure 4.16 Connecting EVS-50W Amplifiers to the SBUS
EVS-50W
EVS-50W
