MAN0984_Iss 4_01/19 Touchpoint Plus
Pt. No. 3011M5001 40 Technical Handbook

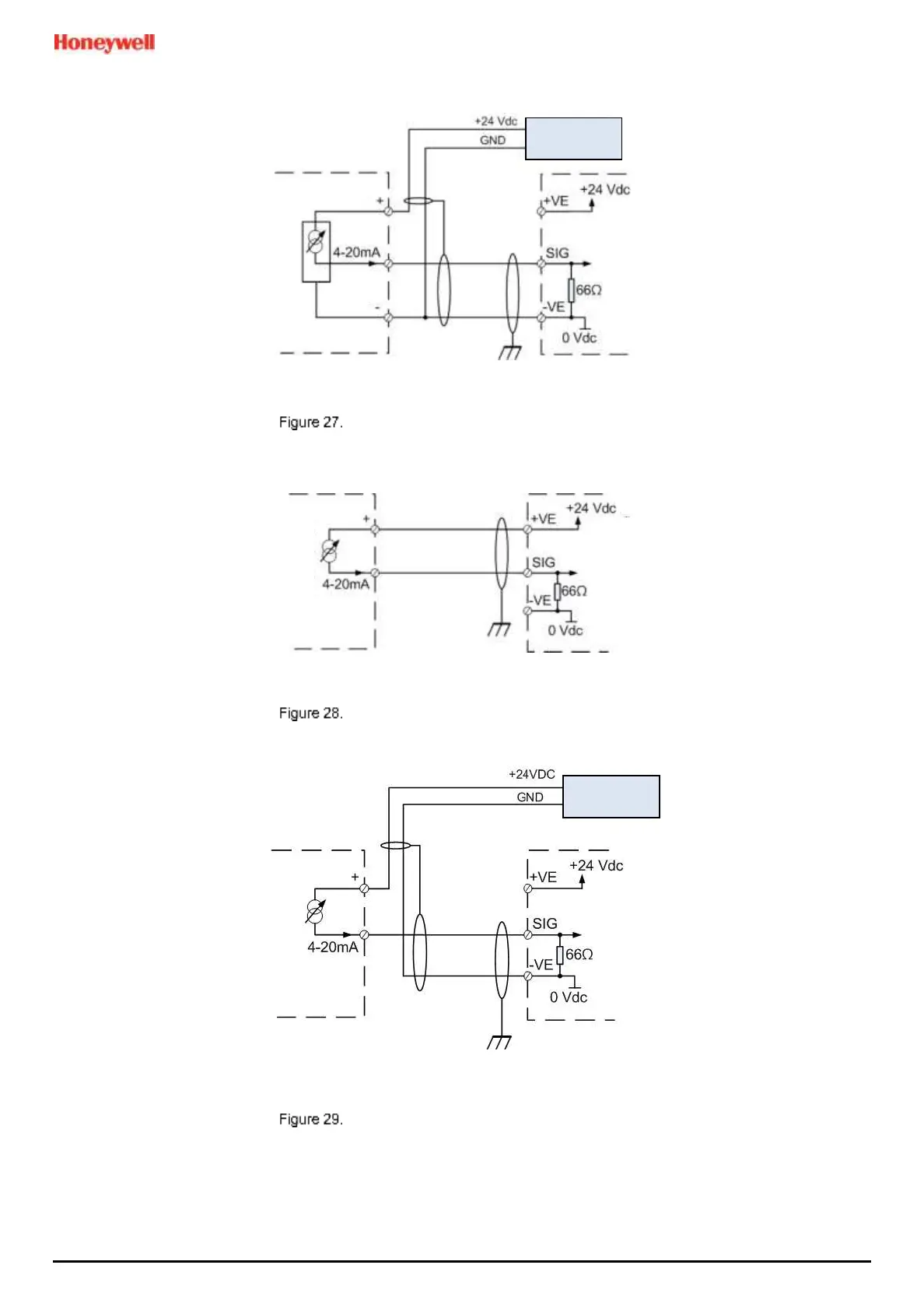

Three Wire Device Powered by an External Source
Two Wire Device Powered by a mA Input Module
Two Wire Device Powered by an External Source
Touchpoint Plus
mA Input Module
Sensor
Touchpoint Plus
mA Input Module
Sensor
External 24 VDC
Supply
Touchpoint Plus
mA Input Module
Sensor
External 24 VDC
Supply
