Electrical Power Connection and Interfacing
MAN0984_Iss 4_01/19 Touchpoint Plus
Pt. No. 3011M5001 41 Technical Handbook

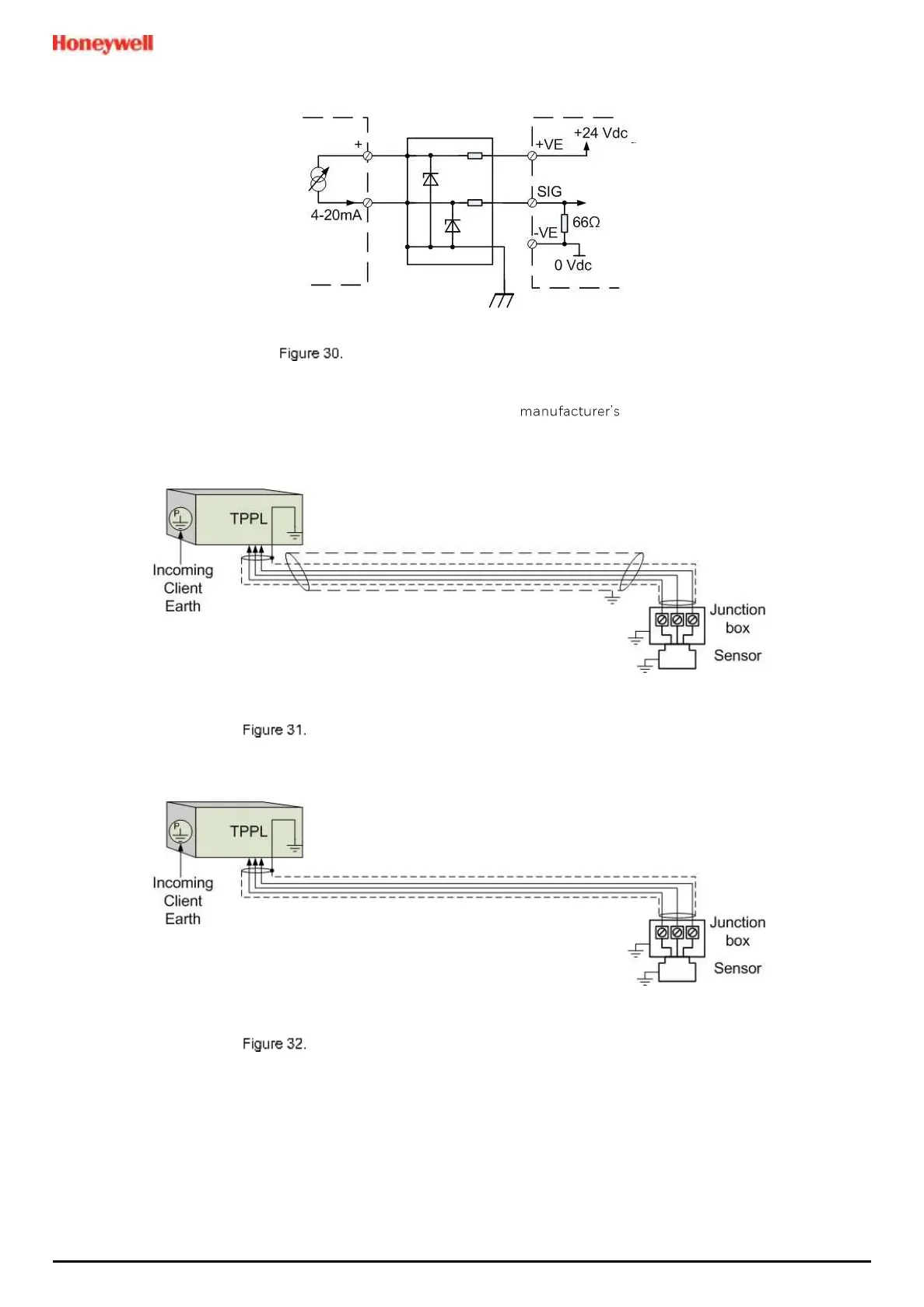

Two Wire Device Barrier Device Powered by a mA Input Module
Note: For intrinsically safe (I.S.) field devices, refer to the device instructions for details of suitably
approved I.S. barriers and interconnections.
Grounding for Screened Cable with Armour and with Metal Junction Box and Sensor
Grounding for Screened Cable, No Armour, with Metal Junction Box and Sensor
Touchpoint Plus
mA Input Module
Sensor
BARRIER
