Honeywell UDC 2300 - Figure 2-12 External Solid State Relay Option (Internal Open Collector Output); Figure 2-13 Three-Position Step Control Connections

Installation
4/00 UDC2300 Universal Digital Controller User Manual 15
10 Amp Solid State
Relay Assembly
5-
4+
L2 / N
L1
LOAD
L1/H
L2/N
+
-
Green
White
Black
Relay
Assembly
24863M
AC
This Solid State relay is rated at 15 Amps at 25°C, linearly derated
to 10 Amps at 55°C.
Customer should size fuse accordingly
1
1
10 amp Fast Blo
Green
Black
White
OUTPUT1 OUTPUT2
9-
10+
L2 / N
L1

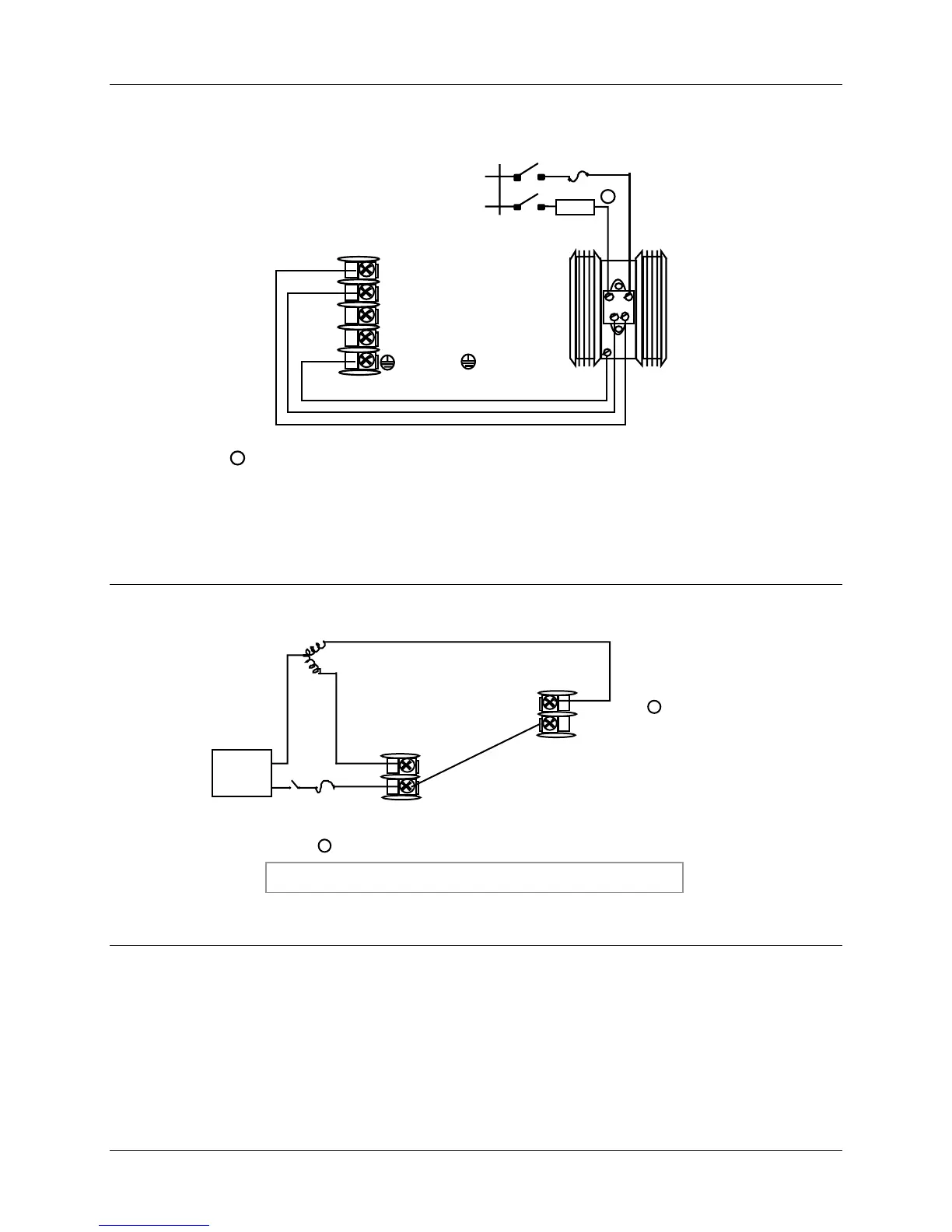

Figure 2-12 External Solid State Relay Option (Internal Open Collector Output)
9
10
5+
4-
Control Relay #2
Motor
Power
Supply
Close (CCW)
Open (CW)
Control
Relay #1
24864M
Alarm #2 is not available with Three Position Step Control.
1
1
2 amp Fast Blo
See Figure 2-14 for Alarm and Duplex Output connections.
Figure 2-13 Three-Position Step Control Connections
