HP 382 Hardware Configuration Guide

Model 382 Controllers
Medium-Resolution System Board
There are two jumpers on the Model 382 controller's medium-resolution system
board for on-board graphics configuration. The jumpers are marked COLOR
and ENABLE. The default condition is with both jumpers nearest the markings.
Moving the ENABLE jumper causes the on-board graphics circuitry to be
disabled, allowing a supported graphics board to be used in the DIO slot. Only
the COLOR graphics type is supported on Model 362 and 382 controllers. Refer
to Figure 7-2 for jumper positions.
GRAPHICS
~ ~
5 ~
o 0
mrn

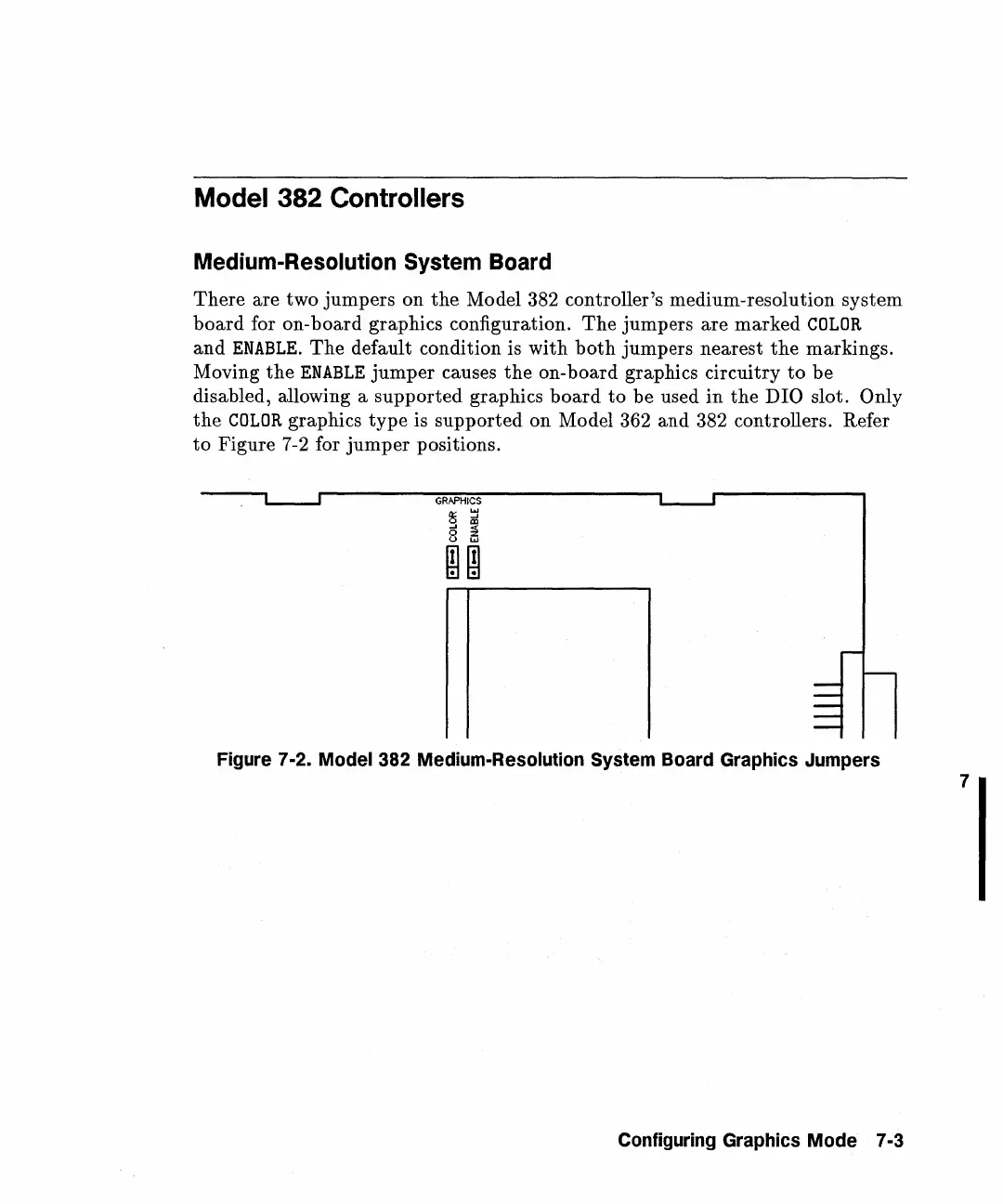

Figure 7-2. Model 382 Medium-Resolution System Board Graphics Jumpers
Configuring Graphics Mode 7-3
