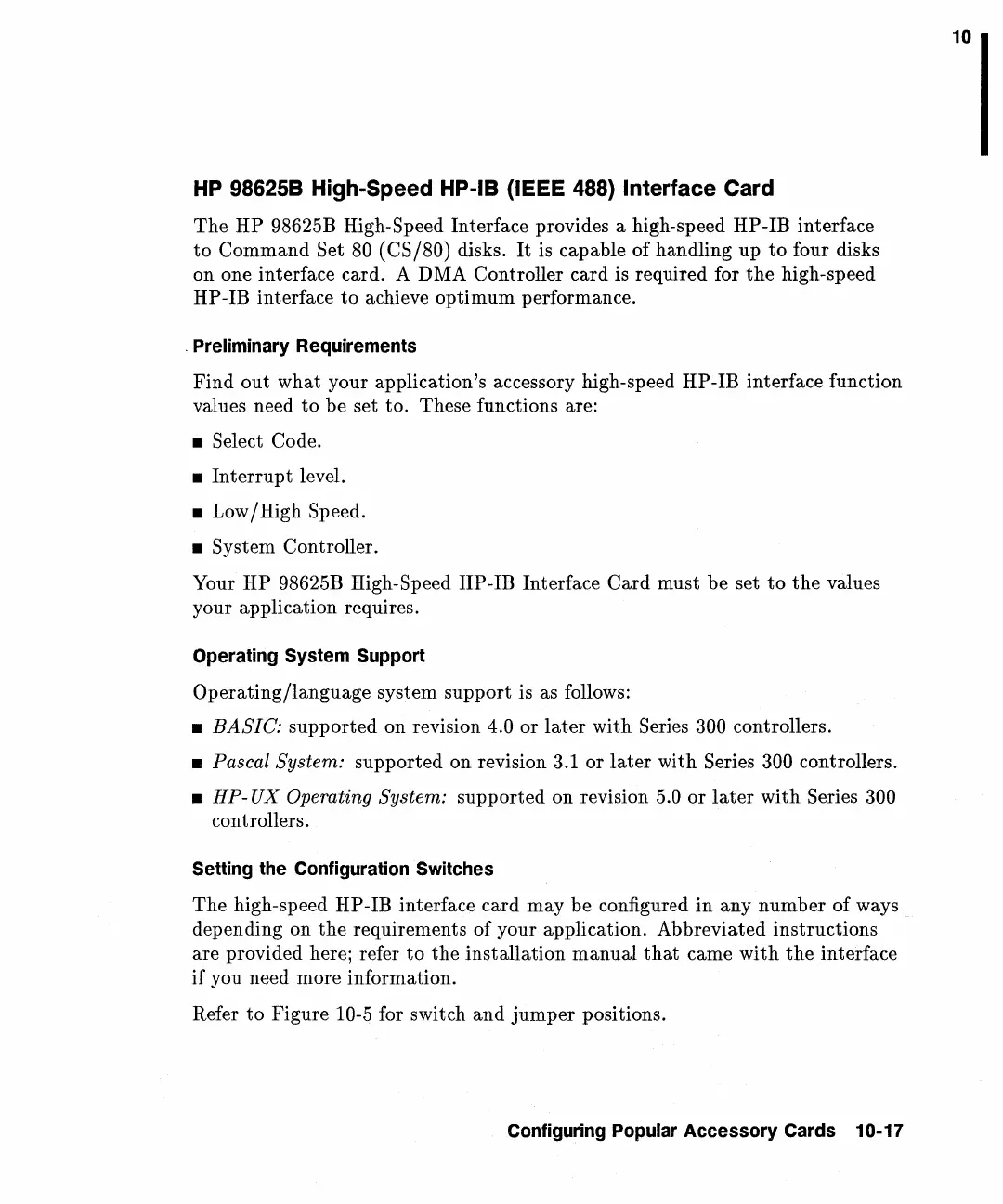

98625B High-Speed HP-IB (IEEE 488) Interface Card
The
HP
98625B High-Speed Interface provides a high-speed HP-IB interface
to
Command
Set 80
(CS/80)
disks.
It
is capable
of
handling
up
to
four disks
on one interface card. A DMA Controller card is required for
the
high-speed
HP
-IB interface
to
achieve
optimum
performance .
. Preliminary Requirements
Find
out
what your application's accessory high-speed HP-IB interface function
values need
to
be
set to. These functions are:
• Select Code.
•
Interrupt
level.
• Low/High Speed.
• System Controller.
Your
HP
98625B High-Speed HP-IB Interface
Card
must be set
to
the
values
your application requires.
Operating System Support
Operating/language
system
support
is as follows:
• BASIC:
supported
on
revision 4.0
or
later
with
Series 300 controllers.
• Pascal System:
supported
on
revision 3.1
or
later
with Series 300 controllers.
• HP-
UX
Operating System:
supported
on revision 5.0
or
later
with
Series 300
controllers.
Setting the Configuration Switches
The
high-speed HP-IB interface card
may
be configured
in
any
number
of
ways
depending on
the
requirements
of
your application. Abbreviated instructions
are provided here; refer
to
the
installation
manual
that
came
with
the
interface
if
you need more information.
Refer
to
Figure 10-5 for switch
and
jumper
positions.
Configuring Popular Accessory Cards 10-17
10
