HP 382 Hardware Configuration Guide

10
o
-
-
1 0
sa r~ 1
9
CODE ~ :Ul
8 = 4
~r~16U2
Interrupt Level Switch
P1
1 0
LSr"T 1-ADRS-1
~ : HP-IB
= 4
MS = SYS CTL
U17
1 System Controller
o Non-system controller
- Fl
= +5V,4A
...............

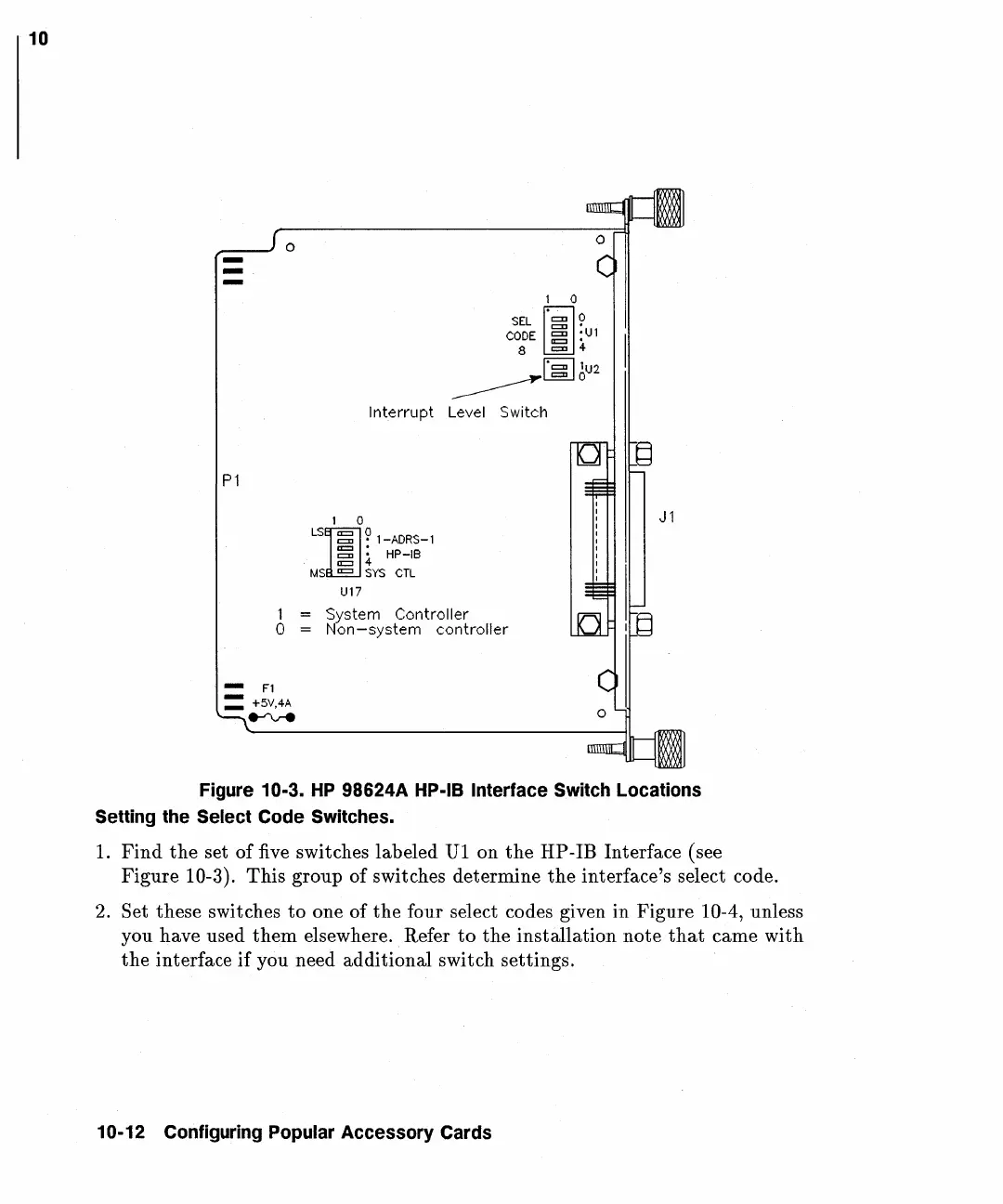

Figure 10-3. HP 98624A HP-IB Interface Switch Locations
Setting the Select Code Switches.
1. Find the set of five switches labeled U1 on the HP-IB Interface (see
Figure 10-3). This group of switches determine the interface's select code.
2. Set these switches to one of the four select codes given in Figure 10-4, unless
you have used
them elsewhere. Refer to the installation note that came with
the interface if you need additional switch settings.
