6
52
Mbyte Hard Disk Drives
Setting Configuration Jumpers
Caution
Although
the
device is well-protected from physical shock
when installed
in
the
controller,
it
is very easily
damaged
when
separate. Avoid dropping
or
striking
the
device. Handle
it
gently
at
all times.
Figure 6-2 shows you
the
configuration
jumper
locations.
Jumpers
and
their
settings are explained
in
Table 6-1.
Note
the
jumpers
in
the
back
of
the
drive are installed as follows:
•
Jumpers
installed on pins = "in."
•
Jumpers
removed from pins = "out."

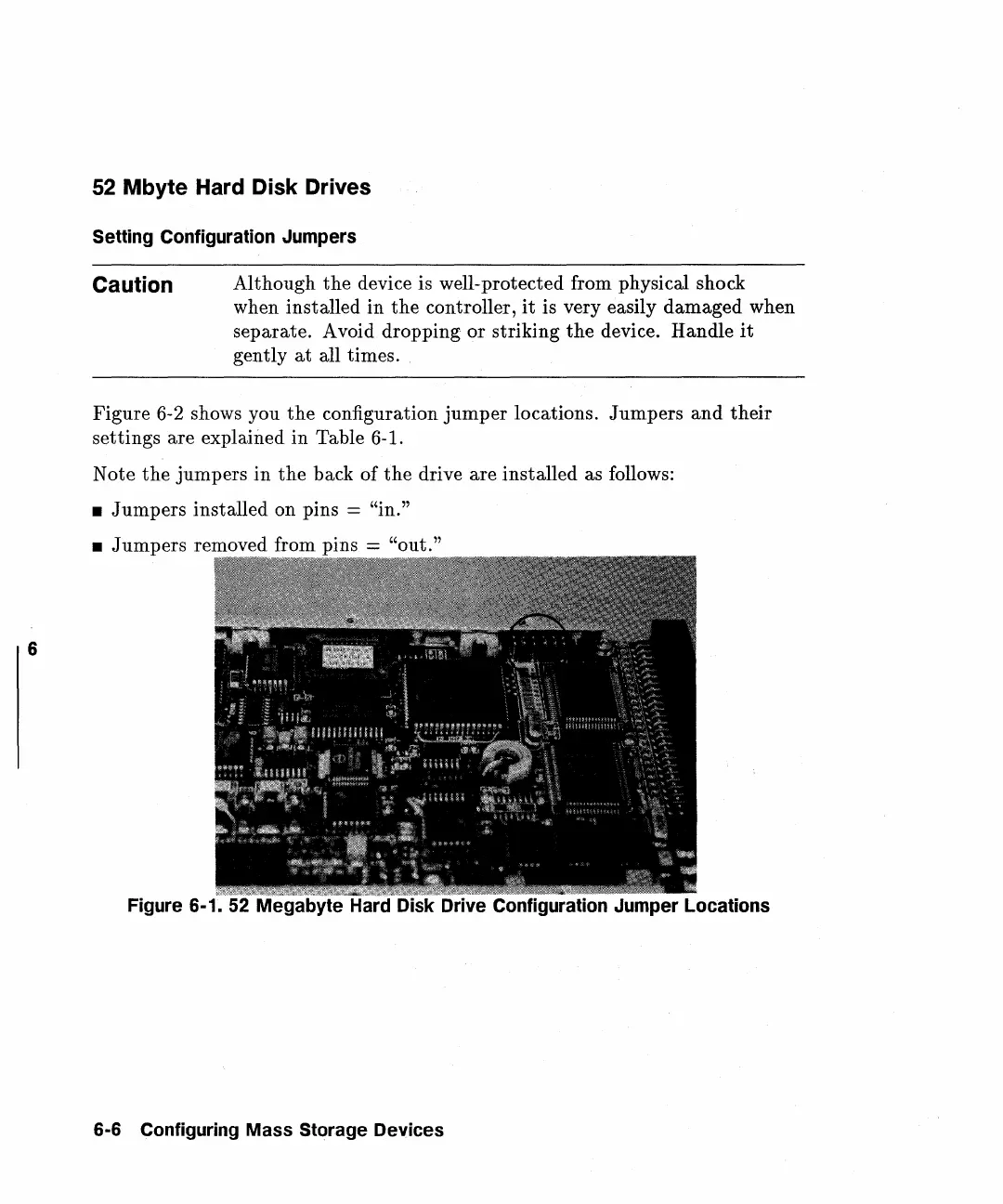

Figure 6-1. 52 Megabyte Hard Disk Drive Configuration Jumper Locations
6-6 Configuring Mass Storage Devices
To Next Page
