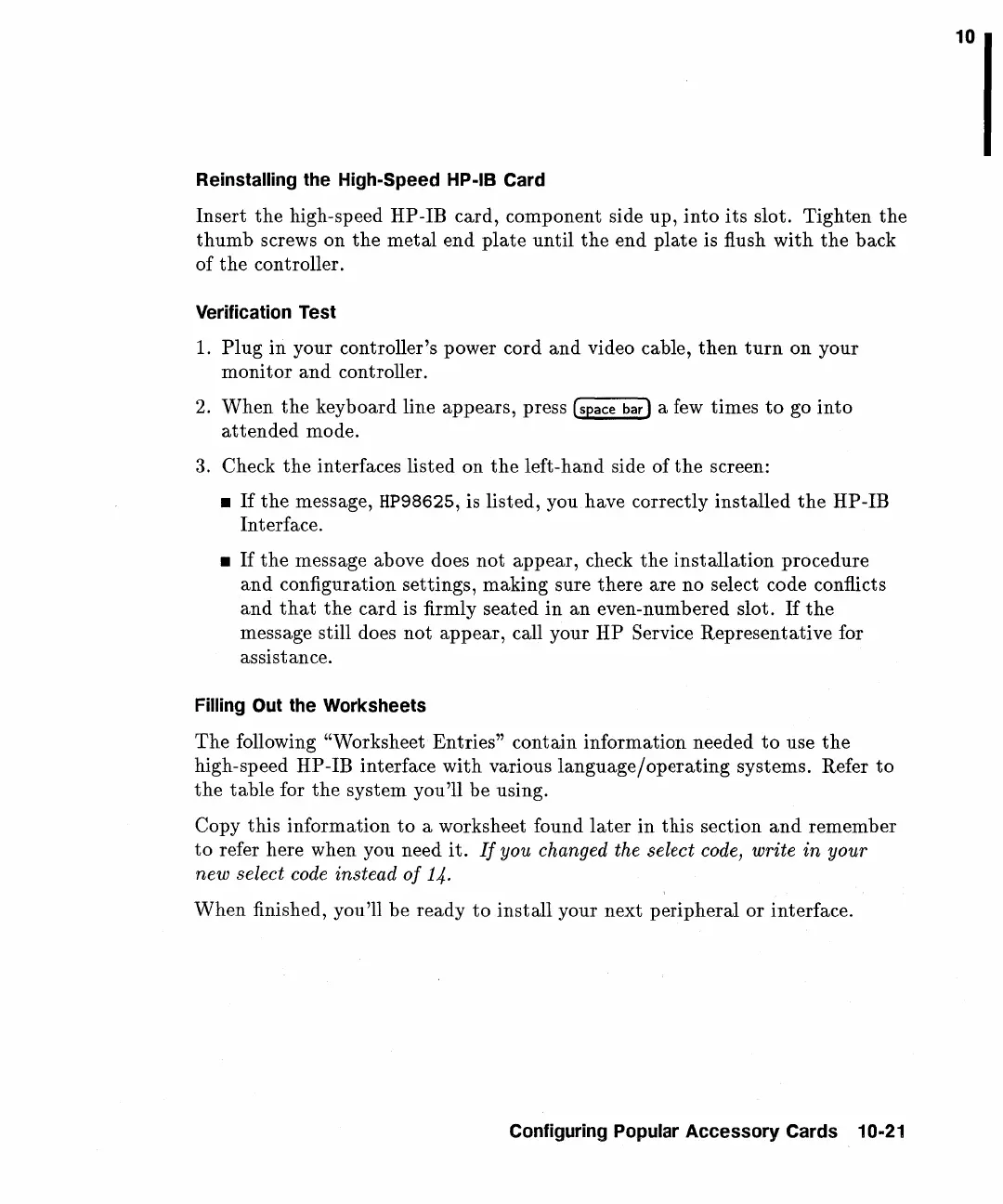

Reinstalling the High-Speed HP-IB Card
Insert
the
high-speed HP-IB card, component side up,
into
its
slot. Tighten
the
thumb
screws on
the
metal
end
plate
until
the
end
plate
is flush
with
the
back
of
the
controller.
Verification Test
1.
Plug
in
your controller's power cord
and
video cable,
then
turn
on your
moni
tor
and
controller.
2.
When
the
keyboard line appears, press
(space
bar) a few times
to
go
into
attended
mode.
3.
Check
the
interfaces listed on
the
left-hand side of
the
screen:
•
If
the
message, HP98625, is listed, you have correctly installed
the
HP-IB
Interface .
•
If
the
message above does
not
appear, check
the
installation procedure
and
configuration settings, making sure
there
are
no
select code conflicts
and
that
the
card is firmly seated
in
an
even-numbered slot.
If
the
message still does
not
appear, call your
HP
Service Representative for
assistance.
Filling Out the Worksheets
The
following "Worksheet Entries" contain information needed
to
use
the
high-speed HP-IB interface
with
various
language/operating
systems. Refer
to
the
table
for
the
system you'll be using.
Copy this information
to
a worksheet found
later
in
this section
and
remember
to
refer here when you need
it.
If
you changed the select code, write
in
your
new
select code instead
of
14.
When
finished, you'll be ready
to
install
your next peripheral or interface.
Configuring Popular Accessory Cards 10-21
