HP 382 - Setting the Select Code; HP 98625 B High-Speed HP-IB Interface Card Switch Locations

10
III
o
I nl

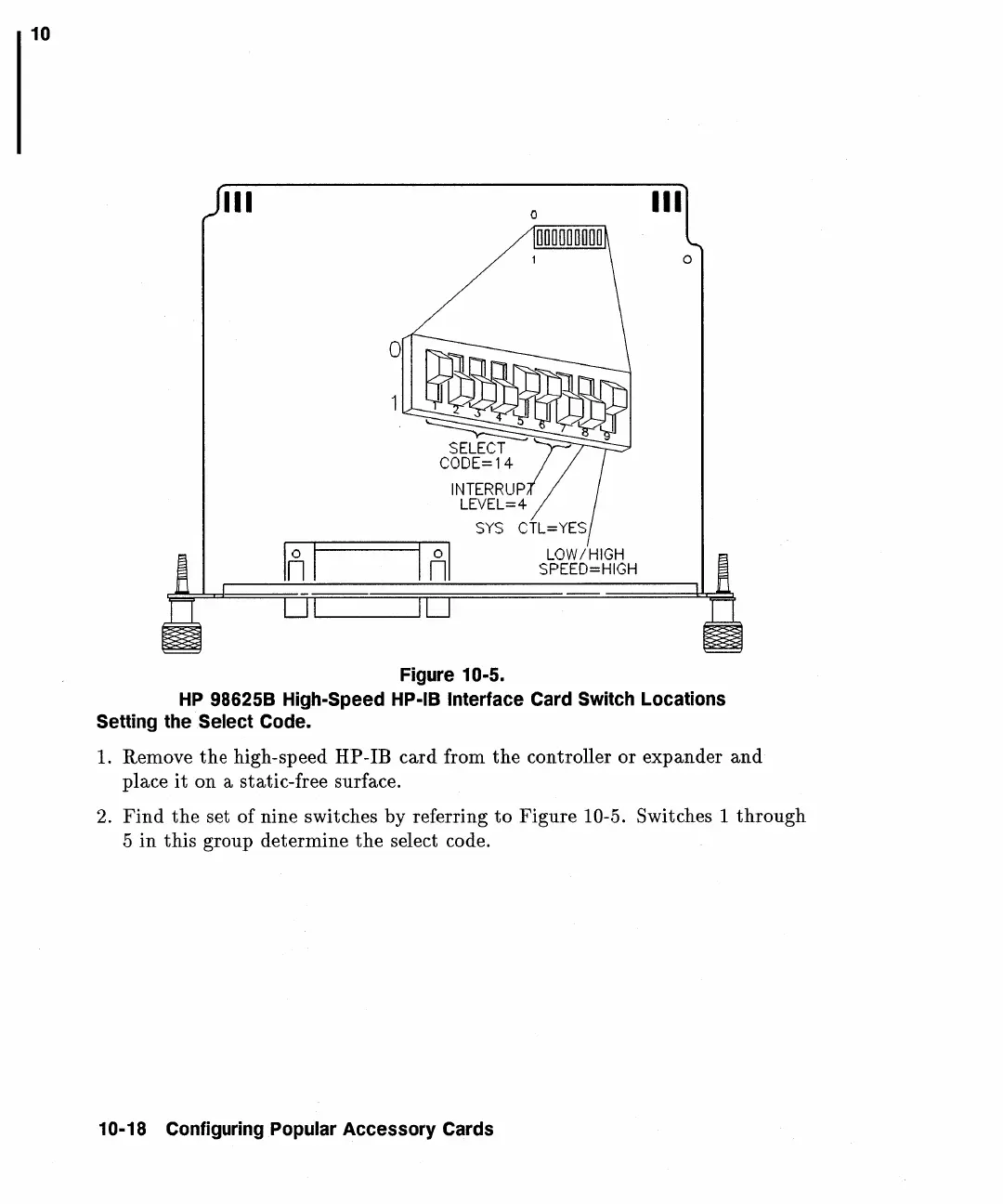

Figure 10-5.
LOW/HIGH
SPEED=HIGH
III
o
HP 98625B High-Speed HP-IB Interface Card Switch Locations
Setting the
Select Code.
1. Remove the high-speed HP-IB card from the controller or expander and
place it on a static-free surface.
2. Find the set of nine switches by referring to Figure 10-5. Switches 1 through
5 in this group determine the select code.
10-18 Configuring Popular Accessory Cards
