HP 382 - HP 98644 A RS-232-C Interface Switch Locations

o
SW1
c=:J
• - - - 1
~---- ... -
~ -·0
SEL CODEY ~ I
INT LVL
MODEM E REMOTE
III III
626

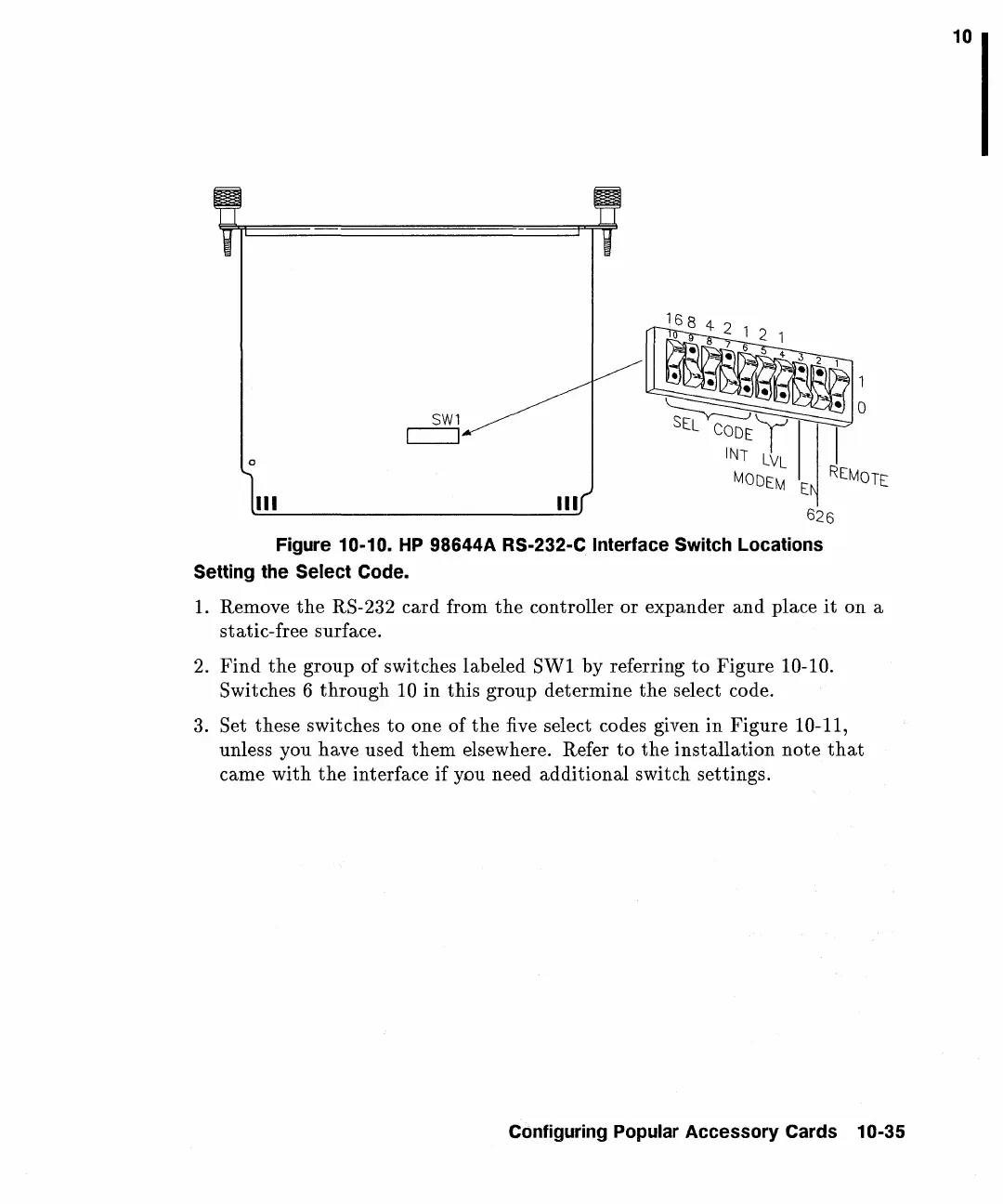

Figure 10-10. HP 98644A RS-232-C Interface Switch Locations
Setting the
Select Code.
1. Remove the RS-232 card from the controller or expander and place it on a
static-free surface.
2. Find the group of switches labeled SW1 by referring to Figure 10-10.
Switches 6 through 10 in this group determine the select code.
3.
Set these switches to one of the five select codes given in Figure 10-11,
unless you have used them elsewhere. Refer to the installation note that
came with the interface if YDU need additional switch settings.
