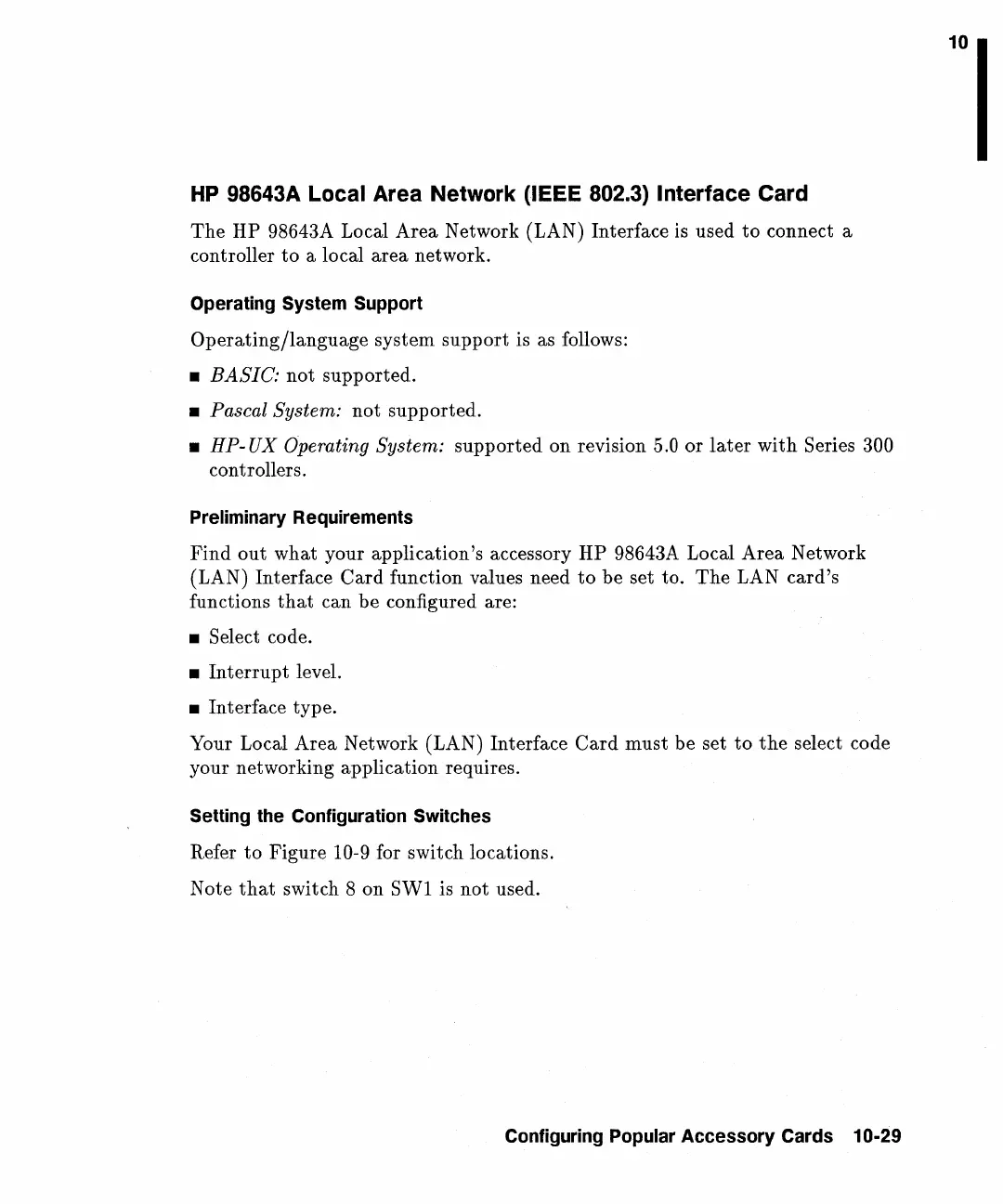

HP
98643A Local Area Network (IEEE 802.3) Interface Card
The
HP 98643A Local
Area
Network (LAN) Interface is used
to
connect a
controller
to
a local
area
network.
Operating System Support
Operating/language
system
support
is as follows:
• BASIC:
not
supported.
• Pascal System:
not
supported.
• HP-
UX
Operating System:
supported
on revision 5.0
or
later
with
Series 300
controllers.
Preliminary Requirements
Find
out
what
your application's accessory
HP
98643A Local
Area
Network
(LAN) Interface
Card
function values need
to
be set to.
The
LAN
card's
functions
that
can be configured are:
• Select code.
•
Interrupt
level.
• Interface type.
Your Local
Area
Network (LAN) Interface
Card
must
be set
to
the
select code
your networking application requires.
Setting the Configuration Switches
Refer
to
Figure 10-9 for switch locations.
Note
that
switch 8 on SW1 is
not
used.
Configuring Popular Accessory Cards 10-29
10
