Introduction
Output/Output 1 and Output 2 Parameter Grouping

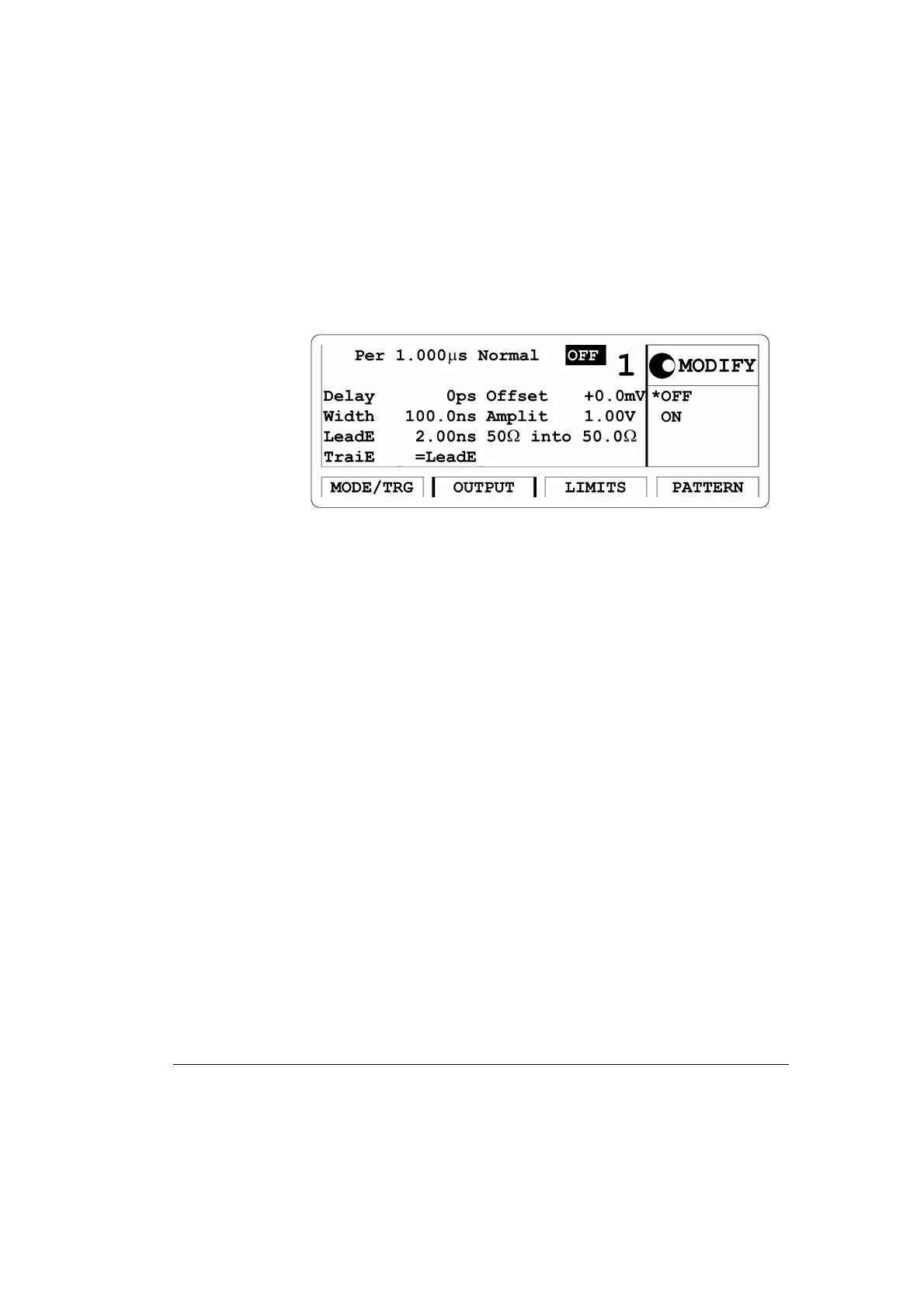

Figure 22 Output Screen of a single channel instrument
The |OUTPUT| screen is standard for a single channel instrument. The
|OUTPUT 1| and |OUTPUT 2| timing and level grouping is configurable
for dual channel instruments.
After selecting
Group Params by: OUTPUT 1/2 in the |CONFIG| screen,
see “Changing Configuration” on page 62, the 2 Output Softkey options
are available. The timing and level parameters are grouped together for
each output.With the exception of period/frequency all parameters can
be individually set for each output.
All parameters can be entered in different formats. For the available
parameter and format selections, please refer to “Setting Timing
Parameter Formats and Values” on page 49. Refer also to “Setting
Level Parameter Formats and Values” on page 51.
