86 Getting Started HP 81110/04A Quick Start
Getting Started
Examples
3. Setting Up a Serial Data Stream Signal
Here a continuous 24 bit long pattern signal with NRZ data output for-
mat at 80 MBit/s and ECL output level will be set up. The pattern is
‘111001110011001001010010’.
1 Before setting up the signal it is recommended to reset all parameters
by pressing .
2 Press the
|MODE/TRG| softkey to enter the Operating/Trigger Mode
menu. Select
CONTINUOUS PATTERN of. Highlight RZ- Pulses at
Out 1
and select NRZ.

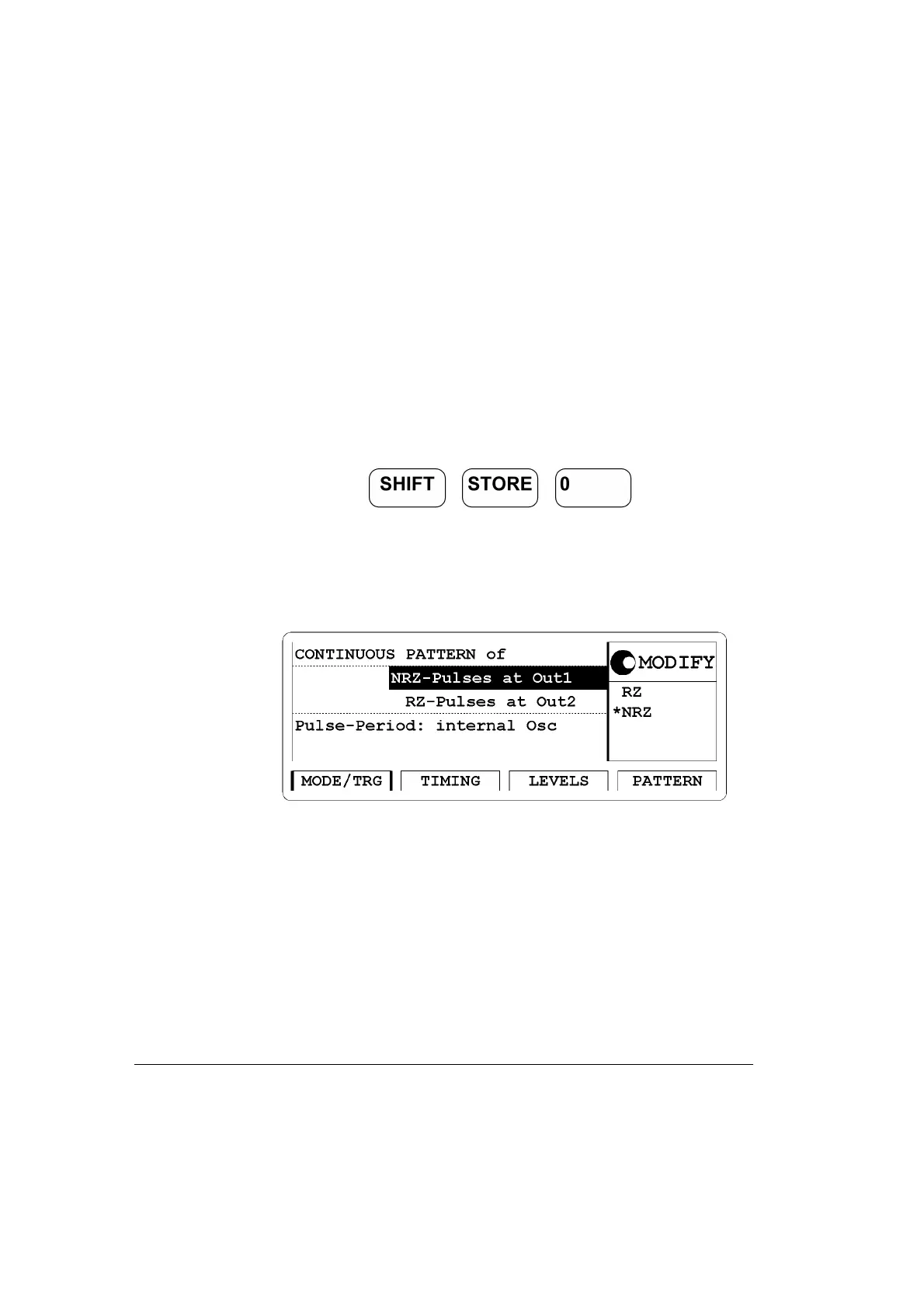

Figure 37 Current MODE/TRG Screen
