1. Setting up a Clock Signal
Here, a continuous clock signal with 50 MHz frequency with PLL accu-
racy, a duty cycle of 50%, 3 ns transition times, a high level of 2.5 V and
low level of 0 V, will be set up.

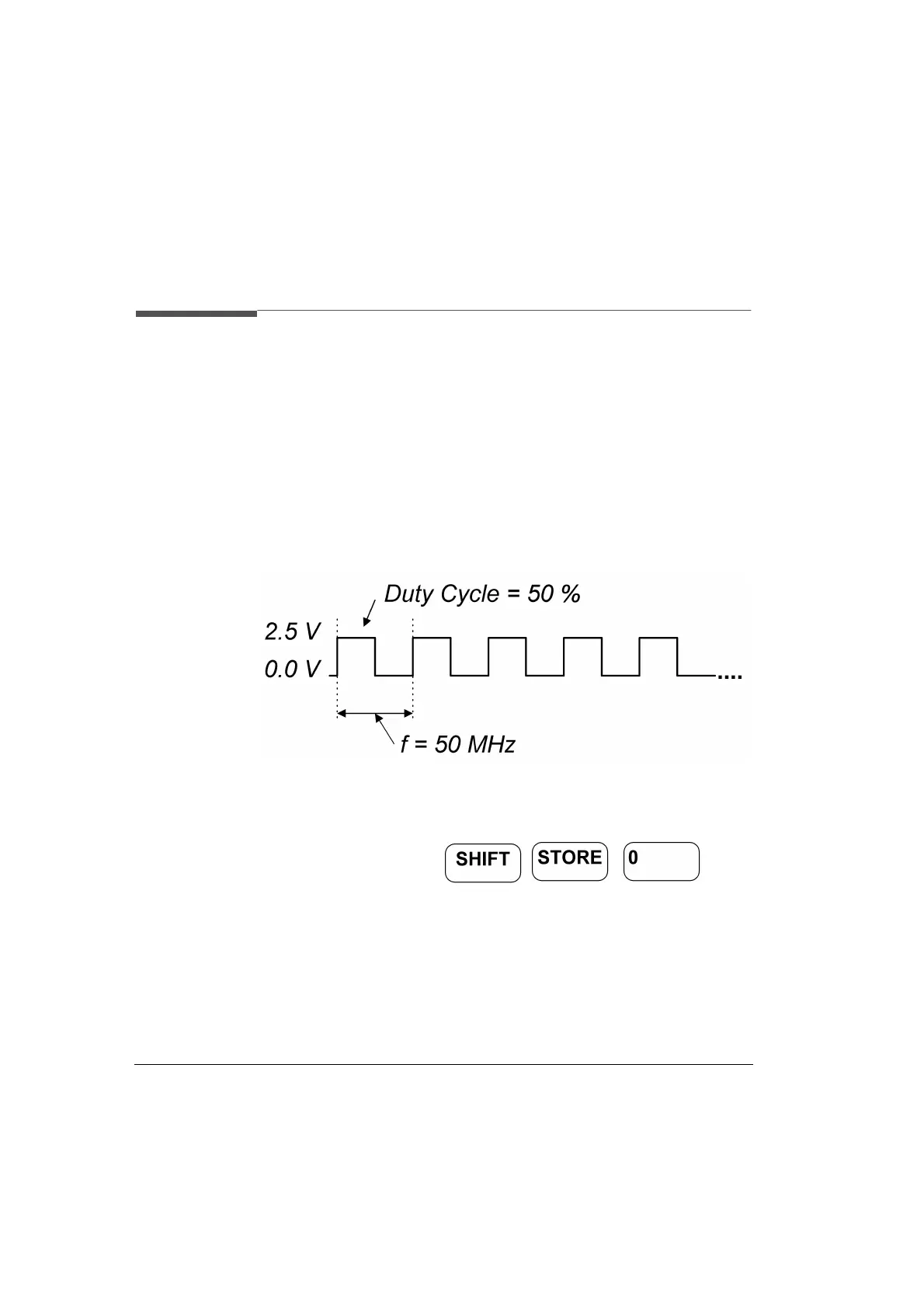

Figure 25 Clock Signal Diagram
1 Before setting up the signal it is recommended to reset all parameters
and modes by pressing .
