Example 3 - Measuring the P
ower of a Modulated Signal

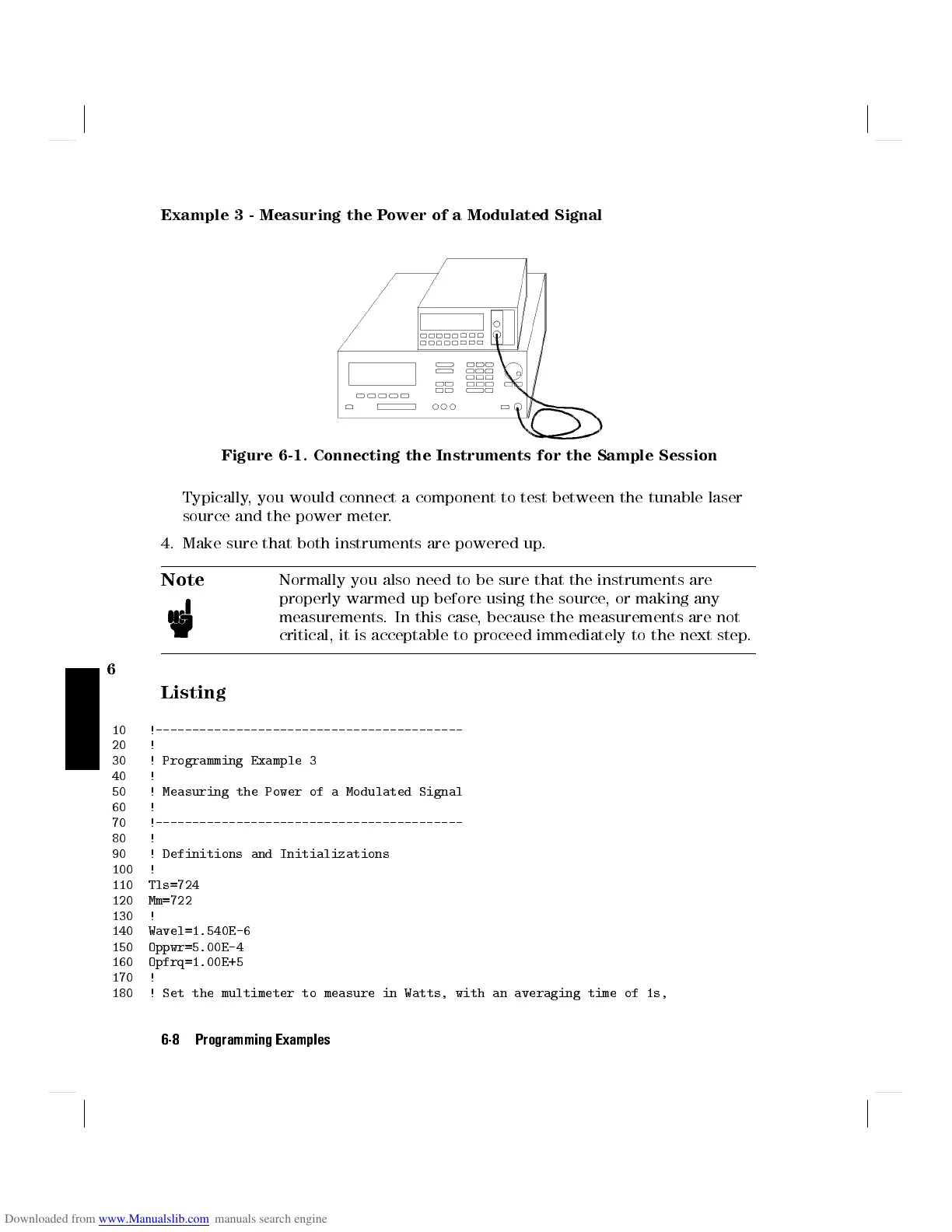

Figure 6-1. Connecting the Instruments for the Sample Session
Typically, you would connect a component to test between the tunable laser
source and the power meter.
4. Make sure that both instruments are powered up.
Note
Normally you also need to be sure that the instruments are
properly warmed up before using the source, or making any
measurements. In this case, because the measurements are not
critical, it is acceptable to proceed immediately to the next step.
Listing
10 !------------------------------------------
20 !
30 ! Programming Example 3
40 !
50 ! Measuring the Power of a Modulated Signal
60 !
70 !------------------------------------------
80 !
90 ! Definitions and Initializations
100 !
110 Tls=724
120 Mm=722
130 !
140 Wavel=1.540E-6
150 Oppwr=5.00E-4
160 Opfrq=1.00E+5
170 !
180 ! Set the multimeter to measure in Watts, with an averaging time of 1s,
6-8 Programming Examples
