A

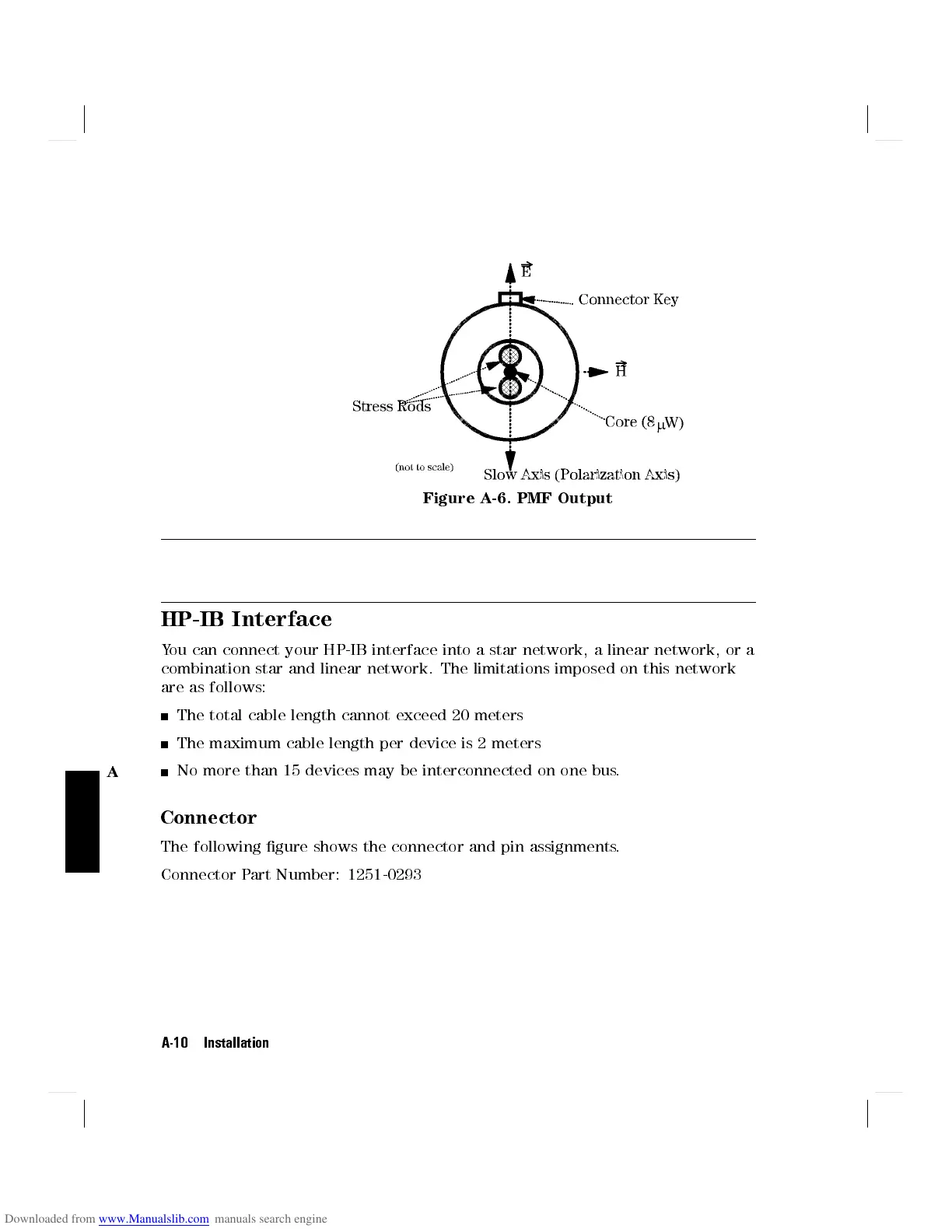

Figure A-6. PMF Output
HP-IB Interface
You can connect your HP-IB interface into a star network, a linear network, or a
combination star and linear network. The limitations imposed on this network
are as follows:
The total cable length cannot exceed 20 meters
The maximum cable length per device is 2 meters
No more than 15 devices may be interconnected on one bus.
Connector
The following gure shows the connector and pin assignments.
Connector Part Number: 1251-0293
A-10 Installation
