B
Option 023 with a Diamond HMS-10/HP/HRL angled, non-contact connector.
Cannot be combined with option 007.
Option 023 is not available for the 8168D.
Option 021, Straight Contact Connector.
If you want to use straight
connectors (such as FC/PC, Diamond HMS-10, DIN, Biconic, SC, ST, or D4) to
connect to the instrument, you must
1. attach your connector interface (see the list of connector interfaces below) to
the interface adapter,
2. then connect your cable.

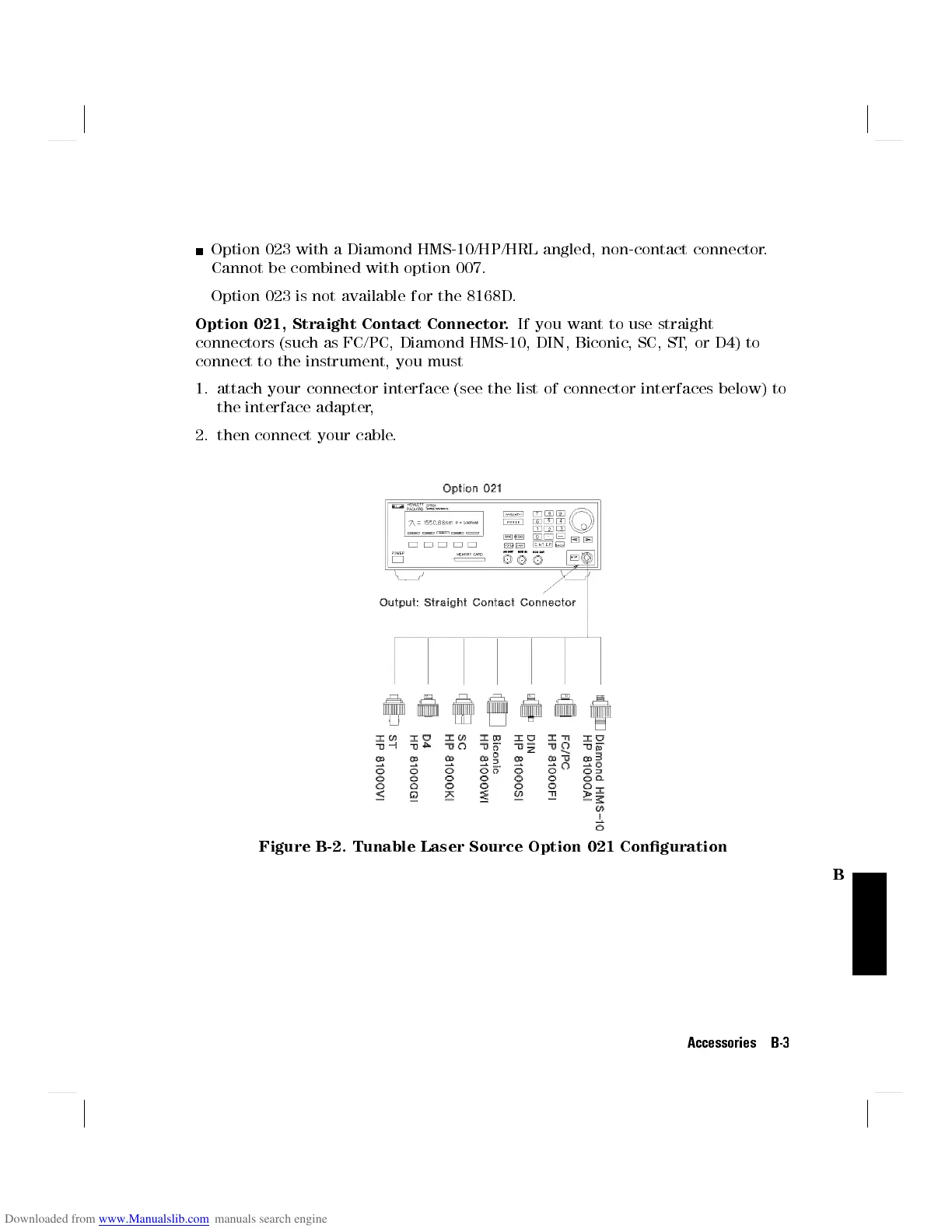

Figure B-2. Tunable Laser Source Option 021 Conguration
Accessories B-3
