D

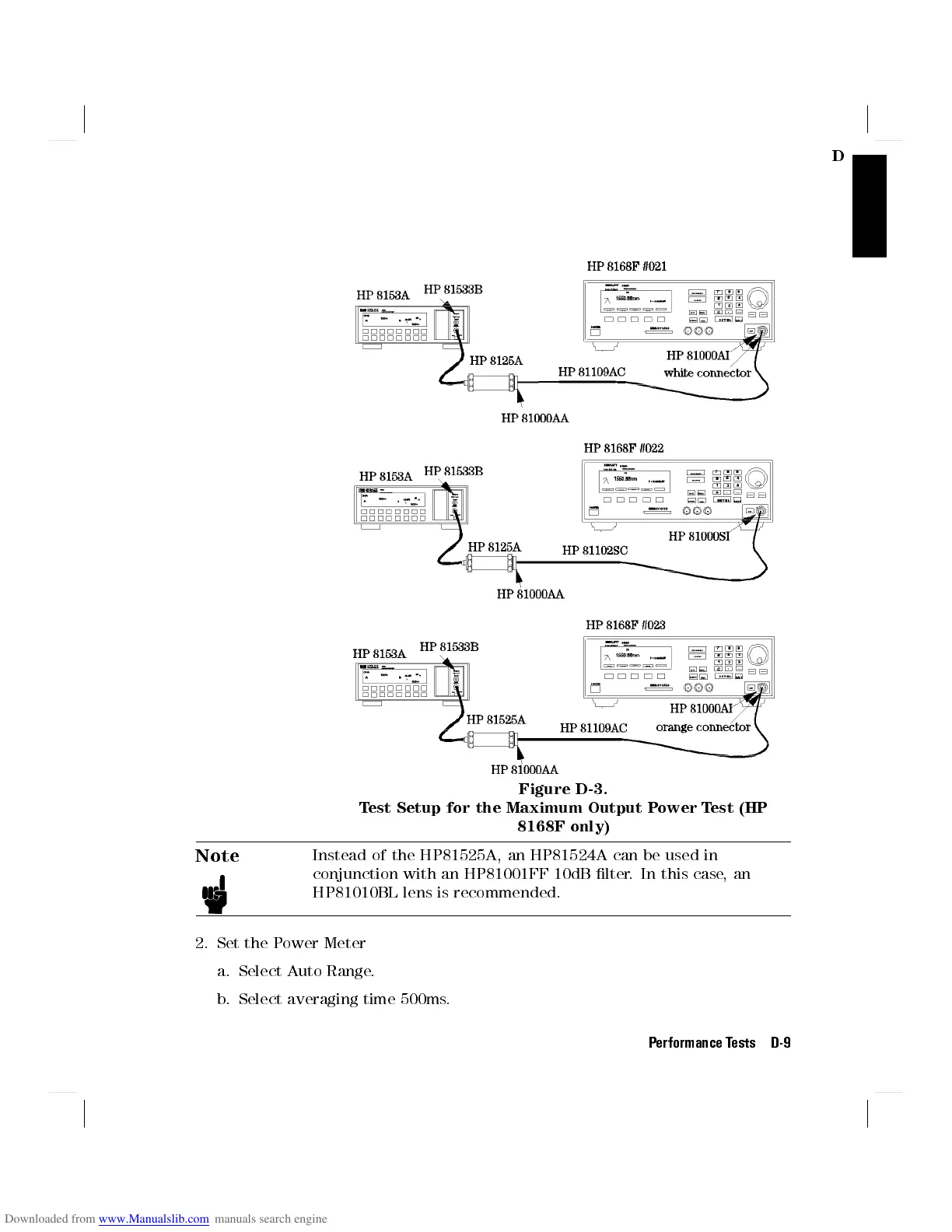

Figure D-3.
Test Setup for the Maximum Output Power Test (HP
8168F only)
Note
Instead of the HP81525A, an HP81524A can be used in
conjunction with an HP81001FF 10dB lter. In this case,an
HP81010BL lens is recommended.
2. Set the Power Meter
a. Select Auto Range.
b. Select averaging time 500ms.
Performance Tests D-9
