D

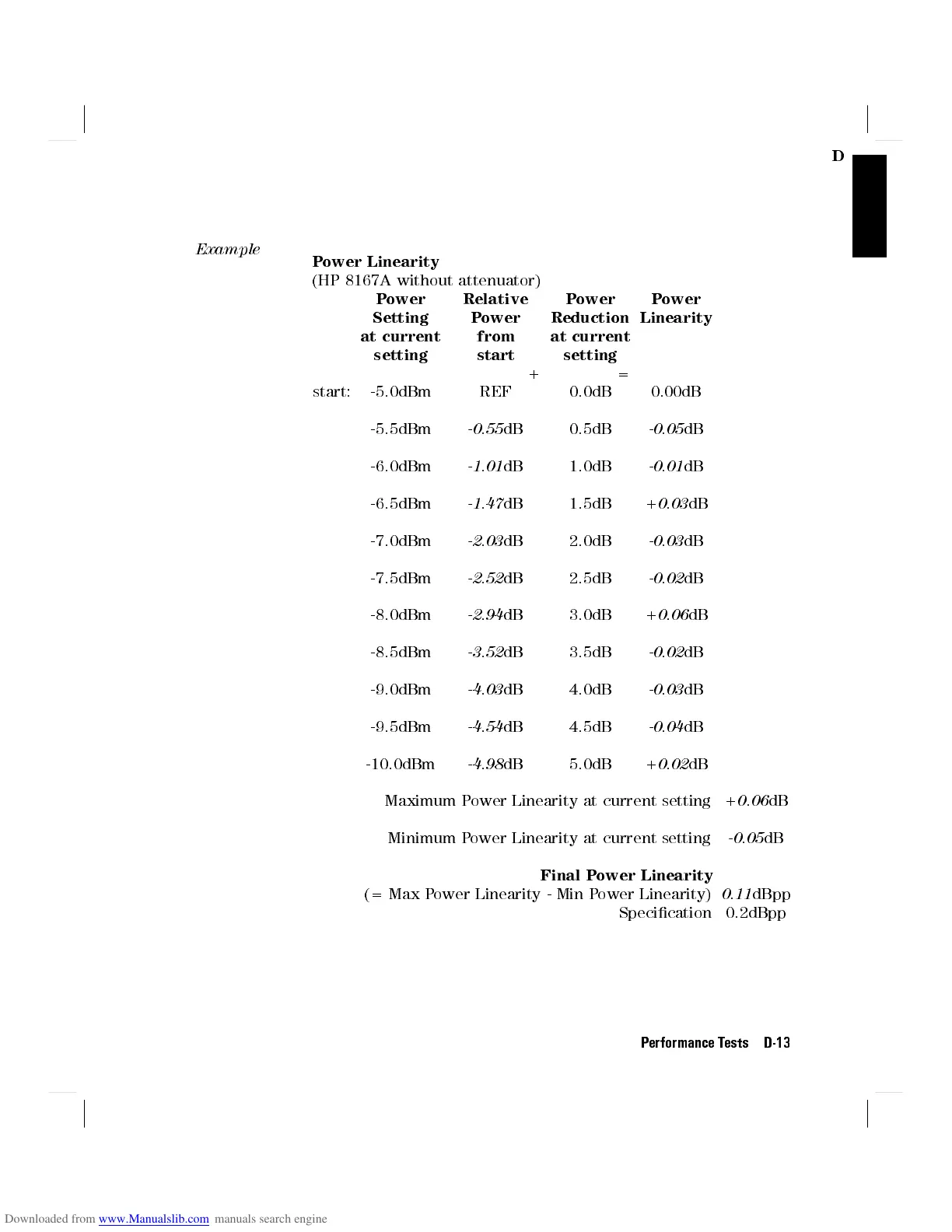

Example
Power Linearity
(HP 8167A without attenuator)
Power Relative Power Power
Setting Power Reduction Linearity
at current from at current
setting start setting
+ =
start: -5.0dBm REF 0.0dB 0.00dB
-5.5dBm -0.55 dB 0.5dB -0.05 dB
-6.0dBm -1.01 dB 1.0dB -0.01 dB
-6.5dBm -1.47 dB 1.5dB +0.03 dB
-7.0dBm -2.03 dB 2.0dB -0.03 dB
-7.5dBm -2.52 dB 2.5dB -0.02 dB
-8.0dBm -2.94 dB 3.0dB +0.06 dB
-8.5dBm -3.52 dB 3.5dB -0.02 dB
-9.0dBm -4.03 dB 4.0dB -0.03 dB
-9.5dBm -4.54 dB 4.5dB -0.04 dB
-10.0dBm -4.98 dB 5.0dB +0.02 dB
Maximum Power Linearity at current setting +0.06 dB
Minimum Power Linearity at current setting -0.05 dB
Final Power Linearity
(= Max Power Linearity - Min Power Linearity) 0.11 dBpp
Specication 0.2dBpp
Performance Tests D-13
